CAN to Ethernet Converter(BUE-CANET-I & BUE-CANET-II)

1.1 Product Overview

Our CAN to Ethernet(TCP/IP) converter is an intelligent CAN bus communication interface that is compatible with TCP/IP protocol and supports one or two CAN channel. Using this module will enable PC to connect to CAN-bus network via USB bus, forming the CAN-bus network control nodes for the data processing and data collection for the CAN-bus networks such as bus laboratory, industrial control, intelligent residential zone, auto electronics network, and etc.

CAN  to Ethernet gateway comes with an electrical isolation module, which could be used to avoid the damage caused by the ground loop and enhance the system reliability when working under a tough environment.

Our CAN  to Ethernet converter can use our Tester software provided by us to directly finish CAN Bus message sending, and receiving.

1.2 Parameters

• Application as Ethernet based interface to the CAN bus Microcontroller STR912FAW44X6(ARM9 Based) Ethernet 10M/100M
• Baud rates up to 1MB & 7500 frames.
• CAN 2.0A (11-bit ID standard frames) and 2.0B (29-bit ID extended frames) Config software available through the Ethernet interface.
• Comply with ISO-11898.
• Examples of Visual C++, C++Builder are available; Max data flow 6000PS (extend frame)
• Operating temperature: -20 to +70
• Physical size: (length) 105mm * (width) 84mm * (height) 28mm. Powered by DC (7 to 40V)
• Can Bus port number: 1 or 2

1.3 Typical applications

• CAN-bus network diagnosis and test
• Auto electronic applications
• Electric power communication network
• Industrial control devices
• High-speed and large data communications

Ordering Information:

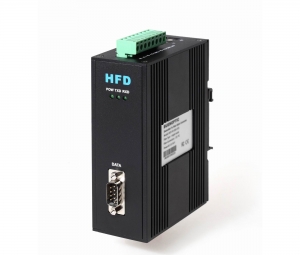

HFD-FO-CAN CAN Over Fiber optic Converter(No Cascading)

Transmission rate:

The HFD-FO-CAN CAN bus to Fiber Converter support all the transmission speeds (transmission rates):0-1Mbps.The transmission rate is set automatically as soon as the canbus HFD-FO-CAN receives a frame. The setting or adjustment is dependent on the transmission rate. The HFD-FO-CAN CAN FO converter is developed out based on the growing market demand for CAN Bus long distance transmission without any cascading(attenuation).The HFD-FO-CAN uses the most advanced new technology in the world,which is the foundation of the high rate transmission(1MB) over more than 20km without any cascading or delay.Thanks to the advanced technology and high performance,the HFD-FO-CAN can be applied in very important projects and harsh places.

Segment monitoring at the optical line:

Each receiver monitors the optical line port connected to it for receceive frames and status. If faulty frames are received by the receiver, or no single for longer than the maximum permitted time, forwarding of the received signals is blocked until the port status is OK,frames can be received again correctly.

Network Topologies:

The following network topologies can be realized with the HFD-FO-CAN:

Point-to-point topologies Multi-drop Bus

Fiber Mode: Single mode or Multi Mode

Feature and benefits:

Buffer function:The HFD-FO-CAN CAN Bus Fiber Optic Converter can protect the data from being lost.The isolation inside the HFD can ensure the converters work normally under harsh environments.Anti-stream function,Buffering: 1000 frames.No cascading: The HFD-FO-CAN has no cascading,no frame loss when data is at high rate or long distance transmission.

Reliablity: Compared with other brands,the HFD-FO-CAN can help build up more stable and secure networks,it can maximumly reach 6500 frames/S.

Other Specs:

Limit class B (EN 55022)

EN 61000-4-2

EN 61000-4-3)

Burst:     On power supply lines and shielded RS 485 bus lines: ±2 kV (EN 61000-4-4)

Surge:  Power lines: ±1 kV symmetrical,Shielded RS 485 lines: ±2 kV asymmetrical (EN 61000-4-5)

Application: The HFD-FO-CAN CAN Bus to Fiber Optic converter can be used in fire alarm system,radar system,security,industrial automation,solar palnt and other industrial fields.

Odering Information:

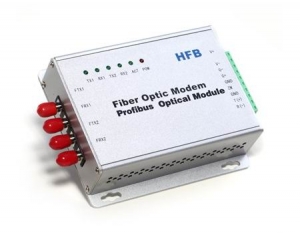

Profibus Redundant Ring Fiber Optic Converter(Modem)

Redundant Ring Profibus to Fiber Optic Converter(Modem)

The Profibus Redunant Ring Multi-Drop Self-Healing Ring Transmission series products provide an optical self-healing ring network for Profibus data interfaces over two multimode or singlemode optical fibers. The system offers maximum reliability as it can recover simultaneous faults or failures in two different locations and has contact closure outputs on each module to clearly indicate any fault location. The self-healing ring consists of two opposing data paths, ring A and ring B. Under normal operation only the primary path (ring A) is used for data transfer. If a fault is detected, the data is transferred to the secondary path (ring B) without interruption to the communications network.
The series is available in wall mount, DIN rail or 3U chassis card. Redundant Dual power supply as the option.

Product Features:

Multi mode and single mode solutions
Contact closure alarm outputs per station
Single or dual fibre configurations
Wall mount, DIN rail and 3U chassis card

Other Specs:

Ordering information:

Profibus DP Multi-Drop Bus Fiber Optic Converter(OLM)

Product Description

The Profibus Multi-Drop Bus Fiber Optic Modem series products provide an optical bus network for Profibus, data interfaces over a pair of multimode or singlemode optical fibers. The Terminal module units operate as the end or terminal points and provide an electrical connection and a two fibre optical connection. The Repeater module units act as in-line repeater stations and provide a single electrical connection and two optical connections, one upstream and one downstream.
This series is available in either wall mount, DIN rail or 3U chassis card configurations.

Product Features

Up to 1.5Mbps data rate

Multi mode and single mode

Single fiber solution

Wall mount, rack or chassis configurations

Technical Specifications:

Odering information:

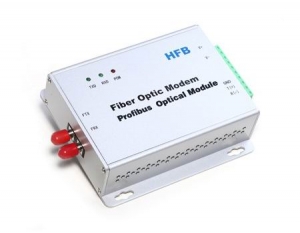

Profibus DP to Fiber Optic Converter

Profibus OLM (G11/12) Point to Point / Multi-drop Bus / Self-healing Ring

Product Description

The HFB-FO-PRO data series uses the most advanced digital technologies to provide excellent repeatable performance for today's data systems. It supports transmission of one bi-directional data channel over one multimode or singlemode optical fiber. Profibus standards are fully supported. The plug-and-play design ensures ease of installation with no electrical or optical adjustment needed. LED indicators are provided to show the operational status of the unit clearly.
The series is available in compact wall mount or 3U chassis card.

The profibus Series converter is equipped with a multiple interface circuit that can handle profibus serial interfaces and multi-mode or single- mode fiber. Profibus converters are used to extend serial transmission distance up to 2 km (multi-mode fiber) or up to 20-100km (single- mode fiber)...Auto Baud Rate DetectionThe profibus Series incorporates a method for automatically detecting the serial signal baud rate by hardware. This is an extremely convenient feature for the user. Even if a device's baud rate is changed, the signal will still be transmitted through the Profibus to fiber converter without any problem.

Product Features

Up to 1.5 to 12Mbps data rate

Multi mode and single mode

Single fiber solution

Wall mount, rack or chassis configurations

Technical Specifications:

Ordering information:

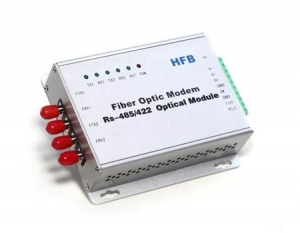

RS-485 Multi-Drop Self-Healing Ring Fiber Optic Modem

Description

The HFB-FO-485 Multi-Drop Self-Healing Ring Transmission series products provide an optical self-healing ring network for RS232, RS422 /RS485 data interfaces over two multimode or single mode optical fibers. The system offers maximum reliability as it can recover simultaneous faults or failures in two different locations and has contact closure outputs on each module to clearly indicate any fault location. The self-healing ring consists of two opposing data paths, ring A and ring B. Under normal operation only the primary path (ring A) is used for data transfer. If a fault is detected, the data is transferred to the secondary path (ring B) without interruption to the communications network.
The series is available in wall mount, DIN rail or 3U chassis card.

Product Features
Supports RS232, RS422 and RS485(Modbus)
Multi mode and single mode solutions
Contact closure alarm outputs per station
Single or dual fibre configurations
Wall mount, DIN rail and 3U chassis card

 Specifications:

Ordering information:

RS-485(Modbus) Multi-Drop Bus Fiber Optic converter

The RS-485 Multi-Drop Bus Fiber Optic Modem series products provide an optical bus network for RS-232, RS-422 or RS-485 data interfaces over a pair of multimode or singlemode optical fibers. The Terminal module units operate as the end or terminal points and provide an electrical connection and a two fibre optical connection. The Repeater module units act as in-line repeater stations and provide a single electrical connection and two optical connections, one upstream and one downstream.
This series is available in either wall mount, DIN rail or 3U chassis card configurations.

Product Features
Multi protocol data interface
Switchable termination and biasing
Multimode and singlemode
Wall mount, DIN and 3U chassis card

Technical Specifications:

Odering information:

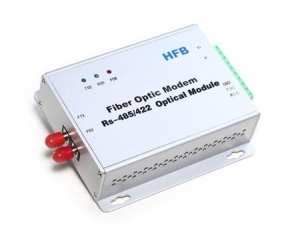

RS-485 Modbus Fiber Optic Converter

Point to point/Multi-drop Bus/Self-healing Ring Fiber Links

The RS-485 Fiber Optic Converter data series uses the most advanced digital technologies to provide excellent repeatable performance for today's data systems. It supports transmission of one bi-directional data channel over one multimode or singlemode optical fiber. RS232, RS422 and RS485 (2 wire & 4 wire) standards are fully supported. The plug-and-play design ensures ease of installation with no electrical or optical adjustment needed. LED indicators are provided to show the operational status of the unit clearly.
The series is available in compact wall mount or 3U chassis card.

The RS-485 Series converter is equipped with a multiple interface circuit that can handle RS-485 serial interfaces and multi-mode or single- mode fiber. RS-485 converters are used to extend serial transmission distance up to 2 km (multi-mode fiber) or up to 20-100km (single- mode fiber)...Auto Baud Rate DetectionThe RS-485 Series incorporates a method for automatically detecting the serial signal baud rate by hardware. This is an extremely convenient feature for the user. Even if a device's baud rate is changed, the signal will still be transmitted through the RS-485 to fiber converter without any problem.

Product Features
Supports RS232, RS422 and RS485(Modbus)
Multimode and singlemode solutions
Switchable 120Ω Termination and biasing
LED indicators provide quick diagnosis of all important system parameters
Up to 14 units in a 3U chassis
Compact and 3U chassis card configuration

Specifications:

Ordering Information:

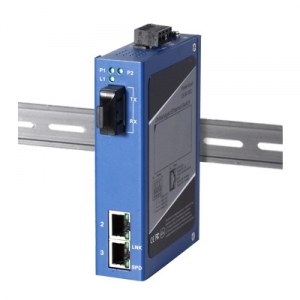

Gigabit Industrial Media Converter

Model Number: HFD-FO-1000M

The HFD Series 10/100/1000M Auto-Sensing Ethernet fiber media converter is designed using advanced fiber optic technology. This series transmit and receive 10/100/1000 Mbps (no adjustment is required) data over two single-mode optical fibers, extending the Ethernet transmission distance from its normal few hundred meters to 0-120 kilometers. By using optical fiber as transmission media, this series continue to perform its secured, high-speed and long-distance communication even under the adverse condition such as lighting, power surge and electromagnetic interference; Substantial saving on lighting and power surge protection equipments if copper wires were used.

Technical Specifications:

Ordering Information:

Industrial Media Converter(10/100M)

Model Number: HFD-FO-100M

The HFD Series 10/100M Auto-Sensing Ethernet Fiber Optic Converter is designed using advanced fiber optic technology. This series transmit and receive 10/100 Mbps (no adjustment is required) data over two single-mode optical fibers, extending the Ethernet transmission distance from its normal few hundred meters to 0-120 kilometers. By using optical fiber as transmission media, this series continue to perform its secured, high-speed and long-distance communication even under the adverse condition such as lighting, power surge and electromagnetic interference; Substantial saving on lighting and power surge protection equipments if copper wires were used.

The HFD Series Industrial media converter is fully assembled using SMT components for stability and reliability.The HFD-FO-100M Fiber Media Converter supports the CC Link Porotol.

Technical Specification:

Odering Information:
