Profibus DP Multi-Drop Bus Fiber Optic Converter(OLM)
Product Description

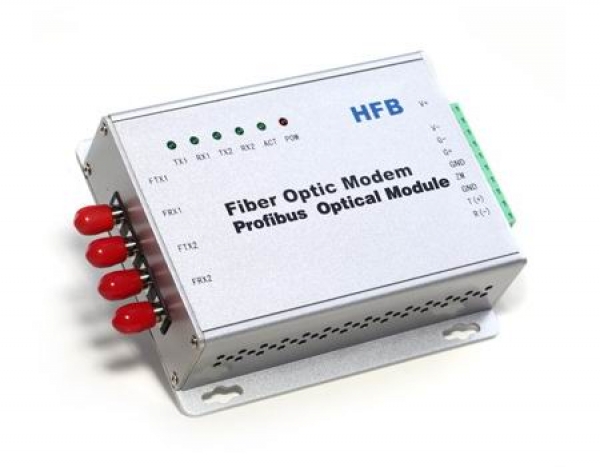

The Profibus Multi-Drop Bus Fiber Optic Modem series products provide an optical bus network for Profibus, data interfaces over a pair of multimode or singlemode optical fibers. The Terminal module units operate as the end or terminal points and provide an electrical connection and a two fibre optical connection. The Repeater module units act as in-line repeater stations and provide a single electrical connection and two optical connections, one upstream and one downstream.
This series is available in either wall mount, DIN rail or 3U chassis card configurations.
Product Features
Up to 1.5Mbps data rate
Multi mode and single mode
Single fiber solution
Wall mount, rack or chassis configurations
Technical Specifications:
| Data | |
| Data Formats | Siemens Profibus RS-485 |
| Profibus Data Rate | 0~1.5Mbps/3Mbps/6Mbps/12Mbps for Options |
| Bit Error Rate | <1 x 10-12 |
| Connectors | |
| Data | Screw Block Terminal |
| Fiber | ST, SC or FC (ST fitted as standard) |
| Environmental | |
| Operating Temperat ure | - 3 0 C--- +70 C |
| Storage Temperature | - 40 C--- +85 C |
| Operating Humidity | 0- 95% |
| MTBF | >100,000 Hours |
| Optical | |
| Fiber | Multi mode or Single mode |
| Wavelength | MM: 850nm, SM: 1310nm |
| Number of fibers | 4 or 2 |
| POWER | |
| Power Input | AC 220V 110v or DC+110V +5V +12V +24V +48V Option |
| Mechanical | |
| Dimensions | 125(L)×110(W)×36(H )Wall Mount & DIN Rail |
Odering information:
|
Model Number |
Description |
Fiber No. |
Fiber Mode |
Fiber Connector |
|
HFB-FO-PRO-M2M |
Multi drop bus Link,Dual Fiber(BI-DI), 2km |
2 |
Multi Mode |
ST/SC/FC |
|
HFB-FO-PRO-M4M |
Multi drop bus Link,4 Fiber, 2km |
4 |
Multi Mode |
ST/SC/FC |
|
HFB-FO-PRO-M2S |
Multi drop bus Link,Dual Fiber(BI-DI), 20km |
2 |
Single Mode |
ST/SC/FC |
|
HFB-FO-PRO-M4S |
Multi drop bus Link,4 Fiber, 20km |
4 |
Single Mode |
ST/SC/FC |
