Monday, 01 February 2016 15:01

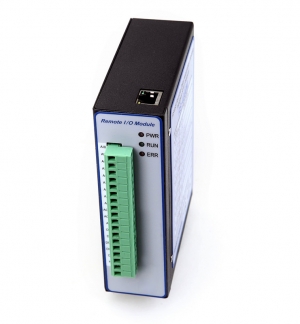

Ethernet I/O Module(5xRelay Output 3xForm A+2xForm C)

Ethernet I/O Module(5xRelay Output 3xForm A+2xForm C)

Ethernet I/O Module with 5-ch Relay Output(3xForm A+2xForm C)

Ethernet(Modbus TCP) Data Acquisition Module(5 Relay Output,3xForm A+2xForm C)

Product Introduction (NET-6000M Series)

NET-6000M Ethernet-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With Ethernet-based technology, NET-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the NET-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.

Product feature and benefits:

  • 32 bits & 120M high speed CPU, the real time embedded OS.
  • DI can read more than 600 times/second.
  • Optocoupler isolation: Digital Input and Output.
  • Power or dual power(Analogue Modules): Independent isolation
  • Surge protection: 15KV
  • The analogue input: Magnetic coupling isolation and protection.
  • The input voltage can be positive and negative, each channel has TVS and ESD protection.
  • The measuring range can be shifted by software.
  • The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
  • The ID and baud rate can be adjusted by rotary button directly.
  • Enclosure: shielded metal
  • The differential sampling frequency can reach 50Hz/channel

Hardware Specification:

System
CPU 32-bit 120MIPS CPU
Operation System Real-Time
Watchdog Yes
Communication RS-6000M CAN-6000T NET-6000M
RS485 CAN

Ethernet

10/100 Base-TX
LED Display
Power Indicator Red
Run Indicator Green
Error Indicator Red
Link Indicator Green
Act Indicator Yellow
Mechanical

Dimensions

(W x H x D)(mm)

 140*110*40
Installation DIN-Rail mounting
Environment
Operating Temperature -20℃～+70℃
Storage Temperature -30℃～+80℃
Power Requirements
Power Input +9V～30V DC
Power Consumption <3W

I/O Specification:

Model NET-6014M NET-6015M
Relay Output
Output Channels 5 5
Output Type Power Relay, Form A(SPST) Power Relay, 3-ch Form A(SPST), 2-ch Form C(SPDT)
Output Voltage 250VAC /30VDC
Max Load Current 3.0A/channel
Operate Time 6ms
Release Time 3ms
Electrical Life

At 30 VDC / 3 A Typical 1 x 105 operations

(Operating frequency 20 operations/minute)

At 250 VAC/ 3 A Typical 1 x 105operations

(Operating frequency 20 operations/minute)
Mechanical Life 2x107
Isolation 3750Vrms

Ordering Information:

Model Description
Digital I/O
NET-6011M Ethernet Remote I/O Module with16-ch DI
NET-6012M Ethernet Remote I/O Module with16-ch DO
NET-6013M Ethernet Remote I/O Module with 8-ch DI and 8-ch DO
Relay Output
NET-6014M Ethernet Remote I/O Module with 5-ch Relay(Form A)
NET-6015M Ethernet Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C)
Analog Input
NET-6021M Ethernet Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI
NET-6022M Ethernet Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI
Analog Output
NET-6031M Ethernet Remote I/O Module with 12bit 4-ch AO
NET-6032M Ethernet Remote I/O Module with 16bit 4-ch AO
RTD
NET-6041M Ethernet Remote I/O Module with 5-ch RTD
Thermocouple
NET-6042M Ethernet Remote I/O Module with 5-ch TC
Mixed
NET-6088 Ethernet Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO
Published in Ethernet I/O Module
Tagged under
Read more...
Monday, 01 February 2016 14:43

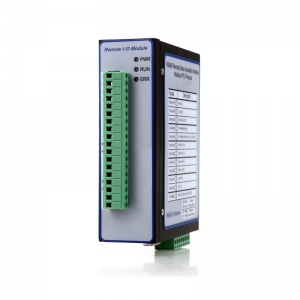

Ethernet I/O Module(5xRelay Output Form A)

Ethernet I/O Module(5xRelay Output Form A)

Ethernet Remote I/O Module with 5-ch Relay Output(Form A)

Ethernet(Modbus TCP) Data Acquisition Module(5 Form A Relay Output)

Product Introduction (NET-6000M Series)

NET-6000M Ethernet-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With Ethernet-based technology, NET-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the NET-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.

Product feature and benefits:

  • 32 bits & 120M high speed CPU, the real time embedded OS.
  • Power or dual power(Analogue Modules): Independent isolation
  • Surge protection: 15KV
  • The analogue input: Magnetic coupling isolation and protection.
  • The input voltage can be positive and negative, each channel has TVS and ESD protection.
  • The measuring range can be shifted by software.
  • The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
  • The ID and baud rate can be adjusted by rotary button directly.
  • Enclosure: shielded metal
  • The differential sampling frequency can reach 50Hz/channel

Hardware Specification:

System
CPU 32-bit 120MIPS CPU
Operation System Real-Time
Watchdog Yes
Communication RS-6000M CAN-6000T NET-6000M
RS485 CAN

Ethernet

10/100 Base-TX
LED Display
Power Indicator Red
Run Indicator Green
Error Indicator Red
Link Indicator Green
Act Indicator Yellow
Mechanical

Dimensions

(W x H x D)(mm)

 140*110*40
Installation DIN-Rail mounting
Environment
Operating Temperature -20℃～+70℃
Storage Temperature -30℃～+80℃
Power Requirements
Power Input +9V～30V DC
Power Consumption <3W

I/O Specification:

Model NET-6014M NET-6015M
Relay Output
Output Channels 5 5
Output Type Power Relay, Form A(SPST) Power Relay, 3-ch Form A(SPST), 2-ch Form C(SPDT)
Output Voltage 250VAC /30VDC
Max Load Current 3.0A/channel
Operate Time 6ms
Release Time 3ms
Electrical Life

At 30 VDC / 3 A Typical 1 x 105 operations

(Operating frequency 20 operations/minute)

At 250 VAC/ 3 A Typical 1 x 105operations

(Operating frequency 20 operations/minute)
Mechanical Life 2x107
Isolation 3750Vrms

Ordering Information:

Model Description
Digital I/O
NET-6011M Ethernet Remote I/O Module with16-ch DI
NET-6012M Ethernet Remote I/O Module with16-ch DO
NET-6013M Ethernet Remote I/O Module with 8-ch DI and 8-ch DO
Relay Output
NET-6014M Ethernet Remote I/O Module with 5-ch Relay(Form A)
NET-6015M Ethernet Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C)
Analog Input
NET-6021M Ethernet Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI
NET-6022M Ethernet Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI
Analog Output
NET-6031M Ethernet Remote I/O Module with 12bit 4-ch AO
NET-6032M Ethernet Remote I/O Module with 16bit 4-ch AO
RTD
NET-6041M Ethernet Remote I/O Module with 5-ch RTD
Thermocouple
NET-6042M Ethernet Remote I/O Module with 5-ch TC
Mixed
NET-6088 Ethernet Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO

Published in Ethernet I/O Module
Tagged under
Read more...
Monday, 01 February 2016 14:33

Ethernet Remote I/O Module(8xDI+8xDO)

Ethernet Remote I/O Module(8xDI+8xDO)

Ethernet Remote I/O Module(8-ch Digital Input(DI)+8-ch Digital Output(DO)

Ethernet(Modbus TCP) Data Acquisition Module(8 DI+8 DO)

NET-6000M Ethernet-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With Ethernet-based technology, NET-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the NET-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.

Product feature and benefits:

  • 32 bits & 120M high speed CPU, the real time embedded OS.
  • DI can read more than 600 times/second.
  • Optocoupler isolation: Digital Input and Output.
  • Surge protection: 15KV
  • The input voltage can be positive and negative, each channel has TVS and ESD protection.
  • The measuring range can be shifted by software.
  • The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
  • The ID and baud rate can be adjusted by rotary button directly.
  • Enclosure: shielded metal
  • The differential sampling frequency can reach 50Hz/channel

Hardware Specification:

System
CPU 32-bit 120MIPS CPU
Operation System Real-Time
Watchdog Yes
Communication RS-6000M CAN-6000T NET-6000M
RS485 CAN

Ethernet

10/100 Base-TX
LED Display
Power Indicator Red
Run Indicator Green
Error Indicator Red
Link Indicator Green
Act Indicator Yellow
Mechanical

Dimensions

(W x H x D)(mm)

 140*110*40
Installation DIN-Rail mounting
Environment
Operating Temperature -20℃～+70℃
Storage Temperature -30℃～+80℃
Power Requirements
Power Input +9V～30V DC
Power Consumption <3W

I/O Description:

Model NET-6011M NET-6012M NET-6013M
Digital Input
Input Channels 16 8
Input Type Dry Contact Wet Contact Dry Contact Wet Contact
On Voltage Level Close to GND 0V～1V DC Close to GND 0V～1V DC
Off Voltage Level Open 3V～50V DC Open 3V～50V DC
Overvoltage Protection +70V +70V
Isolation 3750Vrms 3750Vrms
Digital Output
Output Channels 16 8
Output Type Sink, Open Collector(NPN) Sink, Open Collector(NPN)
Load Voltage Max 50V DC Max 50V DC
Max Load Current 500mA/channel 500mA/channel
Isolation 3750Vrms 3750Vrms

Ordering Information:

Model Description
Digital I/O
NET-6011M Ethernet Remote I/O Module with16-ch DI
NET-6012M Ethernet Remote I/O Module with16-ch DO
NET-6013M Ethernet Remote I/O Module with 8-ch DI and 8-ch DO
Relay Output
NET-6014M Ethernet Remote I/O Module with 5-ch Relay(Form A)
NET-6015M Ethernet Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C)
Analog Input
NET-6021M Ethernet Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI
NET-6022M Ethernet Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI
Analog Output
NET-6031M Ethernet Remote I/O Module with 12bit 4-ch AO
NET-6032M Ethernet Remote I/O Module with 16bit 4-ch AO
RTD
NET-6041M Ethernet Remote I/O Module with 5-ch RTD
Thermocouple
NET-6042M Ethernet Remote I/O Module with 5-ch TC
Mixed
NET-6088 Ethernet Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO
Published in Ethernet I/O Module
Tagged under
Read more...
Monday, 01 February 2016 14:30

Ethernet Remote I/O Module(16 Digital Output)

Ethernet Remote I/O Module(16 Digital Output)

Ethernet  IO Module with16-ch Digital Output(DO)

Ethernet(Modbus TCP) Data Acquisition Module(16 DO)

Product Introduction (NET-6000M Series)

NET-6000M Ethernet-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With Ethernet-based technology, NET-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the NET-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.

Product feature and benefits:

  • Optocoupler isolation: Digital Input and Output.
  • Surge protection: 15KV
  • The input voltage can be positive and negative, each channel has TVS and ESD protection.
  • The measuring range can be shifted by software.
  • The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
  • The ID and baud rate can be adjusted by rotary button directly.
  • Enclosure: shielded metal
  • The differential sampling frequency can reach 50Hz/channel

Hardware Specification:

System
CPU 32-bit 120MIPS CPU
Operation System Real-Time
Watchdog Yes
Communication RS-6000M CAN-6000T NET-6000M
RS485 CAN

Ethernet

10/100 Base-TX
LED Display
Power Indicator Red
Run Indicator Green
Error Indicator Red
Link Indicator Green
Act Indicator Yellow
Mechanical

Dimensions

(W x H x D)(mm)

 140*110*40
Installation DIN-Rail mounting
Environment
Operating Temperature -20℃～+70℃
Storage Temperature -30℃～+80℃
Power Requirements
Power Input +9V～30V DC
Power Consumption <3W

I/O Specification:

Model NET-6011M NET-6012M NET-6013M
Digital Input
Input Channels 16 8
Input Type Dry Contact Wet Contact Dry Contact Wet Contact
On Voltage Level Close to GND 0V～1V DC Close to GND 0V～1V DC
Off Voltage Level Open 3V～50V DC Open 3V～50V DC
Overvoltage Protection +70V +70V
Isolation 3750Vrms 3750Vrms
Digital Output
Output Channels 16 8
Output Type Sink, Open Collector(NPN) Sink, Open Collector(NPN)
Load Voltage Max 50V DC Max 50V DC
Max Load Current 500mA/channel 500mA/channel
Isolation 3750Vrms 3750Vrms

Ordering Information:

Model Description
Digital I/O
NET-6011M Ethernet Remote I/O Module with16-ch DI
NET-6012M Ethernet Remote I/O Module with16-ch DO
NET-6013M Ethernet Remote I/O Module with 8-ch DI and 8-ch DO
Relay Output
NET-6014M Ethernet Remote I/O Module with 5-ch Relay(Form A)
NET-6015M Ethernet Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C)
Analog Input
NET-6021M Ethernet Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI
NET-6022M Ethernet Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI
Analog Output
NET-6031M Ethernet Remote I/O Module with 12bit 4-ch AO
NET-6032M Ethernet Remote I/O Module with 16bit 4-ch AO
RTD
NET-6041M Ethernet Remote I/O Module with 5-ch RTD
Thermocouple
NET-6042M Ethernet Remote I/O Module with 5-ch TC
Mixed
NET-6088 Ethernet Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO

Published in Ethernet I/O Module
Tagged under
Read more...
Monday, 01 February 2016 14:25

Ethernet Remote I/O Module(16 Digital Input)

Ethernet Remote I/O Module(16 Digital Input)

Ethernet I/O Module with16-ch Digital Input(DI)

Ethernet(Modbus TCP) Data Acquisition Module,16 Channels of Digital Input

NET-6000M Ethernet-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With Ethernet-based technology, NET-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the NET-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.

Feature and Benefit: Our DI can read more than 600 times per second.

Product feature and benefits:

  • 32 bits & 120M high speed CPU, the real time embedded OS.
  • DI can read more than 600 times/second.
  • Surge protection: 15KV
  • The input voltage can be positive and negative, each channel has TVS and ESD protection.
  • The measuring range can be shifted by software.
  • The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
  • The ID and baud rate can be adjusted by rotary button directly.
  • Enclosure: shielded metal
  • The differential sampling frequency can reach 50Hz/channel

Hardware Specification:

System
CPU 32-bit 120MIPS CPU
Operation System Real-Time
Watchdog Yes
Communication RS-6000M CAN-6000T NET-6000M
  RS485 CAN

Ethernet

10/100 Base-TX
LED Display
Power Indicator Red
Run Indicator Green
Error Indicator Red
Link Indicator Green
Act Indicator Yellow
Mechanical

Dimensions

(W x H x D)(mm)

 140*110*40
Installation DIN-Rail mounting
Environment
Operating Temperature -20℃～+70℃
Storage Temperature -30℃～+80℃
Power Requirements
Power Input +9V～30V DC
Power Consumption <3W

I/O Specification:

Model NET-6011M NET-6012M NET-6013M
Digital Input
Input Channels 16 8
Input Type Dry Contact Wet Contact Dry Contact Wet Contact
On Voltage Level Close to GND 0V～1V DC Close to GND 0V～1V DC
Off Voltage Level Open 3V～50V DC Open 3V～50V DC
Overvoltage Protection +70V +70V
Isolation 3750Vrms 3750Vrms
Digital Output
Output Channels 16 8
Output Type Sink, Open Collector(NPN) Sink, Open Collector(NPN)
Load Voltage Max 50V DC Max 50V DC
Max Load Current 500mA/channel 500mA/channel
Isolation 3750Vrms 3750Vrms



Ordering Information:

Model Description
Digital I/O
NET-6011M Ethernet Remote I/O Module with16-ch DI
NET-6012M Ethernet Remote I/O Module with16-ch DO
NET-6013M Ethernet Remote I/O Module with 8-ch DI and 8-ch DO
Relay Output
NET-6014M Ethernet Remote I/O Module with 5-ch Relay(Form A)
NET-6015M Ethernet Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C)
Analog Input
NET-6021M Ethernet Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI
NET-6022M Ethernet Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI
Analog Output
NET-6031M Ethernet Remote I/O Module with 12bit 4-ch AO
NET-6032M Ethernet Remote I/O Module with 16bit 4-ch AO
RTD
NET-6041M Ethernet Remote I/O Module with 5-ch RTD
Thermocouple
NET-6042M Ethernet Remote I/O Module with 5-ch TC
Mixed
NET-6088 Ethernet Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO
Published in Ethernet I/O Module
Tagged under
Read more...
Monday, 01 February 2016 14:13

RS-485 I/O Module(16 bit 8xSingle End AI(or 4xDifferential AI)+12bit 4xAI+2xDI+2xDO)

RS-485 I/O Module(16 bit 8xSingle End AI(or 4xDifferential AI)+12bit 4xAI+2xDI+2xDO)

RS-485 I/O Module(16 bit 8xSingle End AI(or 4xDifferential AI)+12bit 4xAI+2xDI+2xDO)

Product Introduction (RS-6000M Series)

RS-6000M RS485-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With RS485-based technology, RS-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the RS-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.

Product Features:

  1. 32 bits & 120M high speed CPU, the real time embedded OS.
  2. DI can read more than 600 times/second.
  3. Optocoupler isolation: Digital Input and Output.
  4. RS-485: Separate isolation
  5. Power or dual power(Analogue Modules): Independent isolation
  6. Surge protection: 15KV
  7. The analogue input: Magnetic coupling isolation and protection.
  8. The input voltage can be positive and negative, each channel has TVS and ESD protection.
  9. The measuring range can be shifted by software.
  10. The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
  11. The ID and baud rate can be adjusted by rotary button directly.
  12. Enclosure: shielded metal
  13. The differential sampling frequency can reach 50Hz/channel

Hardware Specification:

System
CPU 32-bit 120MIPS CPU
Operation System Real-Time
Watchdog Yes
Communication RS-6000M CAN-6000T NET-6000M
RS485 CAN

Ethernet

10/100 Base-TX
LED Display
Power Indicator Red
Run Indicator Green
Error Indicator Red
Link Indicator Green
Act Indicator  Yellow
Mechanical

Dimensions

(W x H x D)(mm)

 140*110*40
Installation DIN-Rail mounting
Environment
Operating Temperature -20℃～+70℃
Storage Temperature -30℃～+80℃
Power Requirements
Power Input +9V～30V DC
Power Consumption <3W

I/O Specification:

Model       RS-6088M
Analog Input
Input Channels  8-ch Single End or 4-ch Differential
Input Type Single End or Differential
Input Range

±10V, ±5V, ±1.25V

0-20mA(External 250ohm Resistor Needed)

4-20 mA(External 250ohm Resistor Needed)
Input Impedance > 10M(voltage), 250 ohm (current)
Resolution 16-bit
Accuracy ±0.01%
Sampling Rate

All channels: 8 samples/sec

Per channel: 1samples/sec
Isolation  2500V
Protection

Built-in TVS/ESD Protection

±4 kV Contact for each terminal
Analog Output
Output Channels 2
Output Range ±10V, ±5V, 0V～5V, 0V～10V
Resolution 12-bit
Accuracy ±0.1%
Isolation  2500V
Protection

Built-in TVS/ESD Protection

±4 kV Contact for each terminal
Digital Input
Input Channels 2
Input Type Dry Contact Wet Contact
On Voltage Level Close to GND 0V～1V DC
Off Voltage Level Open 3V～50V DC
Overvoltage Protection +70V
Isolation  3750Vrms
Digital Output
Output Channels 2
Output Type Sink, Open Collector(NPN)
Load Voltage  Max 25V DC
Max Load Current 100mA/channel
Isolation  3750Vrms
Input Channels 8

Ordering Information:

Model Description
Digital I/O
RS-6011M RS485 Remote I/O Module with16-ch DI
RS-6012M RS485 Remote I/O Module with16-ch DO
RS-6013M RS485 Remote I/O Module with 8-ch DI and 8-ch DO
Relay Output
RS-6014M RS485 Remote I/O Module with 5-ch Relay(Form A)
RS-6015M RS485 Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C)
Analog Input
RS-6021M RS485 Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI
RS-6022M RS485 Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI
Analog Output
RS-6031M RS485 Remote I/O Module with 12bit 4-ch AO
RS-6032M RS485 Remote I/O Module with 16bit 4-ch AO
RTD
RS-6041M RS485 Remote I/O Module with 5-ch RTD
Thermocouple
RS-6042M RS485 Remote I/O Module with 5-ch TC
Mixed
RS-6088 RS485 Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO
Published in RS-485 I/O Module
Tagged under
Read more...
Monday, 01 February 2016 14:10

RS-485 Remote I/O Module(5xTC-Thermocouple)

RS-485 Remote I/O Module(5xTC-Thermocouple)



Modbus RS-485 Remote I/O Module(5xTC(Thermocouple)

Product Introduction (RS-6000M Series)

RS-6000M RS485-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With RS485-based technology, RS-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the RS-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.

Product Features:

  1. 32 bits & 120M high speed CPU, the real time embedded OS.
  2. DI can read more than 600 times/second.
  3. Optocoupler isolation: Digital Input and Output.
  4. RS-485: Separate isolation
  5. Power or dual power(Analogue Modules): Independent isolation
  6. Surge protection: 15KV
  7. The analogue input: Magnetic coupling isolation and protection.
  8. The input voltage can be positive and negative, each channel has TVS and ESD protection.
  9. The measuring range can be shifted by software.
  10. The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
  11. The ID and baud rate can be adjusted by rotary button directly.
  12. Enclosure: shielded metal
  13. The differential sampling frequency can reach 50Hz/channel

Hardware Specification:

System
CPU 32-bit 120MIPS CPU
Operation System Real-Time
Watchdog Yes
Communication RS-6000M CAN-6000T NET-6000M
RS485 CAN

Ethernet

10/100 Base-TX
LED Display
Power Indicator Red
Run Indicator Green
Error Indicator Red
Link Indicator Green
Act Indicator  Yellow
Mechanical

Dimensions

(W x H x D)(mm)

 140*110*40
Installation DIN-Rail mounting
Environment
Operating Temperature -20℃～+70℃
Storage Temperature -30℃～+80℃
Power Requirements
Power Input +9V～30V DC
Power Consumption <3W

I/O Specification:

Model RS-6042M
Thermocouple Input
Input Channels:  5
Input Type J -210℃~1200℃
K -200℃~1370℃
E -100℃~1000℃
T -200℃~400℃
N -200℃~1300℃
B 650℃~1800℃
R 0℃~1750℃
S 0℃~1760℃
Input Impedance: 1.5M
ADC Resolution 24-bit
Temperature Resolution 0.1℃
Accuracy:  ±0.1% or Better
Sampling Rate:

All channels: 5 samples/sec

Per channel: 1samples/sec
Isolation  2500V
Protection

Built-in TVS/ESD Protection

±4 kV Contact for each terminal

Ordering Information:

Model Description
Digital I/O
RS-6011M RS485 Remote I/O Module with16-ch DI
RS-6012M RS485 Remote I/O Module with16-ch DO
RS-6013M RS485 Remote I/O Module with 8-ch DI and 8-ch DO
Relay Output
RS-6014M RS485 Remote I/O Module with 5-ch Relay(Form A)
RS-6015M RS485 Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C)
Analog Input
RS-6021M RS485 Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI
RS-6022M RS485 Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI
Analog Output
RS-6031M RS485 Remote I/O Module with 12bit 4-ch AO
RS-6032M RS485 Remote I/O Module with 16bit 4-ch AO
RTD
RS-6041M RS485 Remote I/O Module with 5-ch RTD
Thermocouple
RS-6042M RS485 Remote I/O Module with 5-ch TC
Mixed
RS-6088 RS485 Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO
Published in RS-485 I/O Module
Tagged under
Read more...
Monday, 01 February 2016 14:05

RS-485 Remote I/O Module(5xRTD)

RS-485 Remote I/O Module(5xRTD)

Modbus RS-485 Remote I/O Module(5xRTD)

Product Introduction (RS-6000M Series)

RS-6000M RS485-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With RS485-based technology, RS-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the RS-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.

Product Features:

  1. 32 bits & 120M high speed CPU, the real time embedded OS.
  2. DI can read more than 600 times/second.
  3. Optocoupler isolation: Digital Input and Output.
  4. RS-485: Separate isolation
  5. Power or dual power(Analogue Modules): Independent isolation
  6. Surge protection: 15KV
  7. The analogue input: Magnetic coupling isolation and protection.
  8. The input voltage can be positive and negative, each channel has TVS and ESD protection.
  9. The measuring range can be shifted by software.
  10. The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
  11. The ID and baud rate can be adjusted by rotary button directly.
  12. Enclosure: shielded metal
  13. The differential sampling frequency can reach 50Hz/channel

Hardware Specification:

System
CPU 32-bit 120MIPS CPU
Operation System Real-Time
Watchdog Yes
Communication RS-6000M CAN-6000T NET-6000M
RS485 CAN

Ethernet

10/100 Base-TX
LED Display
Power Indicator Red
Run Indicator Green
Error Indicator Red
Link Indicator Green
Act Indicator  Yellow
Mechanical

Dimensions

(W x H x D)(mm)

 140*110*40
Installation DIN-Rail mounting
Environment
Operating Temperature -20℃～+70℃
Storage Temperature -30℃～+80℃
Power Requirements
Power Input +9V～30V DC
Power Consumption <3W

I/O Specification:

Model RS-6041M
RTD Input
Input Channels 5
Input Connections 2 or 3 wire
Input Type

PT100, PT200, PT500，PT1000（-200℃～+850℃）

Cu50，Cu100（-50℃～+150℃）
Input Impedance 1.5M
ADC Resolution 24-bit
Temperature Resolution 0.1℃
Accuracy ±0.1%
Sampling Rate

All channels: 5 samples/sec

Per channel: 1samples/sec
Isolation  2500V
Protection

Built-in TVS/ESD Protection

±4 kV Contact for each terminal

Ordering Information:

Model Description
Digital I/O
RS-6011M RS485 Remote I/O Module with16-ch DI
RS-6012M RS485 Remote I/O Module with16-ch DO
RS-6013M RS485 Remote I/O Module with 8-ch DI and 8-ch DO
Relay Output
RS-6014M RS485 Remote I/O Module with 5-ch Relay(Form A)
RS-6015M RS485 Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C)
Analog Input
RS-6021M RS485 Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI
RS-6022M RS485 Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI
Analog Output
RS-6031M RS485 Remote I/O Module with 12bit 4-ch AO
RS-6032M RS485 Remote I/O Module with 16bit 4-ch AO
RTD
RS-6041M RS485 Remote I/O Module with 5-ch RTD
Thermocouple
RS-6042M RS485 Remote I/O Module with 5-ch TC
Mixed
RS-6088 RS485 Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO
Published in RS-485 I/O Module
Tagged under
Read more...
Monday, 01 February 2016 14:03

RS-485 Remote I/O Module(16 bit 4xAnalog Output)

RS-485 Remote I/O Module(16 bit 4xAnalog Output)

RS-485 Modbus Remote I/O Module(16 bit 4xAnalog Output(AO)

Product Introduction (RS-6000M Series)

RS-6000M RS485-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With RS485-based technology, RS-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the RS-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.

Product Features:

  1. 32 bits & 120M high speed CPU, the real time embedded OS.
  2. DI can read more than 600 times/second.
  3. Optocoupler isolation: Digital Input and Output.
  4. RS-485: Separate isolation
  5. Power or dual power(Analogue Modules): Independent isolation
  6. Surge protection: 15KV
  7. The analogue input: Magnetic coupling isolation and protection.
  8. The input voltage can be positive and negative, each channel has TVS and ESD protection.
  9. The measuring range can be shifted by software.
  10. The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
  11. The ID and baud rate can be adjusted by rotary button directly.
  12. Enclosure: shielded metal
  13. The differential sampling frequency can reach 50Hz/channel

Hardware Specification:

System
CPU 32-bit 120MIPS CPU
Operation System Real-Time
Watchdog Yes
Communication RS-6000M CAN-6000T NET-6000M
RS485 CAN

Ethernet

10/100 Base-TX
LED Display
Power Indicator Red
Run Indicator Green
Error Indicator Red
Link Indicator Green
Act Indicator  Yellow
Mechanical

Dimensions

(W x H x D)(mm)

 140*110*40
Installation DIN-Rail mounting
Environment
Operating Temperature -20℃～+70℃
Storage Temperature -30℃～+80℃
Power Requirements
Power Input +9V～30V DC
Power Consumption <3W

I/O Specification:

Model RS-6031M RS-6032M
Analog Output
Output Channels 4
Output Range

±10V, ±5V, 0V～5V, 0V～10V

0～20mA(Built-in 250ohm Resistor)

4～20mA(Built-in 250ohm Resistor)
Resolution 12-bit 16-bit
Accuracy ±0.1% ±0.01%
Max Current Load Resistance

Internal power +15 V: 500 Ω.

External power +24 V: 1000 Ω.
Isolation  2500V
Protection

Built-in TVS/ESD Protection

±4 kV Contact for each terminal

Ordering Information:

Model Description
Digital I/O
RS-6011M RS485 Remote I/O Module with16-ch DI
RS-6012M RS485 Remote I/O Module with16-ch DO
RS-6013M RS485 Remote I/O Module with 8-ch DI and 8-ch DO
Relay Output
RS-6014M RS485 Remote I/O Module with 5-ch Relay(Form A)
RS-6015M RS485 Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C)
Analog Input
RS-6021M RS485 Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI
RS-6022M RS485 Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI
Analog Output
RS-6031M RS485 Remote I/O Module with 12bit 4-ch AO
RS-6032M RS485 Remote I/O Module with 16bit 4-ch AO
RTD
RS-6041M RS485 Remote I/O Module with 5-ch RTD
Thermocouple
RS-6042M RS485 Remote I/O Module with 5-ch TC
Mixed
RS-6088 RS485 Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO
Published in RS-485 I/O Module
Tagged under
Read more...
Monday, 01 February 2016 13:53

RS-485 Analog Remote I/O Module(12 bit 4xAnalog Output)

RS-485 Analog Remote I/O Module(12 bit 4xAnalog Output)

Modbus RS-485 Remote I/O Module(12 bit 4xAnalog Output(AO)

Analog RS-485 IO module with 4 AO

Product Introduction (RS-6000M Series)

RS-6000M RS485-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With RS485-based technology, RS-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the RS-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.

Product Features:

  1. 32 bits & 120M high speed CPU, the real time embedded OS.
  2. DI can read more than 600 times/second.
  3. Optocoupler isolation: Digital Input and Output.
  4. RS-485: Separate isolation
  5. Power or dual power(Analogue Modules): Independent isolation
  6. Surge protection: 15KV
  7. The analogue input: Magnetic coupling isolation and protection.
  8. The input voltage can be positive and negative, each channel has TVS and ESD protection.
  9. The measuring range can be shifted by software.
  10. The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
  11. The ID and baud rate can be adjusted by rotary button directly.
  12. Enclosure: shielded metal
  13. The differential sampling frequency can reach 50Hz/channel

Hardware Specification:

System
CPU 32-bit 120MIPS CPU
Operation System Real-Time
Watchdog Yes
Communication RS-6000M CAN-6000T NET-6000M
RS485 CAN

Ethernet

10/100 Base-TX
LED Display
Power Indicator Red
Run Indicator Green
Error Indicator Red
Link Indicator Green
Act Indicator  Yellow
Mechanical

Dimensions

(W x H x D)(mm)

 140*110*40
Installation DIN-Rail mounting
Environment
Operating Temperature -20℃～+70℃
Storage Temperature -30℃～+80℃
Power Requirements
Power Input +9V～30V DC
Power Consumption <3W

I/O Specification:

Model RS-6031M RS-6032M
Analog Output
Output Channels 4
Output Range

±10V, ±5V, 0V～5V, 0V～10V

0～20mA(Built-in 250ohm Resistor)

4～20mA(Built-in 250ohm Resistor)
Resolution 12-bit 16-bit
Accuracy ±0.1% ±0.01%
Max Current Load Resistance

Internal power +15 V: 500 Ω.

External power +24 V: 1000 Ω.
Isolation  2500V
Protection

Built-in TVS/ESD Protection

±4 kV Contact for each terminal

Ordering Information:

Model Description
Digital I/O
RS-6011M RS485 Remote I/O Module with16-ch DI
RS-6012M RS485 Remote I/O Module with16-ch DO
RS-6013M RS485 Remote I/O Module with 8-ch DI and 8-ch DO
Relay Output
RS-6014M RS485 Remote I/O Module with 5-ch Relay(Form A)
RS-6015M RS485 Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C)
Analog Input
RS-6021M RS485 Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI
RS-6022M RS485 Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI
Analog Output
RS-6031M RS485 Remote I/O Module with 12bit 4-ch AO
RS-6032M RS485 Remote I/O Module with 16bit 4-ch AO
RTD
RS-6041M RS485 Remote I/O Module with 5-ch RTD
Thermocouple
RS-6042M RS485 Remote I/O Module with 5-ch TC
Mixed
RS-6088 RS485 Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO
Published in RS-485 I/O Module
Tagged under
Read more...
Page 22 of 31
