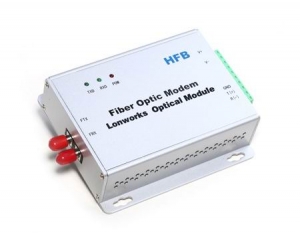

Lonworks(LON Talk) Multi-drop Bus Fiber Optic Converter

The Lonworks Fiber Optic Converter(Modem) is a multi-master and high performance Field bus Control System (FCS). Our Fiber Optic Modem uses the fiber cable as its transmission medium and utilizes Optical Fiber modulation/demodulation technology to changes the electric medium into a light medium transmission.

The Lonworks Fiber Optic Converter(Modem) product eliminates many of the disadvantages of copper cable. Examples of these disadvantages are EMI/RFI, ground loops (electrical isolation with fiber), high attenuation (high signal loss), short transmission distance between nodes of a system, and potential lightning damage.

The Lonworks Fiber Optic Converter(Modem) can be widely used, such as Industrial Controls, Intelligent Transportation Systems (ITS), Industrial Networking, Supervisory Control and Data (SCADA) and so on.

Technical Specifications:

Ordering Information:

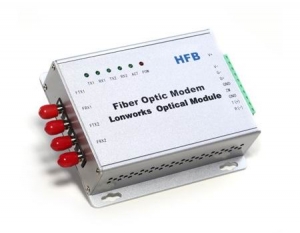

Lonworks(LON) to Fiber Optic Media Converter

(Point to point,Multi-drop Bus) Topologies,FTT-10A Chip.

The Lonworks Fiber Optic Converter(Modem) is a multi-master and high performance Field bus Control System (FCS). Our Fiber Optic Modem uses the fiber cable as its transmission medium and utilizes Optical Fiber modulation/demodulation technology to changes the electric medium into a light medium transmission.It's based on advanced technology and the outcome of great R & D team of BE.

The Lonworks Fiber Optic Converter(Modem) product eliminates many of the disadvantages of copper cable. Examples of these disadvantages are EMI/RFI, ground loops (electrical isolation with fiber), high attenuation (high signal loss), short transmission distance between nodes of a system, and potential lightning damage.

The Lonworks Fiber Optic Converter(Modem) can be widely used, such as Building Automation System(BAS), Industrial Controls, Intelligent Transportation Systems (ITS), Industrial Networking, Supervisory Control and Data (SCADA) and so on

Technical Specifications:

Odering Information:

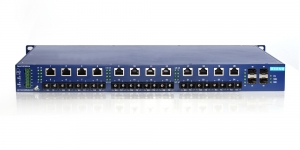

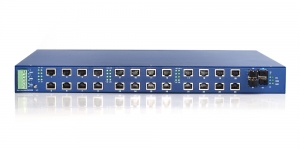

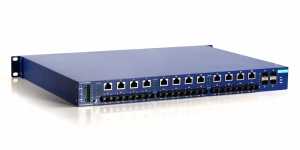

IEC 61850-3 Ethernet Switches(1U Rack Chassis)

HFB IEC 61850-3 Ethernet switches are designed specifically for substation environments. The entire line of PowerTrans series has passed IEC 61850-3 and IEEE 1613 (conducted by KEMA) for GOOSE compliance and zero packet loss performance. The series also supports IEEE 1588 protocol for timing accuracy over substation LAN, which is highly favorable for large-scale distributed power grids.

* IEC 61850-3, IEEE1613 (power substations),

* Smart web-based management makes configuration easy

* Port-based VLAN to enhance security/network performance and ease network planning

* 802.1p priority queues and port-based QoS to increase determinism

* -40 to 85°C operating temperature range

Introduction

The HFB6128 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613), and railway applications (EN50155/EN50121-4). The MX6000’s Gigabit and fast Ethernet backbone, redundant ring, and 48 VDC or 110/220

VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs.

The switches design of the MX6000 also makes network planning easy, and allows greater flexibility by letting you install up to 12 fast fiber ports and 20 fast Ethernet ports.

Features and Benefits

• RingOn (recovery time < 15 ms), RSTP/STP for network redundancy

• IGMP snooping for filtering multicast traffic

• Port-based VLAN, IEEE 802.1Q VLAN to ease network planning

• QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism

• Port Trunking for optimum bandwidth utilization

• RMON for efficient network monitoring and proactive capability

• SNMP v1/v2c/v3 for network management of different levels

• Bandwidth management to prevent unpredictable network status

• Lock port function for blocking unauthorized access based on MAC address

• Automatic warning by exception through e-mail or relay output

• Port mirroring for online debugging

• -40 to 85°C operating temperature range (W models)

Cyber-security Features

• User passwords with multiple levels of security protect against unauthorized configuration

• 802.1Q VLAN allows you to logically partition traffic transmitted between selected switch ports

• Secure switch ports so that only specific devices and/or MAC addresses can access the ports

• SNMP v3 provides encrypted authentication and access security

Technology

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100BaseT(X) and 100BaseFX IEEE802.3x Flow Control

IEEE802.1p Classe of Service

IEEE802.1Q VLAN Tagging

IEEE802.1D for Spanning Tree Protocol

IEEE802.1W for Rapid STP IEEE802.1X for Authentication

Flow Control: Full/Half Duplex Back Pressure Flow Control Protocols: SNMP V1/V2c/V3, DHCP Server, SNTP, SMTP, IGMP Snooping, RMON, HTTPS,

Telnet, Syslog, HTTP

Switch Properties

Priority Queues: 4

IGMP Groups: 256

Max. Available VLANs: 64

VLAN ID Range: 1~4094

Interface

RJ45 Port Connectors: 10/100Base Auto-sensing, Full/ Half Duplex MDI/MDI-X Auto-Negotiation

Fiber Port Connectors: 100BaseFX, SC or ST

connectors, Single-Mode or Multi-Mode

LED Indicators: Power, Port Status, 10/100M Console Port: DB9 male

Power Requirements

Power Inputs:

200~350VDC @ 20W MAX; 165~265VAC @ 20VA MAX Optical Fiber

100BaseFX

Typical Dist:

Multi-mode: 2km, 1310nm(62.5/125μm) Single-mode: 15km, 1310nm(9/125μm) Min. TX:

Multi-mode: -23.5dBm Single-mode: -15dBm Max. TX:

Multi-mode: -14dBm

Single-mode: -8dBm

RX Sensitivity: <-35dBm(Multi/Single) Physical Characteristics

Case: Slim Metal Case, IP40 Design Dimensions: (W×H×D): 443×44×237.8mm Installation: 19” rack mounting

Environment Limits

Extended Temp Models: -40˚C to 85˚C Storage Temperature: -40 to 85˚C

Ambient Relative Humidity: 10 to 95%(Non-condensing) Agency Approvals

Power Automation: IEC 61850-3, IEEE 1613

EMI:FCC Part15, CISPR(EN55022) Class A

EMS:

EN61000-4-2(ESD), Lv4

EN61000-4-3(RS), Lv4

EN61000-4-4(EFT), Lv4

EN61000-4-5(Surge), Lv4

EN61000-4-6(CS), Lv4

EN61000-4-8

EN61000-4-11

Warranty

Warranty Period: 5 years

Ordering Information:

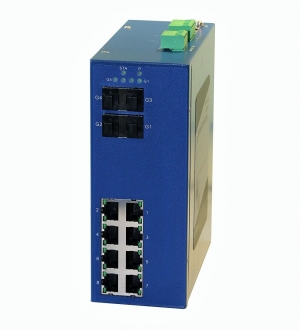

IEC61850-3 Ethernet Switch(DIN-rail )

* RingOn™ Redundant Ring Technology, Recovery Time within 15ms, Supports RSTP/STP
* Enriched Management Features: QoS, IGMP snooping/ GMRP,VLAN, SNMP V1/V2/V3
* Multiple Redundant AC/DC Power Choices
* Upgrated EMI Immunity

Specifications:

* Technology
Network Standards:
IEEE802.3 10Base-T
IEEE802.3u 100BaseT(X), 100BaseFX
IEEE802.3x Flow Control
IEEE802.1p Classe of Service
IEEE802.1Q VLAN Tagging
IEEE802.1ad LACP
Processing Type:Store and Forward
MAC Address:8k MAC Address Table
Management:by Web Browser
RingOn™:Recovery Time within 15ms
Broadcasting Storm Control:Automatic
Flow Control:Full/Half Duplex Back Pressure Flow Control
Protocols:SNMP V1/V2/V3, DHCP Server, SNTP, SMTP, IGMP Snooping/GMRP, LACP, RMON,IEC-61850,BacNet/IP
HTTPS, Telnet, Syslog, HTTP
* Switch Properties
Priority Queues:4
IGMP Groups:64
Max. Available VLANs:256
VLAN ID Range:1~4096
* Interface
RJ45 Port Connectors:10/100Base Auto-sensing, Full/Half Duplex MDI/MDI-X Auto-Negotiation
Fiber Port Connectors:100BaseFX, SC or ST connectors, Single-Mode or Multi-Mode
LED Indicators:Power, Port Status
Console Port:DB9 male
Output Warning:Relay, Standard 2 Pin, 0.5A@24VDC
* Power Requirements
Low Voltage Range:12~36VDC; 10~24VAC
High Voltage Range:200~350VDC; 165~265VAC
Connection:Standard 4 Pin Dual Power Connector

* Optical Fiber

 * Physical Characteristics
Case:Slim Metal Case, IP40 Design
Dimensions:(W×H×D):
HFD8M:49×139×115mm
HFD16M:70×149×130mm
HFD24M:91×149×130mm
DIN Rail or Panel Mounting
* Environment Limits
Temp Models:-40˚C to 85˚C
Storage Temperature:-45 to 90˚C
Ambient Relative Humidity: 10 to 95%(Non-condensing)
* Agency Approvals
EMI:FCC Part15, CISPR(EN55022) Class A
EMS:
EN61000-4-2(ESD), Lv3
EN61000-4-3(RS), Lv3
EN61000-4-4(EFT), Lv3
EN61000-4-5(Surge), Lv3
EN61000-4-6(CS), Lv3

* Warranty
Warranty Period:5 years
* Ordering Information

* All fiber cables can be equipped with ST or SC connectors
* Typical Distance:Multi mode<15km; Single mode: Ranging from 15km to 120km
* The standard models are powered by 24VDC, 110-220V AC/DC custom models are also available

8xGigabit Ethernet+4xGigabit SFP FO Managed Ethernet Switch

Model:HFD12M-4G

*Up to 4 Gigabit Combo Ports
* RingOn™ Redundant Ring Technology, Recovery Time within 15ms, Supports RSTP/STP
* Enriched Management Features: QoS, IGMP snooping/GMRP, VLAN, SNMP V1/V2/V3
* Multiple Redundant AC/DC Power Choices

Specifications

* Technology
Network Standards:
IEEE802.3 10Base-T
IEEE802.3u 100BaseT(X) and 100BaseFX
IEEE802.3ad 1000Base(X)
IEEE802.3z 1000BaseSX/LX/HLX/ZX
IEEE802.3x Flow Control
IEEE802.1p Classe of Service
IEEE802.1Q VLAN Tagging
IEEE802.1ad LACP
IEEE802.1D for Spanning Tree Protocol
IEEE802.1W for Rapid STP
IEEE802.3X for Authentication
Broadcasting Storm Control:Automatic
Processing Type:Store and Forward
Management:by Web Browser
RingOn™:Recovery Time within 15ms
Flow Control:Full/Half Duplex Back Pressure Flow Control
Protocols:SNMP V1/V2/V3, DHCP Server, SNTP, SMTP, IGMP Snooping/GMRP, LACP, RMON,
HTTPS, Telnet, Syslog, HTTP
* Switch Properties
Priority Queues:4
IGMP Groups:64
Max. Available VLANs:256
VLAN ID Range:1~4096
* Interface
RJ45 Port Connectors:10/100Base(X) or 10/100/1000BaseT(X) Auto-Negotiation
Fiber Port Connectors:1000BaseSX/CX/LHX/ZX(SFP slots, LC connectors)
LED Indicators:Power, Port Status, 10/100/1000M
Console Port:DB9 male

Output Warning:Relay, Standard 2 Pin, 0.5A@24VDC

* Power Requirements
Low Voltage Range:12~36VDC; 10~24VAC
High Voltage Range:200~350VDC; 165~265VAC
Connection:Standard 4 Pin Dual Power Connector
* Optical Fiber

* Physical Characteristics
Case:Slim Metal Case, IP40 Design
Dimensions:(W×H×D):

DIN Rail or Panel Mounting
* Environment Limits
Standard Temp Models:-10 to 60˚C
Extended Temp Models:-40 to 75˚C
Storage Temperature:-40 to 85˚C
Ambient Relative Humidity: 10 to 95%(Non-condensing)
* Agency Approvals
EMI:FCC Part15, CISPR(EN55022) Class A
EMS:
EN61000-4-2(ESD), Lv3
EN61000-4-3(RS), Lv3
EN61000-4-4(EFT), Lv3
EN61000-4-5(Surge), Lv3
EN61000-4-6(CS), Lv3
* Warranty
Warranty Period:5 years

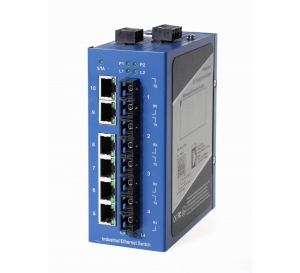

Din Rail Managed Gigabit Ethernet Switch

* Up to 4 Gigabit Combo Ports
* RingOn™ Redundant Ring Technology, Recovery Time within 15ms, Supports RSTP/STP
* Enriched Management Features: QoS, IGMP snooping/GMRP, VLAN, SNMP V1/V2/V3
* Multiple Redundant AC/DC Power Choices

Specifications:

* Technology
Network Standards:
IEEE802.3 10Base-T
IEEE802.3u 100BaseT(X) and 100BaseFX
IEEE802.3ad 1000Base(X)
IEEE802.3z 1000BaseSX/LX/HLX/ZX
IEEE802.3x Flow Control
IEEE802.1p Classe of Service
IEEE802.1Q VLAN Tagging
IEEE802.1ad LACP
IEEE802.1D for Spanning Tree Protocol
IEEE802.1W for Rapid STP
IEEE802.3X for Authentication
Broadcasting Storm Control:Automatic
Processing Type:Store and Forward
Management:by Web Browser
RingOn™:Recovery Time within 15ms
Flow Control:Full/Half Duplex Back Pressure Flow Control
Protocols:SNMP V1/V2/V3, DHCP Server, SNTP, SMTP, IGMP Snooping/GMRP, LACP, RMON,
HTTPS, Telnet, Syslog, HTTP
* Switch Properties
Priority Queues:4
IGMP Groups:64
Max. Available VLANs:256
VLAN ID Range:1~4096
* Interface
RJ45 Port Connectors:10/100Base(X) or 10/100/1000BaseT(X) Auto-Negotiation
Fiber Port Connectors:1000BaseSX/CX/LHX/ZX(SFP slots, LC connectors)
LED Indicators:Power, Port Status, 10/100/1000M
Console Port:DB9 male
Output Warning:Relay, Standard 2 Pin, 0.5A@24VDC
* Power Requirements
Low Voltage Range:12~36VDC; 10~24VAC
High Voltage Range:200~350VDC; 165~265VAC
Connection:Standard 4 Pin Dual Power Connector
* Optical Fiber

* Physical Characteristics
Case:Slim Metal Case, IP40 Design
Dimensions:(W×H×D):
HFB10M-2G:89×144×125mm
HFB18M-2G:70×149×130mm
HFB28M-4G:91×166×130mm
DIN Rail or Panel Mounting
* Environment Limits
Standard Temp Models:-10 to 60˚C
Extended Temp Models:-40 to 75˚C
Storage Temperature:-40 to 85˚C
Ambient Relative Humidity: 10 to 95%(Non-condensing)
* Agency Approvals
EMI:FCC Part15, CISPR(EN55022) Class A
EMS:
EN61000-4-2(ESD), Lv3
EN61000-4-3(RS), Lv3
EN61000-4-4(EFT), Lv3
EN61000-4-5(Surge), Lv3
EN61000-4-6(CS), Lv3
* Warranty
Warranty Period:5 years
* Ordering Information

* All fiber cables can be equipped with ST or SC connectors
* Typical Distance:Multi mode<15km; Single mode: Ranging from 15km to 120km
* The standard models are powered by 24VDC, 110-220V AC/DC custom models are also available

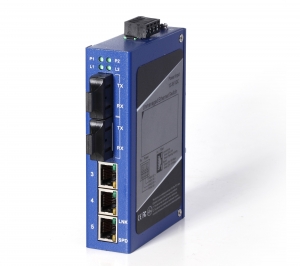

DIN-Rail 10/100M Managed Industrial Ethernet Switch

* RingOn™ Redundant Ring Technology, Recovery Time within 15ms, Supports RSTP/STP
* Enriched Management Features: QoS, IGMP snooping/GMRP,VLAN, SNMP V1/V2/V3
* Multiple Redundant AC/DC Power Choices
* Upgrated EMI Immunity

Specifications:

* Technology
Network Standards:
IEEE802.3 10Base-T
IEEE802.3u 100BaseT(X), 100BaseFX
IEEE802.3x Flow Control
IEEE802.1p Classe of Service
IEEE802.1Q VLAN Tagging
IEEE802.1ad LACP
Processing Type:Store and Forward
MAC Address:8k MAC Address Table
Management:by Web Browser
RingOn™:Recovery Time within 15ms
Broadcasting Storm Control:Automatic
Flow Control:Full/Half Duplex Back Pressure Flow Control
Protocols support by our Ethernet Switch:SNMP V1/V2/V3, DHCP Server, NTP/SNTP, SMTP, IGMP Snooping/GMRP, LACP, RMON,
HTTPS, Telnet, Syslog, HTTP,Profinet,Modbus TCP,IEC-61850,BacNet,DNP3,IEC104,OPC & Other Protocols.
* Switch Properties
Priority Queues:4
IGMP Groups:64
Max. Available VLANs:256
VLAN ID Range:1~4096
* Interface
RJ45 Port Connectors:10/100Base Auto-sensing, Full/Half Duplex MDI/MDI-X Auto-Negotiation
Fiber Port Connectors:100BaseFX, SC or ST connectors, Single-Mode or Multi-Mode
LED Indicators:Power, Port Status
Console Port:DB9 male
Output Warning:Relay, Standard 2 Pin, 0.5A@24VDC

*Power Requirements

Low Voltage Range:12~36VDC; 10~24VAC
High Voltage Range:200~350VDC; 165~265VAC
Connection:Standard 4 Pin Dual Power Connector
* Optical Fiber

* Physical Characteristics
Case:Slim Metal Case, IP40 Design
Dimensions:(W×H×D):
HFB8M:49×139×115mm
HFB16M:70×149×130mm
HFB24M:91×149×130mm
DIN Rail or Panel Mounting
* Environment Limits
Standard Temp Models:-10˚C to 60˚C
Extended Temp Models:-40˚C to 75˚C
Storage Temperature:-40 to 85˚C
Ambient Relative Humidity: 10 to 95%(Non-condensing)
* Agency Approvals
EMI:FCC Part15, CISPR(EN55022) Class A
EMS:
EN61000-4-2(ESD), Lv3
EN61000-4-3(RS), Lv3
EN61000-4-4(EFT), Lv3
EN61000-4-5(Surge), Lv3
EN61000-4-6(CS), Lv3

* Warranty:5 years

* Ordering Information

* All fiber cables can be equipped with ST or SC connectors
* Typical Distance:Multi mode<15km; Single mode: Ranging from 15km to 120km

Rack Mount Managed Industrial Ethernet Switch with 10/100M

RingOn™ Redundant Ring Technology, Recovery Time within 15ms, Supports RSTP/STPEnriched Management Features: QoS, IGMP snooping/GMRP, VLAN, SNMP V1/V2/V3Multiple power inputs include low voltage redundantUpgrated EMI Immunity

Specifications:

* Technology Network Standards:

IEEE802.3 10Base-T

IEEE802.3u 100BaseT(X), 100BaseFX

IEEE802.3x Flow Control

IEEE802.1p Classe of Service

IEEE802.1Q VLAN Tagging

IEEE802.1ad

LACP Processing Type:Store and Forward MAC Address:8k MAC

Address Table Management:by Web Browse RingOn™:Recovery Time within 15ms

Broadcasting Storm Control:Automatic

Flow Control:Full/Half Duplex

Back Pressure Flow Control Protocols:SNMP V1/V2/V3, DHCP Server, SNTP, SMTP, IGMP Snooping/GMRP, LACP, RMON, HTTPS, Telnet, Syslog, HTTP

* Switch Properties Priority Queues:4 IGMP Groups:64 Max.

Available VLANs:256 VLAN ID Range:1~4096

* Interface RJ45 Port Connectors:10/100Base Auto-sensing, Full/Half Duplex MDI/MDI-X Auto-Negotiation

Fiber Port Connectors:100BaseFX, SC or ST connectors, Single-Mode or Multi-Mode

LED Indicators:Power, Port Status Console Port:DB9 male Output Warning:Relay, Standard 2 Pin, 0.5A@24VDC

* Power Requirements Power Inputs:48VDC(8~56VDC); 110/220VAC(85~265VDC); 220VDC(120~370VDC); 110VDC(100~120VDC);

* Optical Fiber

Mode Typical Distance Wavelength Cable Size TX Power Rx Sensitivity Transmission speed

Multi 2km 1310nm 62.5/125um -23.5~-14dBm < -35dBm 10/100Mbps

Single 15km 1310nm 9/125um -15~-8dBm < -35dBm 10/100Mbps

* Physical Characteristics Case:

Slim Metal Case, IP30 Design Dimensions:(W×H×D):443×44×220mm(HFB18MC/26MC) Installation:19" rack mounting* Environment Limits Standard

Temp Models:-10˚C to 60˚C

Extended Temp Models:-40˚C to 75˚C

Storage Temperature:-40 to 85℃

Ambient Relative Humidity: 10 to 95%(Non-condensing)

* Ordering Information

Rack Mount Gigabit Managed Industrial Ethernet Switch

* Up to 24 Fast-Ethernet Ports and 2 Gigabit Combo Ports
* RingOn™ Redundant Ring Technology, Recovery Time
within 15ms, Supports RSTP/STP
* Enriched Management Features: QoS, IGMP snooping/GMRP, VLAN, SNMP V1/V2/V3
* Multiple Redundant AC/DC Power Choices

Specifications:
* Technology
Network Standards:
IEEE802.3 10Base-T
IEEE802.3u 100BaseT(X) and 100BaseFX
IEEE802.3ad 1000Base(X)
IEEE802.3z 1000BaseSX/LX/HLX/ZX
IEEE802.3x Flow Control
IEEE802.1p Classe of Service
IEEE802.1Q VLAN Tagging
IEEE802.1ad LACP
IEEE802.1D for Spanning Tree Protocol
IEEE802.1W for Rapid STP
IEEE802.1X for Authentication
Flow Control:Full/Half Duplex Back Pressure Flow Control
Protocols:SNMP V1/V2/V3, DHCP Server, SNTP, SMTP, IGMP Snooping/GMRP, LACP, RMON,
HTTPS, Telnet, Syslog, HTTP,Modbus TCP,BACNET.IEC61850,IEC104.
* Switch Properties
Priority Queues:4
IGMP Groups:64
Max. Available VLANs:256
VLAN ID Range:1~4096
* Interface
RJ45 Port Connectors:10/100Base(X) or 10/100/1000BaseT(X) Auto-Negotiation
Fiber Port Connectors:1000BaseSX/CX/LHX/ZX(SFP slots, LC connectors)
LED Indicators:Power, Port Status, 10/100/1000M
Console Port:DB9 male
Output Warning:Relay, Standard 2 Pin, 0.5A@24VDC<br< a="">>* Power Requirements
Power Inputs:48VDC(8~56VDC); 110/220VAC(85~265VDC);
220VDC(120~370VDC); 110VDC(100~120VDC);

* Fiber Optic

* Physical Characteristics
Case:Slim Metal Case, IP40 Design
Dimensions:(W×H×D):443×44×220mm(HFB18MC-2G/26MC-2G)
Installation:19" rack mounting
* Environment Limits
Standard Temp Models:-10˚C to 60˚C
Extended Temp Models:-40˚C to 75˚C
Storage Temperature:-40 to 85℃
Ambient Relative Humidity: 10 to 95%(Non-condensing)

* Ordering Information

Layer 3 Gigabit Ethernet Switch

* Layer 3 Switching, Supports Static Routing and RIP V1/V2
* Provide 4 Gigabit Combo Ports and 24 Fast-Ethernet Ports
* RingOn™ Redundant Ring Technology, Recovery Time
within 15ms, Supports RSTP/STP
* Enriched Management Features: QoS, IGMP snooping/GMRP, VLAN, SNMP V1/V2/V3

Specifications:

* Technology
Network Standards:
IEEE802.3 10Base-T
IEEE802.3u 100BaseT(X) and 100BaseFX
IEEE802.3ad 1000Base(X)
IEEE802.3z 1000BaseSX/LX/HLX/ZX
IEEE802.3x Flow Control
IEEE802.1p Classe of Service
IEEE802.1Q VLAN Tagging
IEEE802.1D for Spanning Tree Protocol
IEEE802.1W for Rapid STP
IEEE802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
Flow Control:Full/Half Duplex Back Pressure Flow Control
Protocols:SNMP V1/V2/V3, DHCP Server, SNTP, SMTP, IGMP Snooping/GMRP, LACP, RMON,
HTTPS, Telnet, Syslog, HTTP
* Switch Properties
Priority Queues:4
IGMP Groups:64
Max. Available VLANs:256
VLAN ID Range:1~4096
* Interface
RJ45 Port Connectors:10/100Base(X) or 10/100/1000BaseT(X) Auto-Negotiation
Fiber Port Connectors:1000BaseSX/CX/LHX/ZX(SFP slots, LC connectors)
LED Indicators:Power, Port Status, 10/100/1000M
Console Port:DB9 male
Output Warning:Relay, Standard 2 Pin, 0.5A@24VDC<br< a="">>* Power Requirements
Power Inputs:48VDC(8~56VDC); 110/220VAC(85~265VDC);
220VDC(120~370VDC); 110VDC(100~120VDC);
* Optical Fiber

* Physical Characteristics
Case:Slim Metal Case, IP40 Design
Dimensions:(W×H×D):443×44×220mm(HFB7000 Series)
Installation:19" rack mounting
* Environment Limits
Standard Temp Models:-10˚C to 60˚C
Extended Temp Models:-40˚C to 85˚C
Storage Temperature:-40 to 85℃
Ambient Relative Humidity: 10 to 95%(Non-condensing)
* Agency Approvals
EMI:FCC Part15, CISPR(EN55022) Class A
EMS:
EN61000-4-2(ESD), Lv3
EN61000-4-3(RS), Lv3
EN61000-4-4(EFT), Lv3
EN61000-4-5(Surge), Lv3
EN61000-4-6(CS), Lv3
EN61000-4-9, Lv3
EN61000-4-8, 100A/m Continuous
EN61000-2-2
EN61000-4-11
* Warranty
Warranty Period:5 years
* Ordering Information

* All fiber cables can be equipped with ST connectors
* Typical Distance:Multi mode<15km; Single mode: Ranging from 15km to 120km
* Default Power Inputs:220V
