CAN Remote I/O Module(8 DI+8 DO)
CAN Remote I/O Module(8-ch Digital Input(DI)+8-ch Digital Output(DO)
CAN Bus Data Acquisition Module(8 DI+8 DO)
Product Introduction (CAN-6000T Series)
CAN-6000T CAN-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With CAN-based technology, CAN-6000T series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications.
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Description:
| Model | CAN-6011T | CAN-6012T | CAN-6013T | ||
| Digital Input | |||||
| Input Channels | 16 | 8 | |||
| Input Type | Dry Contact | Wet Contact | Dry Contact | Wet Contact | |
| On Voltage Level | Close to GND | 0V～1V DC | Close to GND | 0V～1V DC | |
| Off Voltage Level | Open | 3V～50V DC | Open | 3V～50V DC | |
| Overvoltage Protection | +70V | +70V | |||
| Isolation | 3750Vrms | 3750Vrms | |||
| Digital Output | |||||
| Output Channels | 16 | 8 | |||
| Output Type | Sink, Open Collector(NPN) | Sink, Open Collector(NPN) | |||
| Load Voltage | Max 50V DC | Max 50V DC | |||
| Max Load Current | 500mA/channel | 500mA/channel | |||
| Isolation | 3750Vrms | 3750Vrms | |||
Ordering Information:
| Model | Description |
| Digital I/O | |
| CAN-6011T | CAN Remote I/O Module with16-ch DI |
| CAN-6012T | CAN Remote I/O Module with16-ch DO |
| CAN-6013T | CAN Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| CAN-6014T | CAN Remote I/O Module with 5-ch Relay(Form A) |
| CAN-6015T | CAN Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| CAN-6021T | CAN Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| CAN-6022T | CAN Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| CAN-6031T | CAN Remote I/O Module with 12bit 4-ch AO |
| CAN-6032T | CAN Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| CAN-6041M | CAN Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| CAN-6042M | CAN Remote I/O Module with 5-ch TC |
| Mixed | |
| CAN-6088 | CAN Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
CAN Remote I/O Module(16 Ch Digital Output)
CAN Remote I/O Module with16-ch Digital Output(DO)
CAN Bus Data Acquisition Module(16xDO)
Product Introduction (CAN-6000T Series)
CAN-6000T CAN-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With CAN-based technology, CAN-6000T series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications.
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | CAN-6011T | CAN-6012T | CAN-6013T | ||
| Digital Input | |||||
| Input Channels | 16 | 8 | |||
| Input Type | Dry Contact | Wet Contact | Dry Contact | Wet Contact | |
| On Voltage Level | Close to GND | 0V～1V DC | Close to GND | 0V～1V DC | |
| Off Voltage Level | Open | 3V～50V DC | Open | 3V～50V DC | |
| Overvoltage Protection | +70V | +70V | |||
| Isolation | 3750Vrms | 3750Vrms | |||
| Digital Output | |||||
| Output Channels | 16 | 8 | |||
| Output Type | Sink, Open Collector(NPN) | Sink, Open Collector(NPN) | |||
| Load Voltage | Max 50V DC | Max 50V DC | |||
| Max Load Current | 500mA/channel | 500mA/channel | |||
| Isolation | 3750Vrms | 3750Vrms | |||
Ordering Information:
| Model | Description |
| Digital I/O | |
| CAN-6011T | CAN Remote I/O Module with16-ch DI |
| CAN-6012T | CAN Remote I/O Module with16-ch DO |
| CAN-6013T | CAN Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| CAN-6014T | CAN Remote I/O Module with 5-ch Relay(Form A) |
| CAN-6015T | CAN Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| CAN-6021T | CAN Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| CAN-6022T | CAN Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| CAN-6031T | CAN Remote I/O Module with 12bit 4-ch AO |
| CAN-6032T | CAN Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| CAN-6041M | CAN Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| CAN-6042M | CAN Remote I/O Module with 5-ch TC |
| Mixed | |
| CAN-6088 | CAN Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
CAN IO Module-16 DI(16 Ch Digital Input)
CAN Remote I/O Module with16-ch Digital Input(DI)
CAN Bus Data Acquisition Module
Product Introduction (CAN-6000T Series)
CAN-6000T CAN-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With CAN-based technology, CAN-6000T series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications.
Benefit: Our IO Module can read more than 600 times per second
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | CAN-6011T | CAN-6012T | CAN-6013T | ||
| Digital Input | |||||
| Input Channels | 16 | 8 | |||
| Input Type | Dry Contact | Wet Contact | Dry Contact | Wet Contact | |
| On Voltage Level | Close to GND | 0V～1V DC | Close to GND | 0V～1V DC | |
| Off Voltage Level | Open | 3V～50V DC | Open | 3V～50V DC | |
| Overvoltage Protection | +70V | +70V | |||
| Isolation | 3750Vrms | 3750Vrms | |||
| Digital Output | |||||
| Output Channels | 16 | 8 | |||
| Output Type | Sink, Open Collector(NPN) | Sink, Open Collector(NPN) | |||
| Load Voltage | Max 50V DC | Max 50V DC | |||
| Max Load Current | 500mA/channel | 500mA/channel | |||
| Isolation | 3750Vrms | 3750Vrms | |||
Ordering Information:
| Model | Description |
| Digital I/O | |
| CAN-6011T | CAN Remote I/O Module with16-ch DI |
| CAN-6012T | CAN Remote I/O Module with16-ch DO |
| CAN-6013T | CAN Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| CAN-6014T | CAN Remote I/O Module with 5-ch Relay(Form A) |
| CAN-6015T | CAN Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| CAN-6021T | CAN Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| CAN-6022T | CAN Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| CAN-6031T | CAN Remote I/O Module with 12bit 4-ch AO |
| CAN-6032T | CAN Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| CAN-6041M | CAN Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| CAN-6042M | CAN Remote I/O Module with 5-ch TC |
| Mixed | |
| CAN-6088 | CAN Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
Ethernet Remote I/O Module(5xTC-Thermocouple)
Ethernet Remote I/O Module with 5xTC Thermocouple (Modbus TCP Protocol)
Product Introduction (NET-6000M Series)
NET-6000M Ethernet-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With Ethernet-based technology, NET-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the NET-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.
Product features and benefits:
- 32 bits & 120M high speed CPU, the real time embedded OS.
- DI can read more than 600 times/second.
- Optocoupler isolation: Digital Input and Output.
- RS-485: Separate isolation
- Power or dual power(Analogue Modules): Independent isolation
- Surge protection: 15KV
- The analogue input: Magnetic coupling isolation and protection.
- The input voltage can be positive and negative, each channel has TVS and ESD protection.
- The measuring range can be shifted by software.
- The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
- The ID and baud rate can be adjusted by rotary button directly.
- Enclosure: shielded metal
- The differential sampling frequency can reach 50Hz/channel
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | NET-6042M | |
| Thermocouple Input | ||
| Input Channels: | 5 | |
| Input Type | J | -210℃~1200℃ |
| K | -200℃~1370℃ | |
| E | -100℃~1000℃ | |
| T | -200℃~400℃ | |
| N | -200℃~1300℃ | |
| B | 650℃~1800℃ | |
| R | 0℃~1750℃ | |
| S | 0℃~1760℃ | |
| Input Impedance: | 1.5M | |
| ADC Resolution | 24-bit | |
| Temperature Resolution | 0.1℃ | |
| Accuracy: | ±0.1% or Better | |
| Sampling Rate: |
All channels: 5 samples/sec Per channel: 1samples/sec |
|
| Isolation | 2500V | |
| Protection |
Built-in TVS/ESD Protection ±4 kV Contact for each terminal |
|
Ordering Information:
| Model | Description |
| Digital I/O | |
| NET-6011M | Ethernet Remote I/O Module with16-ch DI |
| NET-6012M | Ethernet Remote I/O Module with16-ch DO |
| NET-6013M | Ethernet Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| NET-6014M | Ethernet Remote I/O Module with 5-ch Relay(Form A) |
| NET-6015M | Ethernet Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| NET-6021M | Ethernet Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| NET-6022M | Ethernet Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| NET-6031M | Ethernet Remote I/O Module with 12bit 4-ch AO |
| NET-6032M | Ethernet Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| NET-6041M | Ethernet Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| NET-6042M | Ethernet Remote I/O Module with 5-ch TC |
| Mixed | |
| NET-6088 | Ethernet Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
Ethernet Remote I/O Module(5xRTD)
Ethernet Remote I/O Module with 5xRTD Modbus TCP Protocol
Product Introduction (NET-6000M Series)
NET-6000M Ethernet-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With Ethernet-based technology, NET-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the NET-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.
Product feature and benefits:
- 32 bits & 120M high speed CPU, the real time embedded OS.
- DI can read more than 600 times/second.
- Optocoupler isolation: Digital Input and Output.
- Power or dual power(Analogue Modules): Independent isolation
- Surge protection: 15KV
- The analogue input: Magnetic coupling isolation and protection.
- The input voltage can be positive and negative, each channel has TVS and ESD protection.
- The measuring range can be shifted by software.
- The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
- The ID and baud rate can be adjusted by rotary button directly.
- Enclosure: shielded metal
- The differential sampling frequency can reach 50Hz/channel
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | NET-6041M |
| RTD Input | |
| Input Channels | 5 |
| Input Connections | 2 or 3 wire |
| Input Type |
PT100, PT200, PT500，PT1000（-200℃～+850℃） Cu50，Cu100（-50℃～+150℃） |
| Input Impedance | 1.5M |
| ADC Resolution | 24-bit |
| Temperature Resolution | 0.1℃ |
| Accuracy | ±0.1% |
| Sampling Rate |
All channels: 5 samples/sec Per channel: 1samples/sec |
| Isolation | 2500V |
| Protection |
Built-in TVS/ESD Protection ±4 kV Contact for each terminal |
Ordering Information:
(NET-6000M Series Modbus TCP Protocol)
| Model | Description |
| Digital I/O | |
| NET-6011M | Ethernet Remote I/O Module with16-ch DI |
| NET-6012M | Ethernet Remote I/O Module with16-ch DO |
| NET-6013M | Ethernet Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| NET-6014M | Ethernet Remote I/O Module with 5-ch Relay(Form A) |
| NET-6015M | Ethernet Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| NET-6021M | Ethernet Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| NET-6022M | Ethernet Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| NET-6031M | Ethernet Remote I/O Module with 12bit 4-ch AO |
| NET-6032M | Ethernet Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| NET-6041M | Ethernet Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| NET-6042M | Ethernet Remote I/O Module with 5-ch TC |
| Mixed | |
| NET-6088 | Ethernet Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |

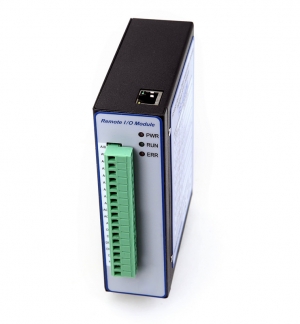

Ethernet I/O Module(16 bit 4 Analog Output)
Ethernet Remote I/O Module with 16 bit 4xAnalog Output
Modbus TCP Data Acquisition Module(16 bit 4xAI)
NET-6000M Ethernet-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With Ethernet-based technology, NET-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the NET-6000M series perfect for integration with HMI, SCADA, PLC and other software systems
Product feature and benefits:
- 32 bits & 120M high speed CPU, the real time embedded OS.
- DI can read more than 600 times/second.
- Optocoupler isolation: Digital Input and Output.
- Power or dual power(Analogue Modules): Independent isolation
- Surge protection: 15KV
- The analogue input: Magnetic coupling isolation and protection.
- The input voltage can be positive and negative, each channel has TVS and ESD protection.
- The measuring range can be shifted by software.
- The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
- The ID and baud rate can be adjusted by rotary button directly.
- Enclosure: shielded metal
- The differential sampling frequency can reach 50Hz/channel
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | NET-6031M | NET-6032M | |
| Analog Output | |||
| Output Channels | 4 | ||
| Output Range |
±10V, ±5V, 0V～5V, 0V～10V 0～20mA(Built-in 250ohm Resistor) 4～20mA(Built-in 250ohm Resistor) |
||
| Resolution | 12-bit | 16-bit | |
| Accuracy | ±0.1% | ±0.01% | |
| Max Current Load Resistance |
Internal power +15 V: 500 Ω. External power +24 V: 1000 Ω. |
||
| Isolation | 2500V | ||
| Protection |
Built-in TVS/ESD Protection ±4 kV Contact for each terminal |
||
Ordering Information:
| Model | Description |
| Digital I/O | |
| NET-6011M | Ethernet Remote I/O Module with16-ch DI |
| NET-6012M | Ethernet Remote I/O Module with16-ch DO |
| NET-6013M | Ethernet Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| NET-6014M | Ethernet Remote I/O Module with 5-ch Relay(Form A) |
| NET-6015M | Ethernet Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| NET-6021M | Ethernet Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| NET-6022M | Ethernet Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| NET-6031M | Ethernet Remote I/O Module with 12bit 4-ch AO |
| NET-6032M | Ethernet Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| NET-6041M | Ethernet Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| NET-6042M | Ethernet Remote I/O Module with 5-ch TC |
| Mixed | |
| NET-6088 | Ethernet Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |

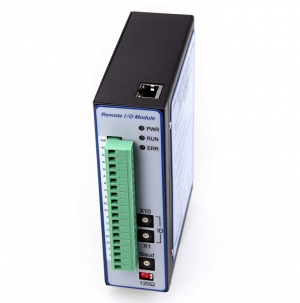

Ethernet I/O Module(12 bit 4 Analog Output)
Ethernet I/O Module with 12 bit 4xAnalog Output
Modbus TCP Data Acquisition I/O Module(12 bit 4 AI)
Product Introduction (NET-6000M Series)
NET-6000M Ethernet-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With Ethernet-based technology, NET-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the NET-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.
Product feature and benefits:
- 32 bits & 120M high speed CPU, the real time embedded OS.
- Power or dual power(Analogue Modules): Independent isolation
- Surge protection: 15KV
- The analogue input: Magnetic coupling isolation and protection.
- The input voltage can be positive and negative, each channel has TVS and ESD protection.
-
The measuring range can be shifted by software.
- The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
- The ID and baud rate can be adjusted by rotary button directly.
- Enclosure: shielded metal
- The differential sampling frequency can reach 50Hz/channel
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | NET-6031M | NET-6032M | |
| Analog Output | |||
| Output Channels | 4 | ||
| Output Range |
±10V, ±5V, 0V～5V, 0V～10V 0～20mA(Built-in 250ohm Resistor) 4～20mA(Built-in 250ohm Resistor) |
||
| Resolution | 12-bit | 16-bit | |
| Accuracy | ±0.1% | ±0.01% | |
| Max Current Load Resistance |
Internal power +15 V: 500 Ω. External power +24 V: 1000 Ω. |
||
| Isolation | 2500V | ||
| Protection |
Built-in TVS/ESD Protection ±4 kV Contact for each terminal |
||
Ordering Information:
(NET-6000M Series Modbus TCP Protocol)
| Model | Description |
| Digital I/O | |
| NET-6011M | Ethernet Remote I/O Module with16-ch DI |
| NET-6012M | Ethernet Remote I/O Module with16-ch DO |
| NET-6013M | Ethernet Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| NET-6014M | Ethernet Remote I/O Module with 5-ch Relay(Form A) |
| NET-6015M | Ethernet Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| NET-6021M | Ethernet Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| NET-6022M | Ethernet Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| NET-6031M | Ethernet Remote I/O Module with 12bit 4-ch AO |
| NET-6032M | Ethernet Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| NET-6041M | Ethernet Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| NET-6042M | Ethernet Remote I/O Module with 5-ch TC |
| Mixed | |
| NET-6088 | Ethernet Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
Ethernet I/O Module(16 bit 8xSingle End AI(or 4xDifferential AI)+12bit 4xAI+2xDI+2xDO)
Ethernet Remote I/O Module with 16 bit AI/12bit AI/DI/DO
Modbus TCP Data Acquisition Module(16 bit 8xSingle End AI(or 4xDifferential AI)+12bit 4xAI+2xDI+2xDO)
Product Introduction (NET-6000M Series)
NET-6000M Ethernet-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With Ethernet-based technology, NET-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the NET-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.
Product feature and benefits:
- 32 bits & 120M high speed CPU, the real time embedded OS.
- DI can read more than 600 times/second.
- Optocoupler isolation: Digital Input and Output.
- RS-485: Separate isolation
- Power or dual power(Analogue Modules): Independent isolation
- Surge protection: 15KV
- The analogue input: Magnetic coupling isolation and protection.
- The input voltage can be positive and negative, each channel has TVS and ESD protection.
- The measuring range can be shifted by software.
- The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
- The ID and baud rate can be adjusted by rotary button directly.
- Enclosure: shielded metal
- The differential sampling frequency can reach 50Hz/channel
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | NET-6088M | ||
| Analog Input | |||
| Input Channels | 8-ch Single End or 4-ch Differential | ||
| Input Type | Single End or Differential | ||
| Input Range |
±10V, ±5V, ±1.25V 0-20mA(External 250ohm Resistor Needed) 4-20 mA(External 250ohm Resistor Needed) |
||
| Input Impedance | > 10M(voltage), 250 ohm (current) | ||
| Resolution | 16-bit | ||
| Accuracy | ±0.01% | ||
| Sampling Rate |
All channels: 8 samples/sec Per channel: 1samples/sec |
||
| Isolation | 2500V | ||
| Protection |
Built-in TVS/ESD Protection ±4 kV Contact for each terminal |
||
| Analog Output | |||
| Output Channels | 2 | ||
| Output Range | ±10V, ±5V, 0V～5V, 0V～10V | ||
| Resolution | 12-bit | ||
| Accuracy | ±0.1% | ||
| Isolation | 2500V | ||
| Protection |
Built-in TVS/ESD Protection ±4 kV Contact for each terminal |
||
| Digital Input | |||
| Input Channels | 2 | ||
| Input Type | Dry Contact | Wet Contact | |
| On Voltage Level | Close to GND | 0V～1V DC | |
| Off Voltage Level | Open | 3V～50V DC | |
| Overvoltage Protection | +70V | ||
| Isolation | 3750Vrms | ||
| Digital Output | |||
| Output Channels | 2 | ||
| Output Type | Sink, Open Collector(NPN) | ||
| Load Voltage | Max 25V DC | ||
| Max Load Current | 100mA/channel | ||
| Isolation | 3750Vrms | ||
| Input Channels | 8 | ||
Ordering Information:
Odering Information (RS-6000M Series)
| Model | Description |
| Digital I/O | |
| NET-6011M | Ethernet Remote I/O Module with16-ch DI |
| NET-6012M | Ethernet Remote I/O Module with16-ch DO |
| NET-6013M | Ethernet Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| NET-6014M | Ethernet Remote I/O Module with 5-ch Relay(Form A) |
| NET-6015M | Ethernet Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| NET-6021M | Ethernet Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| NET-6022M | Ethernet Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| NET-6031M | Ethernet Remote I/O Module with 12bit 4-ch AO |
| NET-6032M | Ethernet Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| NET-6041M | Ethernet Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| NET-6042M | Ethernet Remote I/O Module with 5-ch TC |
| Mixed | |
| NET-6088 | Ethernet Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
Ethernet I/O Module(16 bit 16xSingle End Analog Input+8xDifferential Analog Input)
Ethernet Remote IO Module with 16 bit 6xSingle End AI+8xDifferential AI
Modbus TCP Data Acquisition Module(16 bit 16-ch Single End Analog Input+8xDifferential Analog Input)
Product Introduction (NET-6000M Series)
NET-6000M Ethernet-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With Ethernet-based technology, NET-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the NET-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.
Product feature and benefits:
- 32 bits & 120M high speed CPU, the real time embedded OS.
- DI can read more than 600 times/second.
- Optocoupler isolation: Digital Input and Output.
- RS-485: Separate isolation
- Power or dual power(Analogue Modules): Independent isolation
- Surge protection: 15KV
- The analogue input: Magnetic coupling isolation and protection.
- The input voltage can be positive and negative, each channel has TVS and ESD protection.
- The measuring range can be shifted by software.
- The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
- The ID and baud rate can be adjusted by rotary button directly.
- Enclosure: shielded metal
- The differential sampling frequency can reach 50Hz/channel
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | NET-6021M | NET-6022M | |
| Analog Input | |||
| Input Channels | 16-ch Single End or 8-ch Differential | ||
| Input Type | Single End or Differential | ||
| Input Range |
±10V, ±5V, ±1.25V 0-20mA(External 250ohm Resistor Needed) 4-20 mA(External 250ohm Resistor Needed) |
||
| Input Impedance | > 10M(voltage), 250 ohm (current) | ||
| Resolution | 12-bit | 16-bit | |
| Accuracy | ±0.1% | ±0.01% | |
| Sampling Rate |
All channels: 16 samples/sec Per channel: 1 samples/sec |
||
| Isolation | 2500V | ||
| Protection |
Built-in TVS/ESD Protection ±4 kV Contact for each terminal |
||
Ordering Information:
| Model | Description |
| Digital I/O | |
| NET-6011M | Ethernet Remote I/O Module with16-ch DI |
| NET-6012M | Ethernet Remote I/O Module with16-ch DO |
| NET-6013M | Ethernet Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| NET-6014M | Ethernet Remote I/O Module with 5-ch Relay(Form A) |
| NET-6015M | Ethernet Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| NET-6021M | Ethernet Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| NET-6022M | Ethernet Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| NET-6031M | Ethernet Remote I/O Module with 12bit 4-ch AO |
| NET-6032M | Ethernet Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| NET-6041M | Ethernet Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| NET-6042M | Ethernet Remote I/O Module with 5-ch TC |
| Mixed | |
| NET-6088 | Ethernet Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
Ethernet I/O Module(12 bit 16xSingle End Analog Input+8xDifferential Analog Input)
Ethernet Distributed Remote I/O Module with 12 bit 16xSingle End AI+8xDifferential AI
Ethernet(Modbus TCP) Data Acquisition Module(12 bit 16-ch Single End Analog InputI+8xDifferential Analog Input)
Product Introduction (NET-6000M Series)
NET-6000M Ethernet-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With Ethernet-based technology, NET-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the NET-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.
Product feature and benefits:
- 32 bits & 120M high speed CPU, the real time embedded OS.
- DI can read more than 600 times/second.
- Optocoupler isolation: Digital Input and Output.
- Power or dual power(Analogue Modules): Independent isolation
- Surge protection: 15KV
- The analogue input: Magnetic coupling isolation and protection.
- The input voltage can be positive and negative, each channel has TVS and ESD protection.
- The measuring range can be shifted by software.
- The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
- The ID and baud rate can be adjusted by rotary button directly.
- Enclosure: shielded metal
- The differential sampling frequency can reach 50Hz/channel
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | NET-6021M | NET-6022M | |
| Analog Input | |||
| Input Channels | 16-ch Single End or 8-ch Differential | ||
| Input Type | Single End or Differential | ||
| Input Range |
±10V, ±5V, ±1.25V 0-20mA(External 250ohm Resistor Needed) 4-20 mA(External 250ohm Resistor Needed) |
||
| Input Impedance | > 10M(voltage), 250 ohm (current) | ||
| Resolution | 12-bit | 16-bit | |
| Accuracy | ±0.1% | ±0.01% | |
| Sampling Rate |
All channels: 16 samples/sec Per channel: 1 samples/sec |
||
| Isolation | 2500V | ||
| Protection |
Built-in TVS/ESD Protection ±4 kV Contact for each terminal |
||
Ordering Information:
| Model | Description |
| Digital I/O | |
| NET-6011M | Ethernet Remote I/O Module with16-ch DI |
| NET-6012M | Ethernet Remote I/O Module with16-ch DO |
| NET-6013M | Ethernet Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| NET-6014M | Ethernet Remote I/O Module with 5-ch Relay(Form A) |
| NET-6015M | Ethernet Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| NET-6021M | Ethernet Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| NET-6022M | Ethernet Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| NET-6031M | Ethernet Remote I/O Module with 12bit 4-ch AO |
| NET-6032M | Ethernet Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| NET-6041M | Ethernet Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| NET-6042M | Ethernet Remote I/O Module with 5-ch TC |
| Mixed | |
| NET-6088 | Ethernet Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
