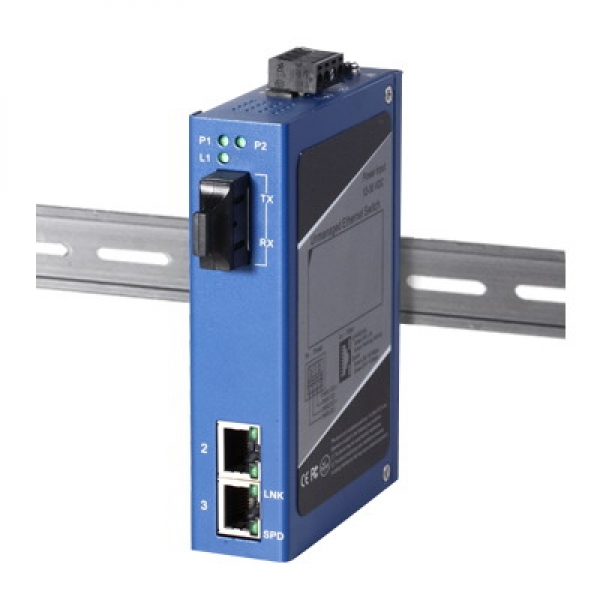

Industrial Media Converter(10/100M)
Model Number: HFD-FO-100M
The HFD Series 10/100M Auto-Sensing Ethernet Fiber Optic Converter is designed using advanced fiber optic technology. This series transmit and receive 10/100 Mbps (no adjustment is required) data over two single-mode optical fibers, extending the Ethernet transmission distance from its normal few hundred meters to 0-120 kilometers. By using optical fiber as transmission media, this series continue to perform its secured, high-speed and long-distance communication even under the adverse condition such as lighting, power surge and electromagnetic interference; Substantial saving on lighting and power surge protection equipments if copper wires were used.
The HFD Series Industrial media converter is fully assembled using SMT components for stability and reliability.The HFD-FO-100M Fiber Media Converter supports the CC Link Porotol.
Technical Specification:
|
ETHERNET |
|
|
Supporting standards |
IEEE802.3 10Base-T, 100Base-T |
|
Data Rate |
10/100Mbps auto-sensing, Full Duplex or Half Duplex |
|
Physical Interface |
RJ45, DCE interface |
|
OPTICAL |
|
|
Number of Fibers |
2 or 1 |
|
Wavelength |
SM:1310nm, MM:850nm |
|
Fiber Type |
9/125μ m(SM) 62.5/125μ m(MM) |
|
Distance |
0 ~ 20km(SM), 0~2km(MM) |
|
Connector Type |
ST/FC/SC |
|
GENERAL |
|
|
Operating Temperature |
-40 ~ 70C / -40 ~ +158F |
|
Relative Humidity |
0 ~ 95% non-condensing |
|
Mean Time Between Failure (MTBF) |
> 600, 000hrs |
|
Power Supply Adaptors |
AC 220V 110v or DC+110V, +5V, +12V, +24V, +48V Option |
|
Enclosure Color |
Black or Blue |
|
Dimensions ( H× W× D ) |
DIN Rail 120*30*88mm |
Odering Information:
|
Model Number |
Description |
Fiber No. |
Fiber Mode |
Fiber Connector |
|
HFD-FO-100M-P1M |
Point to point Link,Single Fiber(BI-DI), 2km |
1 |
Multi Mode |
ST/SC/FC |
|
HFD-FO-100M-P2M |
Point to point Link,Dual Fiber, 2km |
2 |
Multi Mode |
ST/SC/FC |
|
HFD-FO-100M-P1S |
Point to point Link,Single Fiber(BI-DI), 20km |
1 |
Single Mode |
ST/SC/FC |
|
HFD-FO-100M-P2S |
Point to point Link,Dual Fiber, 20km |
2 |
Single Mode |
ST/SC/FC |
