Multi-function Power Meter

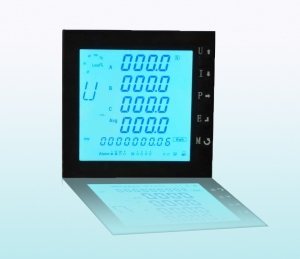

BPM-300 Series Multifunctional Power Meter(3-Phase Watt-hour Smart Meter)
The BPM-300 Series Multifunction Power Meter was developed for Power Automation, Mining Industry,Oil & Gas,Steel Plant,Railway System,Utility and Smart Buildings that has high automations.The BPM-300 Power Meter can accurately measure more than 30 kinds of power parameters and has the functions as harmonic wave analysis, digital Input(DI),Analog Output(AI),remote communication and others.
Product Feature and Benefit:
High Accuracy:
The BPM-300 Multifunction Power Meter has strong measuring and calculation functions, which can measure more than 30 kinds of power parameter as voltage,current,power,phase position,frequency,energy and others and it has such functions as harmonic wave anakysis,Max/Min value statistics,over limit alarm,energy accumulation and others. The measured accuracy can all reach 0.2% and the energy’s accuracy can even reach 0.2S.
Compact and Easy Installation
Small size(96x96mm),with mount bracket,no extra mounting tool needed.
Easy Wiring Connection
Temperature Compensation Function(Our Patent)
Inside the BPM-300,there are 2 temperature sensors whose accuracy is ±0.5℃,it can measure the work environment’s temperature and with the help of special formula,it can reduce the influence to the product by the environment to the minimum.Thanks to this technology, the meter’s temperature feature can reach ≤50ppm,which is much higher than standard.
Strong anti-interference ability
The BPM-300 passed IEC testings and it’s in compliance with EMC-4 standard.
Wide Power input Range:
85-264V AC/DC power input,suitable for all countries in the world.
Work temperature: -10℃～+55℃
Storage temperature: -25℃～+70℃
Humidity: 5%～95%(No-condensing)
The functions BPM-300 support
| Function | Parameter | |
| Real-time measurement value | Phase Voltage | VA,VB,VC,Vavg |
| Line Voltage | VAB,VBC,VCA,Vavg | |
| Current | IA,IB,IC,Iavg | |
| Active Power | Pa,Pb,Pc,Psum | |
| Reactive Power | Qa,Qb,Qc,Qsum | |
| Apparent Power | Sa,Sb,Sc,Ssum | |
| Power Factor | PFa, PFb, PFc, PFavg | |
| Frequency | F | |
| Energy | Active Energy | Imp Exp Total Net |
| Reactive Energy | Imp Exp Total Net | |
| Power quality | Voltage and current’s each harmonic wave content 2~31 each harmonic wave compotent | |
| Statistics and record | The max value of all parameters | |
| The Min value of all parameters | ||
| I/O | DI | |
| DO | ||
| Energy Pulse | ||
| AO | ||
| Alarm | Alarm history record | |
| Over limit alarm | ||
| Communication | RS485 Modbus RTU Protocol | |
| Time | Real time clock |
CAN Remote I/O Module(5xTC-Thermocouple)

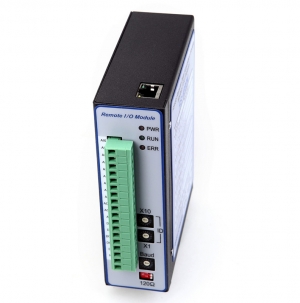

CAN Remote I/O Module with 5xTC
Product Introduction (CAN-6000T Series)
CAN-6000T CAN-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With CAN-based technology, CAN-6000T series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications.
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | CAN-6042T | |
| Thermocouple Input | ||
| Input Channels: | 5 | |
| Input Type | J | -210℃~1200℃ |
| K | -200℃~1370℃ | |
| E | -100℃~1000℃ | |
| T | -200℃~400℃ | |
| N | -200℃~1300℃ | |
| B | 650℃~1800℃ | |
| R | 0℃~1750℃ | |
| S | 0℃~1760℃ | |
| Input Impedance: | 1.5M | |
| ADC Resolution | 24-bit | |
| Temperature Resolution | 0.1℃ | |
| Accuracy: | ±0.1% or Better | |
| Sampling Rate: |
All channels: 5 samples/sec Per channel: 1samples/sec |
|
| Isolation | 2500V | |
| Protection |
Built-in TVS/ESD Protection ±4 kV Contact for each terminal |
|
Ordering Information:
| Model | Description |
| Digital I/O | |
| CAN-6011T | CAN Remote I/O Module with16-ch DI |
| CAN-6012T | CAN Remote I/O Module with16-ch DO |
| CAN-6013T | CAN Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| CAN-6014T | CAN Remote I/O Module with 5-ch Relay(Form A) |
| CAN-6015T | CAN Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| CAN-6021T | CAN Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| CAN-6022T | CAN Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| CAN-6031T | CAN Remote I/O Module with 12bit 4-ch AO |
| CAN-6032T | CAN Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| CAN-6041M | CAN Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| CAN-6042M | CAN Remote I/O Module with 5-ch TC |
| Mixed | |
| CAN-6088 | CAN Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
CAN Remote I/O Module(5xRTD)
CAN Remote I/O Module with 5-Ch RTD
Product Introduction (CAN-6000T Series)
CAN-6000T CAN-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With CAN-based technology, CAN-6000T series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications.
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | CAN-6041T |
| RTD Input | |
| Input Channels | 5 |
| Input Connections | 2 or 3 wire |
| Input Type |
PT100, PT200, PT500，PT1000（-200℃～+850℃） Cu50，Cu100（-50℃～+150℃） |
| Input Impedance | 1.5M |
| ADC Resolution | 24-bit |
| Temperature Resolution | 0.1℃ |
| Accuracy | ±0.1% |
| Sampling Rate |
All channels: 5 samples/sec Per channel: 1samples/sec |
| Isolation | 2500V |
| Protection |
Built-in TVS/ESD Protection ±4 kV Contact for each terminal |
Ordering Information:
| Model | Description |
| Digital I/O | |
| CAN-6011T | CAN Remote I/O Module with16-ch DI |
| CAN-6012T | CAN Remote I/O Module with16-ch DO |
| CAN-6013T | CAN Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| CAN-6014T | CAN Remote I/O Module with 5-ch Relay(Form A) |
| CAN-6015T | CAN Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| CAN-6021T | CAN Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| CAN-6022T | CAN Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| CAN-6031T | CAN Remote I/O Module with 12bit 4-ch AO |
| CAN-6032T | CAN Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| CAN-6041M | CAN Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| CAN-6042M | CAN Remote I/O Module with 5-ch TC |
| Mixed | |
| CAN-6088 | CAN Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
CAN I/O Module(16 bit 4xAnalog Output(AO)
CAN Distributed Remote I/O Module with 16 bit 4xAnalog Output
CAN Bus Data Acquisition Module(16 bit 4xAI)
Product Introduction (CAN-6000T Series)
CAN-6000T CAN-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With CAN-based technology, CAN-6000T series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications.
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | CAN-6031T | CAN-6032T | |
| Analog Output | |||
| Output Channels | 4 | ||
| Output Range |
±10V, ±5V, 0V～5V, 0V～10V 0～20mA(Built-in 250ohm Resistor) 4～20mA(Built-in 250ohm Resistor) |
||
| Resolution | 12-bit | 16-bit | |
| Accuracy | ±0.1% | ±0.01% | |
| Max Current Load Resistance |
Internal power +15 V: 500 Ω. External power +24 V: 1000 Ω. |
||
| Isolation | 2500V | ||
| Protection |
Built-in TVS/ESD Protection ±4 kV Contact for each terminal |
||
Ordering Information:
Odering Information (CAN-6000T CAN Bus Series)
| Model | Description |
| Digital I/O | |
| CAN-6011T | CAN Remote I/O Module with16-ch DI |
| CAN-6012T | CAN Remote I/O Module with16-ch DO |
| CAN-6013T | CAN Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| CAN-6014T | CAN Remote I/O Module with 5-ch Relay(Form A) |
| CAN-6015T | CAN Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| CAN-6021T | CAN Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| CAN-6022T | CAN Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| CAN-6031T | CAN Remote I/O Module with 12bit 4-ch AO |
| CAN-6032T | CAN Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| CAN-6041M | CAN Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| CAN-6042M | CAN Remote I/O Module with 5-ch TC |
| Mixed | |
| CAN-6088 | CAN Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
CAN I/O Module(12 bit 4 Ch AO)
CAN Distributed Remote I/O Module with 12 bit 4xAnalog Output
Product Introduction (CAN-6000T Series)
CAN-6000T CAN-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With CAN-based technology, CAN-6000T series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications.
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | CAN-6031T | CAN-6032T | |
| Analog Output | |||
| Output Channels | 4 | ||
| Output Range |
±10V, ±5V, 0V～5V, 0V～10V 0～20mA(Built-in 250ohm Resistor) 4～20mA(Built-in 250ohm Resistor) |
||
| Resolution | 12-bit | 16-bit | |
| Accuracy | ±0.1% | ±0.01% | |
| Max Current Load Resistance |
Internal power +15 V: 500 Ω. External power +24 V: 1000 Ω. |
||
| Isolation | 2500V | ||
| Protection |
Built-in TVS/ESD Protection ±4 kV Contact for each terminal |
||
Ordering Information:
| Model | Description |
| Digital I/O | |
| CAN-6011T | CAN Remote I/O Module with16-ch DI |
| CAN-6012T | CAN Remote I/O Module with16-ch DO |
| CAN-6013T | CAN Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| CAN-6014T | CAN Remote I/O Module with 5-ch Relay(Form A) |
| CAN-6015T | CAN Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| CAN-6021T | CAN Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| CAN-6022T | CAN Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| CAN-6031T | CAN Remote I/O Module with 12bit 4-ch AO |
| CAN-6032T | CAN Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| CAN-6041M | CAN Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| CAN-6042M | CAN Remote I/O Module with 5-ch TC |
| Mixed | |
| CAN-6088 | CAN Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
CAN I/O Module(16 bit 8xSingle End AI(or 4xDifferential AI)+12bit 4xAI+2xDI+2xDO)
CAN Bus IO Module(16 bit 8xSingle End AI(or 4xDifferential AI)+12bit 4xAI+2xDI+2xDO)
Product Introduction (CAN-6000T Series)
CAN-6000T CAN-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With CAN-based technology, CAN-6000T series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications.
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | CAN-6088 | ||
| Analog Input | |||
| Input Channels | 8-ch Single End or 4-ch Differential | ||
| Input Type | Single End or Differential | ||
| Input Range |
±10V, ±5V, ±1.25V 0-20mA(External 250ohm Resistor Needed) 4-20 mA(External 250ohm Resistor Needed) |
||
| Input Impedance | > 10M(voltage), 250 ohm (current) | ||
| Resolution | 16-bit | ||
| Accuracy | ±0.01% | ||
| Sampling Rate |
All channels: 8 samples/sec Per channel: 1samples/sec |
||
| Isolation | 2500V | ||
| Protection |
Built-in TVS/ESD Protection ±4 kV Contact for each terminal |
||
| Analog Output | |||
| Output Channels | 2 | ||
| Output Range | ±10V, ±5V, 0V～5V, 0V～10V | ||
| Resolution | 12-bit | ||
| Accuracy | ±0.1% | ||
| Isolation | 2500V | ||
| Protection |
Built-in TVS/ESD Protection ±4 kV Contact for each terminal |
||
| Digital Input | |||
| Input Channels | 2 | ||
| Input Type | Dry Contact | Wet Contact | |
| On Voltage Level | Close to GND | 0V～1V DC | |
| Off Voltage Level | Open | 3V～50V DC | |
| Overvoltage Protection | +70V | ||
| Isolation | 3750Vrms | ||
| Digital Output | |||
| Output Channels | 2 | ||
| Output Type | Sink, Open Collector(NPN) | ||
| Load Voltage | Max 25V DC | ||
| Max Load Current | 100mA/channel | ||
| Isolation | 3750Vrms | ||
| Input Channels | 8 | ||
Ordering Information:
| Model | Description |
| Digital I/O | |
| CAN-6011T | CAN Remote I/O Module with16-ch DI |
| CAN-6012T | CAN Remote I/O Module with16-ch DO |
| CAN-6013T | CAN Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| CAN-6014T | CAN Remote I/O Module with 5-ch Relay(Form A) |
| CAN-6015T | CAN Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| CAN-6021T | CAN Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| CAN-6022T | CAN Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| CAN-6031T | CAN Remote I/O Module with 12bit 4-ch AO |
| CAN-6032T | CAN Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| CAN-6041M | CAN Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| CAN-6042M | CAN Remote I/O Module with 5-ch TC |
| Mixed | |
| CAN-6088 | CAN Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
CAN I/O Module(16 bit 16xSingle End Analog Input+8xDifferential AI)
CAN Remote I/O Module with 16 bit 6xSingle End AI+8xDifferential AI
Product Introduction (CAN-6000T Series)
CAN-6000T CAN-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With CAN-based technology, CAN-6000T series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications.
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | CAN-6021T | CAN-6022T | |
| Analog Input | |||
| Input Channels | 16-ch Single End or 8-ch Differential | ||
| Input Type | Single End or Differential | ||
| Input Range |
±10V, ±5V, ±1.25V 0-20mA(External 250ohm Resistor Needed) 4-20 mA(External 250ohm Resistor Needed) |
||
| Input Impedance | > 10M(voltage), 250 ohm (current) | ||
| Resolution | 12-bit | 16-bit | |
| Accuracy | ±0.1% | ±0.01% | |
| Sampling Rate |
All channels: 16 samples/sec Per channel: 1 samples/sec |
||
| Isolation | 2500V | ||
| Protection |
Built-in TVS/ESD Protection ±4 kV Contact for each terminal |
||
Ordering Information:
| Model | Description |
| Digital I/O | |
| CAN-6011T | CAN Remote I/O Module with16-ch DI |
| CAN-6012T | CAN Remote I/O Module with16-ch DO |
| CAN-6013T | CAN Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| CAN-6014T | CAN Remote I/O Module with 5-ch Relay(Form A) |
| CAN-6015T | CAN Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| CAN-6021T | CAN Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| CAN-6022T | CAN Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| CAN-6031T | CAN Remote I/O Module with 12bit 4-ch AO |
| CAN-6032T | CAN Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| CAN-6041M | CAN Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| CAN-6042M | CAN Remote I/O Module with 5-ch TC |
| Mixed | |
| CAN-6088 | CAN Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
CAN I/O Module(12 bit 16xSingle End Analog Input+8xDifferential AI)
CAN Remote I/O Module with 12 bit 16xSingle End AI+8xDifferential AI
Product Introduction (CAN-6000T Series)
CAN-6000T CAN-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With CAN-based technology, CAN-6000T series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications.
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | CAN-6021T | CAN-6022T | |
| Analog Input | |||
| Input Channels | 16-ch Single End or 8-ch Differential | ||
| Input Type | Single End or Differential | ||
| Input Range |
±10V, ±5V, ±1.25V 0-20mA(External 250ohm Resistor Needed) 4-20 mA(External 250ohm Resistor Needed) |
||
| Input Impedance | > 10M(voltage), 250 ohm (current) | ||
| Resolution | 12-bit | 16-bit | |
| Accuracy | ±0.1% | ±0.01% | |
| Sampling Rate |
All channels: 16 samples/sec Per channel: 1 samples/sec |
||
| Isolation | 2500V | ||
| Protection |
Built-in TVS/ESD Protection ±4 kV Contact for each terminal |
||
Ordering Information:
| Model | Description |
| Digital I/O | |
| CAN-6011T | CAN Remote I/O Module with16-ch DI |
| CAN-6012T | CAN Remote I/O Module with16-ch DO |
| CAN-6013T | CAN Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| CAN-6014T | CAN Remote I/O Module with 5-ch Relay(Form A) |
| CAN-6015T | CAN Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| CAN-6021T | CAN Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| CAN-6022T | CAN Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| CAN-6031T | CAN Remote I/O Module with 12bit 4-ch AO |
| CAN-6032T | CAN Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| CAN-6041M | CAN Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| CAN-6042M | CAN Remote I/O Module with 5-ch TC |
| Mixed | |
| CAN-6088 | CAN Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
CAN I/O Module(5xRelay Output 3xForm A+2xForm C)
CAN Distributed Remote I/O Module with 5-ch Relay Output(3xForm A+2xForm C)
Product Introduction (CAN-6000T Series)
CAN-6000T CAN-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With CAN-based technology, CAN-6000T series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications.
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | CAN-6014T | CAN-6015T | |
| Relay Output | |||
| Output Channels | 5 | 5 | |
| Output Type | Power Relay, Form A(SPST) | Power Relay, 3-ch Form A(SPST), 2-ch Form C(SPDT) | |
| Output Voltage | 250VAC /30VDC | ||
| Max Load Current | 3.0A/channel | ||
| Operate Time | 6ms | ||
| Release Time | 3ms | ||
| Electrical Life |
At 30 VDC / 3 A Typical 1 x 105 operations (Operating frequency 20 operations/minute) At 250 VAC/ 3 A Typical 1 x 105operations (Operating frequency 20 operations/minute) |
||
| Mechanical Life | 2x107 | ||
| Isolation | 3750Vrms | ||
Ordering Information:
| Model | Description |
| Digital I/O | |
| CAN-6011T | CAN Remote I/O Module with16-ch DI |
| CAN-6012T | CAN Remote I/O Module with16-ch DO |
| CAN-6013T | CAN Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| CAN-6014T | CAN Remote I/O Module with 5-ch Relay(Form A) |
| CAN-6015T | CAN Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| CAN-6021T | CAN Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| CAN-6022T | CAN Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| CAN-6031T | CAN Remote I/O Module with 12bit 4-ch AO |
| CAN-6032T | CAN Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| CAN-6041M | CAN Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| CAN-6042M | CAN Remote I/O Module with 5-ch TC |
| Mixed | |
| CAN-6088 | CAN Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
CAN I/O Module(5xRelay Output Form A)
CAN Distributed Remote I/O Module with 5-ch Relay Output(Form A)
CAN Bus Data Acquisition Module(5xRelay Output)
Product Introduction (CAN-6000T Series)
CAN-6000T CAN-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With CAN-based technology, CAN-6000T series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications.
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | CAN-6014T | CAN-6015T | |
| Relay Output | |||
| Output Channels | 5 | 5 | |
| Output Type | Power Relay, Form A(SPST) | Power Relay, 3-ch Form A(SPST), 2-ch Form C(SPDT) | |
| Output Voltage | 250VAC /30VDC | ||
| Max Load Current | 3.0A/channel | ||
| Operate Time | 6ms | ||
| Release Time | 3ms | ||
| Electrical Life |
At 30 VDC / 3 A Typical 1 x 105 operations (Operating frequency 20 operations/minute) At 250 VAC/ 3 A Typical 1 x 105operations (Operating frequency 20 operations/minute) |
||
| Mechanical Life | 2x107 | ||
| Isolation | 3750Vrms | ||
Ordering Information:
| Model | Description |
| Digital I/O | |
| CAN-6011T | CAN Remote I/O Module with16-ch DI |
| CAN-6012T | CAN Remote I/O Module with16-ch DO |
| CAN-6013T | CAN Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| CAN-6014T | CAN Remote I/O Module with 5-ch Relay(Form A) |
| CAN-6015T | CAN Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| CAN-6021T | CAN Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| CAN-6022T | CAN Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| CAN-6031T | CAN Remote I/O Module with 12bit 4-ch AO |
| CAN-6032T | CAN Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| CAN-6041M | CAN Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| CAN-6042M | CAN Remote I/O Module with 5-ch TC |
| Mixed | |
| CAN-6088 | CAN Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
