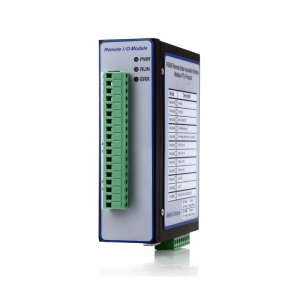

Modbus RS-485 Remote I/O Module(16 bit 16xSingle End AI+8xDifferential AI)

Product Introduction (RS-6000M Series)

RS-6000M RS485-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With RS485-based technology, RS-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the RS-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.

Product Features:

Hardware Specification:

I/O Specification:

Ordering Information:

Modbus RS-485 Remote I/O Module(12 bit 16xSingle End AI+8xDifferential AI)

Analog input RS-485 IO Module

Product Introduction (RS-6000M Series)

RS-6000M RS485-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With RS485-based technology, RS-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the RS-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.

Product Features:

Hardware Specification:

I/O Specification:

Ordering Information:

RS-485 Modbus Remote I/O Module(5 Relay Output+3 Form A+2 Form C)

Product Introduction (RS-6000M Series)

RS-6000M RS485-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With RS485-based technology, RS-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the RS-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.

Product Features:

Hardware Specification:

I/O Specification:

Ordering Information:

Modbus RS-485 Remote I/O Module(5xRelay Output Form A)

Product Introduction (RS-6000M Series)

RS-6000M RS485-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With RS485-based technology, RS-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the RS-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.

Product Features:

Hardware Specification:

I/O Specification:

Ordering Information:

RS-485(Modbus RTU) Remote IO Module(8 DI+8 DO)

Product Introduction (RS-6000M Series)

RS-6000M RS485-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With RS485-based technology, RS-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the RS-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.

Product Features:

Hardware Specification:

I/O Description:

 Ordering Information:

GPS Synchronized Clock with NTP and IRIG-B

The BE-GPS-NB012 Industrial Grade GPS NTP/SNTP & IRIG-B Server that we manufactured are specifically for electric power system, automatizatio system, telecom system,CCTV and traffic system that need high-precise time requirer．Our system is based on GPS, and the precision of NTP time is 10ms and IRIG-B 1us.The facility is secondary developed with the GPS receiver that made by the special factory of United States. It can track 12 GPS satellites at the same time, and selects the best satellite automaticly for locating and timing．It outputs UTC time and IRIG-B time codes ,and the synchronous precision is 1µs.The BE-GPS-NB012 is quite cost effective and high quality,its highest record of MTBF is 12 years.

Specifications:

• Receiving frequency:1575.42MHZ, it can track 8-12 GPS satellites at the same time．
• Antenna radio sentivity:-166dbw, with 30 metres wire.If the wire is not long enough, customer can prolong it by himself by selection of coaxial-cable that attenuation of 1．56GHZ is not more than 0.7db per metre, the attenuation of prolonged cable is not more than 5db．
• Capture time: from 20 seconds to 2 minutes ( the outputs of synchronous clock are all isolated by photoelectricity coupling and output 60ns)
• Industry frequency clock: the clock that is promoted by industry electricity is synchronous with standard clock when power is on．
• Clock difference: that is standard clock minus industry frequency clock,synchronous time difference is zero,precision is 20 ms．
• Longitude, latitude,altitude: where the electric power synchronous clock locates．
• Display: 14 bits LCD display that includes cycle,date,time,longitude,latitude,altitude,time zone code,satellites number locked,industry frequency clock,clock difference (standard clock minus industry frequency clock)．
• Time Codes Output: 1 or 2xNTP/SNTP, 2xIRIG-B(BNC),1xIRIG-B(Terminal Block),1xRS-232(DB9),1xRS-232(Terminal),1xRS-485(Terminal),2x1PPS(Terminal),1x1PPM(Terminal)
• Dual 2 redundant power supplies supported(Optional)
• Power: AC110V to 240V or DC12V to 48V, 10%, Less than 5W．
• Size: standard industry 1U box．

Feature and Benefits:

• The GPS NTP/SNTP/IRIG-B time server supports GPS or BD satellite systems.
• TheGPS NTP/SNTP/IRIG-B time server incudes master clock, 30m long GPS antenna,software and mount brackets.
• NTP/SNTP,RS485/232 and Irig-B output ports can be extended according to customer's requests.Both GPS time server and power supply can made to be redundant.
• Antenna+30m cable,mount kits and software are all free.
• Grey color Enclosure: 1U chassis
• Cost-effective
• Five years warranty & life long maintenance
• Small quantity OEM is acceptable
• Work Temperature:-20˚C to 75˚C
• Storage Temperature:-40 to 85℃
• Ambient Relative Humidity: 10 to 95%(Non-condensing)

Application:

• Substation Automation(SCADA/EMS)
• Video Surveillance(CCTV system)
• Intelligent Traffic System
• Telecommunication
• Other fields that require high time accuracy

GPS NTP Time Server(BE-NTP-011)

The Synch(BE-NTP-011) Industrial Grade GPS NTP Time Server that we manufactured are specifically for electric power system, automatizatio system, telecom system,CCTV and traffic system that need high-precise time requirer．Our system is based on GPS, and the precision of NTP time output is 100ns and receive accuracy can be 1ms and IRIG-B 1us.The facility is secondary developed with the GPS receiver that made by the special factory of United States. It can track 12 GPS satellites at the same time, and selects the best satellite automaticly for locating and timing．It outputs UTC time and IRIG-B time codes ,and the synchronous precision is 1µs.The BE-NTP-011 is quite cost effective and high quality,its highest record of MTBF is 12 years.

Specifications:

•Receiving frequency:1575.42MHZ, it can track 8-12 GPS satellites at the same time．

•Antenna radio sentivity:-166dbw, with 30 metres wire.If the wire is not long enough, customer can prolong it by himself by selection of coaxial-cable that attenuation of 1．56GHZ is not more than 0.7db per metre, the attenuation of prolonged cable is not more than 5db．

•Capture time: from 20 seconds to 2 minutes ( the outputs of synchronous clock are all isolated by photoelectricity coupling and output 60ns)

•Industry frequency clock: the clock that is promoted by industry electricity is synchronous with standard clock when power is on．

•Clock difference: that is standard clock minus industry frequency clock,synchronous time difference is zero,precision is 20 ms．

•Longitude, latitude,altitude: where the electric power synchronous clock locates．

•Display: 14 bits LCD display that includes cycle,date,time,longitude,latitude,altitude,time zone code,satellites number locked,industry frequency clock,clock difference (standard clock minus industry frequency clock)．

•Time Codes Output: 1 or 2xNTP/SNTP, 2xIRIG-B(BNC),1xIRIG-B(Terminal Block),1xRS-232(DB9),1xRS-232(Terminal),1xRS-485(Terminal),2x1PPS(Terminal),1x1PPM(Terminal)

•Dual 2 redundant power supplies supported(Optional)

•Power: AC110V to 240V or DC12V to 48V, 10%, Less than 15W．

•Size: standard industry 1U box．

Feature and Benefits:

•BE GPS NTP/SNTP time server supports GPS or BD satellite systems.

•TheGPS NTP/SNTP time server incudes master clock, 30m long GPS antenna,software and mount brackets.

•NTP/SNTP,RS485/232 and Irig-B output ports can be extended according to customer's requests.Both GPS time server and power supply can made to be redundant.

•Antenna+30m cable,mount kits and software are all free.

•Grey color Enclosure: 1U chassis

•Cost-effective

•Five years warranty & life long maintenance

•Small quantity OEM is acceptable

•Work Temperature:-20˚C to 75˚C

•Storage Temperature:-40 to 85℃

•Ambient Relative Humidity: 10 to 95%(Non-condensing)

Application:

•Substation Automation(SCADA/EMS)

•Video Surveillance(CCTV system)

•Intelligent Traffic System

•Telecommunication

•Bank Time Systems

•Other fields that require high time accuracy

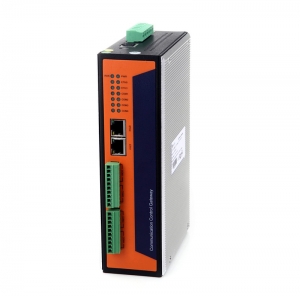

IEC-60870-5-104/Modbus Gateway

BUE-801A series IEC-104 to Modbus Gateways can provides both industrial communication device and solution of the whole industrial automation system,which plays more important roles in industrial control and automation,especially in the substation automation.The IEC-60870-5 sub protocols can communicate with each other,eg. The BUE-801A supports IEC-101 to IEC-102,IEC-101 to IEC-103,IEC-101 to IEC-104,IEC-102 to IEC-103,IEC-102 to IEC-104,IEC-103 to IEC-104, IEC-101 to Modbus RTU/TCP,IEC-102 to Modbus RTU/TCP,IEC-103 to Modbus RTU/TCP, IEC-104 to Modbus RTU/TCP and IEC-101/102/103/104 to IEC-61850 and other substation communication protocols.

1.Communication function:

Protocol conversion:

Standard protocols that BUE-801A support: UCA2,OPC,TCP/IP, Serial, DNP3,OPC, Modbus RTU/TCP, IEC60870-5 series(IEC101,IEC102,IEC103,IEC104), IEC61850

Non-standard protocol: DC screen,power meter,safety equipments.The different protocols of data can convert with each other in the BUE-801A.
Data processing:

Digital processing: signal acquisition & transmission,anti-shake,singnal maintenance, timing alarm, quality judgment.
Analog processing: multiplication coefficient, residual cleared, anti-mutation, quality judgment,etc.

Point table custom and information split:

In the BUE-801A system it provides different data forwarding point tables,different channels’ protocol can forward and each uses different data forwarding table. The same data can be submitted to the upper machine in the form of different value.

Dual channel processing:

BUE-801A Supports the system with dual channel mode and the upper machine communication, including fully redundant dual channel way, communication link redundancy, main equipment and so on.

Measuring point self description:

BUE-801A supports self description of data point, which is convenient for maintenance and debugging.

2.Advanced application:

Data calculation:

BUE-801A provides standard calculation formula and take the processing of data in the way of addition, subtraction, multiplication, division, logic judgment (including greater than, less than, equal to, is not equal to, greater than or equal to, less than or equal to, logic and logic, logic or, not), sine, cosine, square root, take maximum, minimum, average calculation.

Equipment automatic control can be set up:

BUE-801A provides the setting of basic control logic, timing or logical calculation according to the real-time data of on-site equipment start-stop switch quantity control and analog control, such as temperature, pressure, etc.

Advanced equipment control integration

3.Management function:

Debugging management:

BUE-801A provides all kinds of debugging methods and management, including remote debugging, intelligent device simulation, data simulation, control block, data browsing, message and debugging information monitoring, message storage and playback, flow rate and bit error rate statistics.

Equipment management:

Equipment management functions includes: remote diagnosis and maintenance, hardware watchdog, custom information indicator, main standby switch management etc.

Time synchronization:

BUE-801A can receive the time code from time servers,it can synchronizes time in the format of IRIG-B and NTP/SNTP.

4.System feature:

Low latency: 5 to 50ms latency.

Strong data processing ability.

Reliable communication management

5. Technical specifications：
Hardware：
10/100MTCP/IP: 2-6 nos
RS422/232/485 4-16 nos
DI/DO 8 nos
LED lights: 8nos
Wireless(GPRS/Zigbee/wifi/BD) 1 nos

Software：
Maximum channels：200
Maximum digital number/channel: 65536
Maximum analog number/channel: 65536
Maximum electric degree/channel： 65536
Maximum output/channel： 65536
Maximum analog output/channel： 65536
Data forwarding base： 4
Minimum data processing lantency： 5ms
Time synchronization precision：<1ms(Hardware synchronization)

Technical specs：

400Mhz Freescale MPC8308 CPU

128M DDR2 Memory

128M Nand Flash

2 Ethernet Ports

4 RS-232/485 Isolation Serial Ports

DIN-Rail Mount
