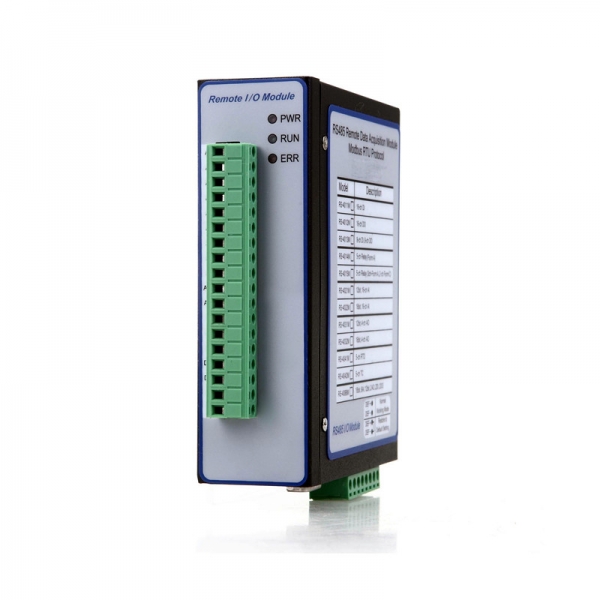

Modbus RS-485 Remote I/O Module(5xRelay Output Form A)
Product Introduction (RS-6000M Series)
RS-6000M RS485-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With RS485-based technology, RS-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the RS-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.
Product Features:
- 32 bits & 120M high speed CPU, the real time embedded OS.
- DI can read more than 600 times/second.
- Optocoupler isolation: Digital Input and Output.
- RS-485: Separate isolation
- Power or dual power(Analogue Modules): Independent isolation
- Surge protection: 15KV
- The analogue input: Magnetic coupling isolation and protection.
- The input voltage can be positive and negative, each channel has TVS and ESD protection.
- The measuring range can be shifted by software.
- The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
- The ID and baud rate can be adjusted by rotary button directly.
- Enclosure: shielded metal
- The differential sampling frequency can reach 50Hz/channel
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | RS-6014M | RS-6015M | |
| Relay Output | |||
| Output Channels | 5 | 5 | |
| Output Type | Power Relay, Form A(SPST) | Power Relay, 3-ch Form A(SPST), 2-ch Form C(SPDT) | |
| Output Voltage | 250VAC /30VDC | ||
| Max Load Current | 3.0A/channel | ||
| Operate Time | 6ms | ||
| Release Time | 3ms | ||
| Electrical Life |
At 30 VDC / 3 A Typical 1 x 105 operations (Operating frequency 20 operations/minute) At 250 VAC/ 3 A Typical 1 x 105operations (Operating frequency 20 operations/minute) |
||
| Mechanical Life | 2x107 | ||
| Isolation | 3750Vrms | ||
Ordering Information:
| Model | Description |
| Digital I/O | |
| RS-6011M | RS485 Remote I/O Module with16-ch DI |
| RS-6012M | RS485 Remote I/O Module with16-ch DO |
| RS-6013M | RS485 Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| RS-6014M | RS485 Remote I/O Module with 5-ch Relay(Form A) |
| RS-6015M | RS485 Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| RS-6021M | RS485 Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| RS-6022M | RS485 Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| RS-6031M | RS485 Remote I/O Module with 12bit 4-ch AO |
| RS-6032M | RS485 Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| RS-6041M | RS485 Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| RS-6042M | RS485 Remote I/O Module with 5-ch TC |
| Mixed | |
| RS-6088 | RS485 Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
