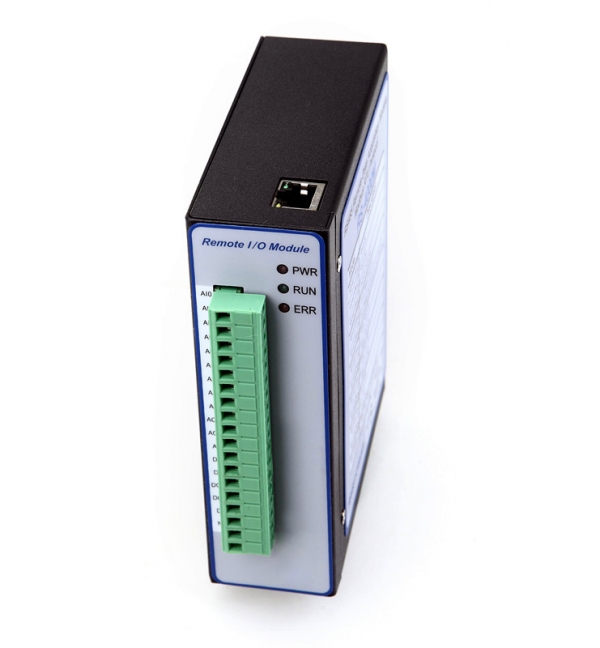

Ethernet Distributed Remote I/O Module with 12 bit 16xSingle End AI+8xDifferential AI
Ethernet(Modbus TCP) Data Acquisition Module(12 bit 16-ch Single End Analog InputI+8xDifferential Analog Input)
Product Introduction (NET-6000M Series)
NET-6000M Ethernet-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With Ethernet-based technology, NET-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the NET-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.
Product feature and benefits:
- 32 bits & 120M high speed CPU, the real time embedded OS.
- DI can read more than 600 times/second.
- Optocoupler isolation: Digital Input and Output.
- Power or dual power(Analogue Modules): Independent isolation
- Surge protection: 15KV
- The analogue input: Magnetic coupling isolation and protection.
- The input voltage can be positive and negative, each channel has TVS and ESD protection.
- The measuring range can be shifted by software.
- The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
- The ID and baud rate can be adjusted by rotary button directly.
- Enclosure: shielded metal
- The differential sampling frequency can reach 50Hz/channel
Hardware Specification:
System | |||
CPU | 32-bit 120MIPS CPU | ||
Operation System | Real-Time | ||
Watchdog | Yes | ||
Communication | RS-6000M | CAN-6000T | NET-6000M |
RS485 | CAN |
Ethernet 10/100 Base-TX |
|
LED Display | |||
Power Indicator | Red | ||
Run Indicator | Green | ||
Error Indicator | Red | ||
Link Indicator | Green | ||
Act Indicator | Yellow | ||
Mechanical | |||
Dimensions (W x H x D)(mm) |
140*110*40 | ||
Installation | DIN-Rail mounting | ||
Environment | |||
Operating Temperature | -20℃~+70℃ | ||
Storage Temperature | -30℃~+80℃ | ||
Power Requirements | |||
Power Input | +9V~30V DC | ||
Power Consumption | <3W |
I/O Specification:
Model | NET-6021M | NET-6022M | |
Analog Input | |||
Input Channels | 16-ch Single End or 8-ch Differential | ||
Input Type | Single End or Differential | ||
Input Range |
±10V, ±5V, ±1.25V 0-20mA(External 250ohm Resistor Needed) 4-20 mA(External 250ohm Resistor Needed) |
||
Input Impedance | > 10M(voltage), 250 ohm (current) | ||
Resolution | 12-bit | 16-bit | |
Accuracy | ±0.1% | ±0.01% | |
Sampling Rate |
All channels: 16 samples/sec Per channel: 1 samples/sec |
||
Isolation | 2500V | ||
Protection |
Built-in TVS/ESD Protection ±4 kV Contact for each terminal |
Ordering Information:
Model | Description |
Digital I/O | |
NET-6011M | Ethernet Remote I/O Module with16-ch DI |
NET-6012M | Ethernet Remote I/O Module with16-ch DO |
NET-6013M | Ethernet Remote I/O Module with 8-ch DI and 8-ch DO |
Relay Output | |
NET-6014M | Ethernet Remote I/O Module with 5-ch Relay(Form A) |
NET-6015M | Ethernet Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
Analog Input | |
NET-6021M | Ethernet Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
NET-6022M | Ethernet Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
Analog Output | |
NET-6031M | Ethernet Remote I/O Module with 12bit 4-ch AO |
NET-6032M | Ethernet Remote I/O Module with 16bit 4-ch AO |
RTD | |
NET-6041M | Ethernet Remote I/O Module with 5-ch RTD |
Thermocouple | |
NET-6042M | Ethernet Remote I/O Module with 5-ch TC |
Mixed | |
NET-6088 | Ethernet Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
