Calibration Cooling & Heating Thermostatic Bath (BRHTS Series| -40~300℃)

Product Description

Heating and cooling calibration thermostatic bath is a kind of integrated self-operated thermostatic temperature controller with a heating and cooling system, the temperature ranges from - 40 ℃ to 300 ℃. The compressor high temperature drop function allows you to return the test easily. PID temperature control technology is adopted in the controlling part, and the temperature fluctuation can reach 0.01 c.

Product Features

1. The integrated design with cooling and heating system saves the limited laboratory space.
2. Temperature control system adopts PID temperature control technology, precision can reach 0.01 ℃.
3. Air - cooled compressor is adopted for refrigeration with high speed and low noise.
4. Standard calibrated cartridge for thermometer, platinum resistance, thermocouple, etc
5. Inside groove adopts arc lateral mixing structure, the structure design of precision and enhance the uniformity of the temperature field, can reach 0.01 ℃.
6. RS232 or RS485 communication interface can be optional to realize data transmission with PC or PLC, remote control.
7. Standard calibrated cartridge for thermometer, platinum resistance, thermocouple, etc.
8. The refrigeration system has the protection of over heat and over current, the control system has the alarm of over temperature, the upper and lower limit of over temperature alarm temperature can be set, and the load can be cut off automatically.

Application

The Cooling and heating calibration bath thermostat is suitable for the measurement, biochemistry, petroleum, meteorology, energy, environmental protection, medicine and other departments and the production of thermometers, temperature controllers, temperature sensors and other manufacturers for physical parameters testing and calibration. It can also provide thermostatic source for other experimental research work. Examples: grade I and ii standard mercury thermometers, beckman thermometers, industrial platinum thermal resistance, standard copper-constantan thermocouple verification, etc.

Technical Features

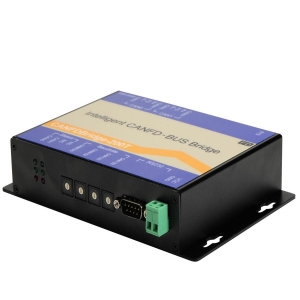

CAN to CAN FD Gateway

The CAN-FD-BRIDGE-200T Series CAN to CAN FD gateway utilizes automatic bidirectional switching requiring no control signal. The product can be used as CAN to CAN FD gateway or CAN FD repeater.

As can (FD) intelligent bridge, CAN-FD-BRIDGE-200T supports the default conversion processing of CAN to CAN, CAN to CAN FD, CAN FD to CAN, CAN FD to CAN FD, etc. In addition, it also provides special conversion processing such as merging (several can messages forming a CAN FD message), splitting (a CAN FD message is split into several can messages), and frame mapping. Users can freely set the rules of CAN (FD) message forwarding mapping, packet Grouping and unpacking to meet their own application requirements.

Feature & Benefits:

32-bit 400m high-speed processor, embedded with real-time operating system and adaptive flow control algorithm, is suitable for the system with strict real-time requirements.

The port has queue buffering to ensure the frame integrity of all applications from low speed to high speed.

The port uses rotary dial switch to set the baud rate of CAN FD data domain and arbitration domain. For most applications, customers do not need to use configuration software.

 The port has sending, receiving and status indication separately, which is convenient for industrial field debugging.The configuration software and configuration method of CAN (FD) to serial port, CAN (FD) bridge, CAN (FD) switch, CAN (FD) to optical (point-to-point), CAN (FD) to optical (bus type), CAN (FD) and optical hybrid switch are completely unified. Customers can switch between these products seamlessly.

The Series CAN FD bridge can be widely used, such as Industrial Controls, Intelligent Transportation Systems (ITS), Industrial Networking,

Supervisory Control and Data (SCADA) and so on.

Other Specs:

• Linking two CAN nets with data buffering
• Different bit rates on the CAN nets possible
• 11-bit ID and 29-bit ID bridge
• Internal microcontroller MB90F543
• High-Speed CAN interface acc. to ISO 11898-2, 5 Mbit/s
• Electrical isolation by optocouplers and DC/DC-converters
• Configuration of the CAN-CBM-Bridge module is easily done by means of a PC/terminal
• Isolation 3000Vsm
• Lightning/Surge Protection 1~2 lightning strikes
• ESD Protection 15KV

CAN FD:

• Connector Type Terminal
• Data Rate: 5Kbps~5Mbps
• Extended Distance 10Km
• Operating Temperature -40 ~ 70C / -40 ~ +158F
• Operating Humidity 0 ~ 95% non-condensing
• Mean Time Between Failure (MTBF) > 70, 000hrs
• Power Supply Input Voltage 9~40V DC
• Power Supply Output Voltage 5V DC
• Dimensions (W × D× W) 156mm× 108mm× 33.6mm

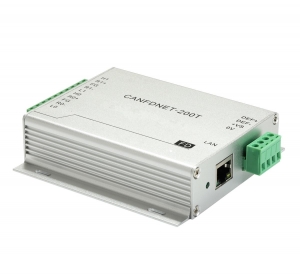

CANFD to Ethernet Converter(CANFD-NET-100T/200T)

1.1 Product Overview

CAN-FD-NET-100T/200T high performance CAN FD to Ethernet converter integrates one CAN (FD) interface or two-way CAN FD interfaces and Ethernet interface as well as TCP / IP protocol stack. Users can easily realize the interconnection and interworking between CAN bus network and Ethernet network, and further expand the scope of CAN FD network.

CAN-FD-NET-100T / 200T CAN FD to Ethernet adapter, each CAN channel is integrated with complete electrical isolation protection and surge protection, with strong anti-interference ability. It is a CAN FD over Ethernet converter with stable performance and reliable communication.

The conversion efficiency of CAN-FD-NET-100T / 200T adapter reaches 5000 frames / S (CAN FD extended frames at 5Mbps), which is suitable for all applications of CAN (FD) from low speed to high speed.

1.2 Product Features:

• 32-bit 400m processor with embedded real-time operating system.
• The flow rate is 5000 frames / S (CAN FD extended frames at 5Mbps).
• Using real-time operating system and adaptive flow control algorithm, it is suitable for the control system with strict real-time requirements.
• CAN (FD) - bus interface adopts electromagnetic isolation with isolation voltage of 2.5KV.
• 10m / 100M Ethernet interface (RJ45), 2KV electromagnetic isolation;
• Configuration software can be used to set the working parameters of CAN (FD) and Ethernet.
• CAN 2.0A and CAN 2.0B protocols.
• It supports 1-2 CAN (FD) controllers, and each channel can be controlled separately.
• Shielded or unshielded twisted pair.
• The baud rate of CAN (FD) controller is between 5 Kbps and 5 Mbps.
• At most 110 nodes can be connected to a single bus, and the longest communication distance is 10 km.
• 9-40V DC wide voltage input with surge, over-current and reverse connection protection.
• Working temperature: - 40 ℃ - + 85 ℃.
• Storage temperature: - 55 ℃ - + 85 ℃.
• Physical size: (length) 105mm * (width) 84mm * (height) 28mm.
• Can Bus port number: 1 or 2

1.3 Typical applications

CAN-bus network diagnosis and test

Auto electronic applications

Electric power communication network

Industrial control devices

High-speed and large data communications

Ordering Information:

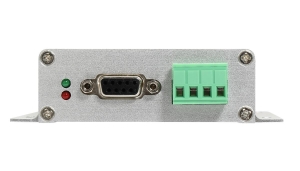

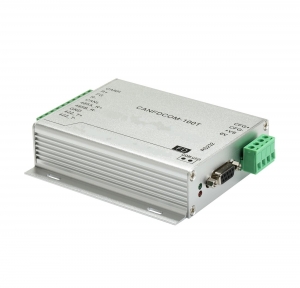

CAN FD to RS-232/485/422 Converter

CANFD-COM-100T intelligent protocol converter can quickly connect RS-232/485/422 communication equipment to CAN (FD) fieldbus. The converter supports 1200-921600bps serial port baud rate and 5k~5Mbps CAN (FD) bus communication rate. The converter supports three conversion modes: transparent conversion, transparent label conversion and format conversion. CANFD-COM-100T converter provides configuration software, which can flexibly set the operation parameters of CANFD-COM-100T.

Product Feature and Benefits:

CAN FD to RS-232/485/422 Converter

CANFD-COM-100T intelligent protocol converter can quickly connect RS-232/485/422 communication equipment to CAN (FD) fieldbus. The converter supports 1200-921600bps serial port baud rate and 5k~5Mbps CAN (FD) bus communication rate. The converter supports three conversion modes: transparent conversion, transparent label conversion and format conversion. CANFD-COM-100T converter provides configuration software, which can flexibly set the operation parameters of CANFD-COM-100T.

Product Feature and Benefits:

CAN FD to Ethernet Gateway(CANFD-NET-100T/200T)

1.1 Product Overview

CAN-FD-NET-100T/200T high performance CAN FD to Ethernet gateway integrates one CAN (FD) interface or two-way CAN FD interfaces and Ethernet interface as well as TCP / IP protocol stack. Users can easily realize the interconnection and interworking between CAN bus network and Ethernet network, and further expand the scope of CAN FD network.

CAN-FD-NET-100T / 200T CAN FD to Ethernet gateway, each CAN channel is integrated with complete electrical isolation protection and surge protection, with strong anti-interference ability. It is a CAN FD over Ethernet converter with stable performance and reliable communication.

The conversion efficiency of CAN-FD-NET-100T / 200T adapter reaches 5000 frames / S (CAN FD extended frames at 5Mbps), which is suitable for all applications of CAN (FD) from low speed to high speed.

1.2 Product Features:

• 32-bit 400m processor with embedded real-time operating system.
• The flow rate is 5000 frames / S (CAN FD extended frames at 5Mbps).
• Using real-time operating system and adaptive flow control algorithm, it is suitable for the control system with strict real-time requirements.
• CAN (FD) - bus interface adopts electromagnetic isolation with isolation voltage of 2.5KV.
• 10m / 100M Ethernet interface (RJ45), 2KV electromagnetic isolation;
• Configuration software can be used to set the working parameters of CAN (FD) and Ethernet.
• CAN 2.0A and CAN 2.0B protocols.
• It supports 1-2 CAN (FD) controllers, and each channel can be controlled separately.
• Shielded or unshielded twisted pair.
• The baud rate of CAN (FD) controller is between 5 Kbps and 5 Mbps.
• At most 110 nodes can be connected to a single bus, and the longest communication distance is 10 km.
• 9-40V DC wide voltage input with surge, over-current and reverse connection protection.
• Working temperature: - 40 ℃ - + 85 ℃.
• Storage temperature: - 55 ℃ - + 85 ℃.
• Physical size: (length) 105mm * (width) 84mm * (height) 28mm.
• Can Bus port number: 1 or 2

1.3 Typical applications

CAN-bus network diagnosis and test

Auto electronic applications

Electric power communication network

Industrial control devices

High-speed and large data communications

Ordering Information:

4 Port Configurable CAN FD Fiber Optic Switch(Router)

Description:

The CAN-FD-FIB-MIXED Can bus to fiber optic switch provide an optical point-to-point or bus network connection for Can FD data interfaces on one or two, multimode or single mode optical fibers. The CAN FD fiber optic switch has 2 CAN ports and 2 fiber optic ports, all 4 ports are configurable via software.Any port can communicate with other ports,so it has the functions of “Repeater”,”Router” and “Switch”, it can be used  in point to point,multi drop bus,star and tree topologies.

The CAN-FD-FIB-MIXED can be used in CAN (FD) network with baud rate up to 5 Mbps. It can be used in various high-level CAN (FD) protocols (CANopen, SDS, J1939, DeviceNet or other customized protocols).

The CAN-FD-FIB-MIXED can be configured with corresponding CAN (FD) message filter to ensure that only the required data is transmitted to other CAN (FD) networks through the repeater. Therefore, the device can effectively reduce the network load.

Product Features and Benefits:

• 32-bit 400Mb high-speed processor, embedded with real-time operating system and adaptive flow control algorithm, suitable for the system with strict real-time requirements.
• The port has queue buffering to ensure the frame integrity of all applications from low speed to high speed.
• The port uses rotary dial switch to set the baud rate of CAN (FD) data. For most applications, customers even do not need to use configuration software.
• The port has indicator for sending, receiving and status indication, which is convenient for industrial field debugging.
• The configuration software and configuration method of CAN (FD) to serial port, CAN (FD) bridge, CAN (FD) switch, CAN (FD) to optical (point-to-point), CAN (FD) to optical (bus type), CAN (FD) fiber optic switch are completely unified. Customers can switch between these products seamlessly.
• The CAN FD port can process 5000 frames per second.
• The CAN (FD) interface has electrical isolation, and the isolation voltage is 2500V DC
• It has 2-channel fiber interfaces (transmission distance 10-15km, 25km / 40km / 60km optional), ST / SC / FC interfaces as option.
• Users can configure communication baud rate: 5Kbps ~ 5Mbps through rotary button or RS232 port
• Powerful CAN (FD) message filtering function,which can effectively avoid unnecessary messages being forwarded
• Built in terminal resistor and external termination resistor are optional.
• Power supply, device status, bus transmitting, bus receiving, bus error LED indicators.
• Wide voltage range: 9-40V DC (surge, over-current, reverse connection protection)

Specifications：

Ordering Information:

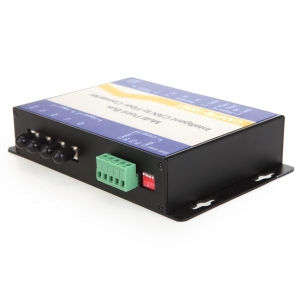

CAN FD Multi-drop Bus Fiber Optic Converter

Description:

The CAN-FD-FIB-100BT CAN bus to fiber optic switch provide an optical Multi-drop bus or star network connection for CAN bus data interfaces on one or two, multi mode or single mode optical fibers. A twisted pair port has an independent CAN (FD) transceiver, which can multiply the number of nodes. Therefore, while providing free wiring mode, it also cancels the limit to the maximum number of nodes driving of CAN (FD) transceiver on the system bus, 2 optical fiber ports can make CAN-FD-FIB-100BT be applied in high interference environment, especially in high-voltage occasions and power occasions. Each port also has a led indicator for detecting bus activity and bus fault, which is convenient to observe the CAN (FD) network’s working state.

The CAN-FD-FIB-100BT can be used in CAN (FD) network with baud rate up to 5 Mbps. It can be used in various high-level CAN (FD) protocols (CANopen, SDS, J1939, DeviceNet or other customized protocols).

The CAN-FD-FIB-100BT can be configured with corresponding CAN (FD) message filter to ensure that only the required data is transmitted to other CAN (FD) networks through the repeater. Therefore, the device can effectively reduce the network load.

Product Features and Benefits:

• 32-bit 400Mb high-speed processor, embedded with real-time operating system and adaptive flow control algorithm, suitable for the system with strict real-time requirements.
• The port has queue buffering to ensure the frame integrity of all applications from low speed to high speed.
• The port uses rotary dial switch to set the baud rate of CAN (FD) data. For most applications, customers even do not need to use configuration software.
• The port has indicator for sending, receiving and status indication, which is convenient for industrial field debugging.
• The configuration software and configuration method of CAN (FD) to serial port, CAN (FD) bridge, CAN (FD) switch, CAN (FD) to optical (point-to-point), CAN (FD) to optical (bus type), CAN (FD) fiber optic switch are completely unified. Customers can switch between these products seamlessly.
• The CAN FD port can process 5000 frames per second.
• The CAN (FD) interface has electrical isolation, and the isolation voltage is 2500V DC
• It has 2-channel fiber interfaces (transmission distance 10-15km, 25km / 40km / 60km optional), ST / SC / FC interfaces as option.
• Optical fiber connection: Multi-drop Bus
• Users can configure communication baud rate: 5Kbps ~ 5Mbps through rotary button or RS232 port
• Powerful CAN (FD) message filtering function,which can effectively avoid unnecessary messages being forwarded
• Built in terminal resistor and external termination resistor are optional.
• Power supply, device status, bus transmitting, bus receiving, bus error LED indicators.
• Wide voltage range: 9-40V DC (surge, over-current, reverse connection protection)
• Industrial temperature range: - 40 ℃～+ 85 ℃
• Aluminum enclosure size: 147mm * 112mm * 36mm
• 3 years warranty

Other Specifications:

Ordering Information:
