CAN to CAN FD Gateway

CAN to CAN FD Gateway

CAN to CAN FD Gateway

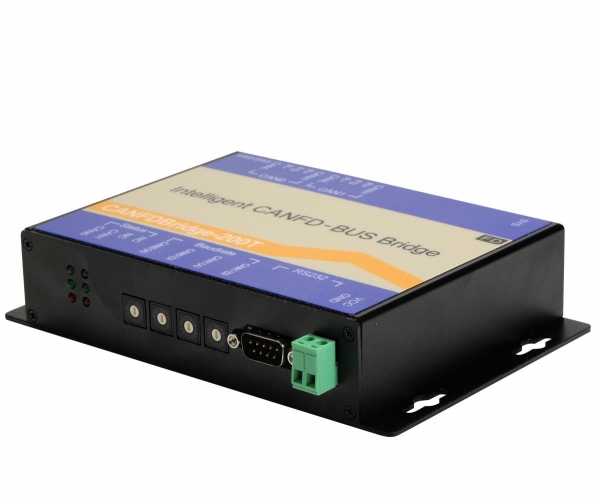

The CAN-FD-BRIDGE-200T Series CAN to CAN FD gateway utilizes automatic bidirectional switching requiring no control signal. The product can be used as CAN to CAN FD gateway or CAN FD repeater.

As can (FD) intelligent bridge, CAN-FD-BRIDGE-200T supports the default conversion processing of CAN to CAN, CAN to CAN FD, CAN FD to CAN, CAN FD to CAN FD, etc. In addition, it also provides special conversion processing such as merging (several can messages forming a CAN FD message), splitting (a CAN FD message is split into several can messages), and frame mapping. Users can freely set the rules of CAN (FD) message forwarding mapping, packet Grouping and unpacking to meet their own application requirements.

Feature & Benefits:

32-bit 400m high-speed processor, embedded with real-time operating system and adaptive flow control algorithm, is suitable for the system with strict real-time requirements.

The port has queue buffering to ensure the frame integrity of all applications from low speed to high speed.

The port uses rotary dial switch to set the baud rate of CAN FD data domain and arbitration domain. For most applications, customers do not need to use configuration software.

 The port has sending, receiving and status indication separately, which is convenient for industrial field debugging.The configuration software and configuration method of CAN (FD) to serial port, CAN (FD) bridge, CAN (FD) switch, CAN (FD) to optical (point-to-point), CAN (FD) to optical (bus type), CAN (FD) and optical hybrid switch are completely unified. Customers can switch between these products seamlessly.

The Series CAN FD bridge can be widely used, such as Industrial Controls, Intelligent Transportation Systems (ITS), Industrial Networking,

Supervisory Control and Data (SCADA) and so on.

Other Specs:

  • Linking two CAN nets with data buffering
  • Different bit rates on the CAN nets possible
  • 11-bit ID and 29-bit ID bridge
  • Internal microcontroller MB90F543
  • High-Speed CAN interface acc. to ISO 11898-2, 5 Mbit/s
  • Electrical isolation by optocouplers and DC/DC-converters
  • Configuration of the CAN-CBM-Bridge module is easily done by means of a PC/terminal
  • Isolation 3000Vsm
  • Lightning/Surge Protection 1~2 lightning strikes
  • ESD Protection 15KV

CAN FD:

  • Connector Type Terminal
  • Data Rate: 5Kbps~5Mbps
  • Extended Distance 10Km
  • Operating Temperature -40 ~ 70C / -40 ~ +158F
  • Operating Humidity 0 ~ 95% non-condensing
  • Mean Time Between Failure (MTBF) > 70, 000hrs
  • Power Supply Input Voltage 9~40V DC
  • Power Supply Output Voltage 5V DC
  • Dimensions (W × D× W) 156mm× 108mm× 33.6mm
Ordering Information:


Model Number

Description

Fiber No.

Fiber Mode

Fiber Connector

HFD-FO-FD-P1M

Point to Point Link,Single Fiber(BI-DI), 2km, DIN Rail mount

1

Multi Mode

ST/SC/FC

HFD-FO-FD-P2M

Point to Point Link,Dual Fiber, 2km, DIN Rail mount

2

Multi Mode

ST/SC/FC

HFD-FO-FD-P1S

Point to Point Link,Single Fiber(BI-DI), 20km, DIN Rail mount

1

Single Mode

ST/SC/FC

HFD-FO-FD-P2S

Point to Point Link,Dual Fiber, 20km, DIN Rail mount

2

Single Mode

ST/SC/FC

CAN-FD-FIB-100PT-P1M

Point to Point Link,Single Fiber(BI-DI), 2km, Wall or rack mount

1

Multi Mode

ST/SC/FC

CAN-FD-FIB-100PT-P2M

Point to Point Link,Dual Fiber, 2km, Wall or rack mount

2

Multi Mode

ST/SC/FC

CAN-FD-FIB-100PT-P1S

Point to Point Link,Single Fiber(BI-DI), 20km, Wall or rack mount

1

Single Mode

ST/SC/FC

CAN-FD-FIB-100PT-P2S

Point to Point Link,Dual Fiber, 20km, Wall or rack mount

2

Single Mode

ST/SC/FC

CAN-FD-100BT-M2M

Multi-drop Link,Dual Fiber(BI-DI), 2km

2

Multi Mode

ST/SC/FC

CAN-FD-100BT-M4M

Multi-drop  Link,4 Fiber, 2km

4

Multi Mode

ST/SC/FC

CAN-FD-100BT-M2S

Multi-drop Link,Dual Fiber(BI-DI), 20km

2

Single Mode

ST/SC/FC

CAN-FD-100BT-M4S

Multi-drop Link,4 Fiber, 20km

4

Single Mode

ST/SC/FC

CAN-FD-FIB-MIXED-P1M

CANFD Fiber Optic Switch, 2 CAN+2 Fiber

2

Multi Mode

ST/SC/FC

CANFD-FIB-MIXED-P2M

CANFD Fiber Optic Switch, 2 CAN+4 Fiber

4

Multi Mode

ST/SC/FC

CANFD-FIB-MIXED-P1S

CANFD Fiber Optic Switch, 2 CAN+2 Fiber

2

Single Mode

ST/SC/FC

CANFD-FIB-MIXED-P2S

CANFD Fiber Optic Switch, 2 CAN+4 Fiber

4

Single Mode

ST/SC/FC

CANFD-Bridge-200T

CAN FD to CAN Bus Bridge

N/A

N/A

N/A

CANFD-SW-400T

CAN FD Switch

N/A

N/A

N/A

CANFD-COM-100T

CAN FD to RS-232/485/422 Converter

N/A

N/A

N/A

CANFD-USB-100T

CAN FD to USB Converter, 1 channel

N/A

N/A

N/A

CANFD-USB-200T

 CAN FD to USB Converter, 2 channels

N/A

N/A

N/A

CANFD-NET-100T

CAN FD to Ethernet Converter 1 channel

N/A

N/A

N/A

CANFD-NET-200T

CAN FD to Ethernet Converter 2 channels

N/A

N/A

N/A
