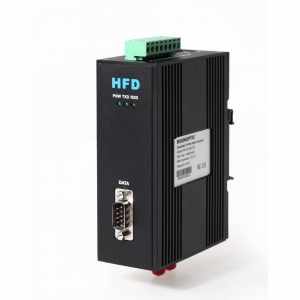

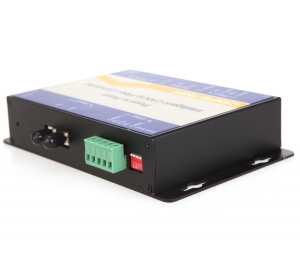

CANFD to Fiber Optic Converter

Model: CAN-FD-FIB-100PT

Description:

A twisted pair port has an independent CAN (FD) transceiver, which can multiply the number of nodes. Therefore, while providing free wiring mode, it also cancels the limit to the maximum number of nodes driving of CAN (FD) transceiver on the system bus, One optical fiber port can make CAN-FD-FIB-100pt be applied in high interference environment, especially in high-voltage occasions and power occasions. Each port also has a led indicator for detecting bus activity and bus fault, which is convenient to observe the CAN (FD) network’s working state.

The CAN-FD-FIB-100PT can be used in CAN (FD) network with baud rate up to 5 Mbps. It can be used in various high-level CAN (FD) protocols (CANopen, SDS, J1939, DeviceNet or other customized protocols).

The CAN-FD-FIB-100PT can be configured with corresponding CAN (FD) message filter to ensure that only the required data is transmitted to other CAN (FD) networks through the repeater. Therefore, the device can effectively reduce the network load.

 The CAN-FD-FIB-100PT can be configured by connecting to PC through asynchronous serial communication interface. Configuration software is based on Windows OPS, which is easy to use and configuration can take effect immediately. After equipment configuration is completed, it can be put into operation directly.

Product Features and Benefits:

• 32-bit 400Mb high-speed processor, embedded with real-time operating system and adaptive flow control algorithm, suitable for the system with strict real-time requirements.
• The port has queue buffering to ensure the frame integrity of all applications from low speed to high speed.
• The port uses rotary dial switch to set the baud rate of CAN (FD) data. For most applications, customers even do not need to use configuration software.
• The port has indicator for sending, receiving and status indication, which is convenient for industrial field debugging.
• The configuration software and configuration method of CAN (FD) to serial port, CAN (FD) bridge, CAN (FD) switch, CAN (FD) to optical (point-to-point), CAN (FD) to optical (bus type), CAN (FD) fiber optic switch are completely unified. Customers can switch between these products seamlessly.
• The CAN FD port can process 5000 frames per second.
• The CAN (FD) interface has electrical isolation, and the isolation voltage is 2500V DC
• It has 1-channel fiber interface (transmission distance 10-15km, 25km / 40km / 60km optional), ST / SC / FC interfaces as option.
• Optical fiber connection: point to point
• Users can configure communication baud rate: 5Kbps ~ 5Mbps through rotary button or RS232 port
• Powerful CAN (FD) message filtering function,which can effectively avoid unnecessary messages being forwarded
• Built in terminal resistor and external termination resistor are optional.
• Power supply, device status, bus transmitting, bus receiving, bus error LED indicators.
• Wide voltage range: 9-40V DC (surge, over-current, reverse connection protection)
• Industrial temperature range: - 40 ℃～ + 85 ℃

Application:

• Elevator
• Fire control panel
• Industrial automation
• Battery
• Film
• Military defence
• Power substation
• Power plants

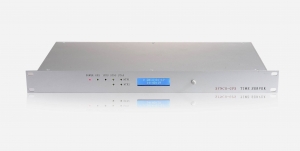

GPS同步时钟

• 产品简介

BE-NTP-011系列标准GPS时间同步钟是我公司基于专业的GPS接收机/北斗二代接收机部件进行二次开发研制而成。装置有标准RS232、RS422/485、脉冲、IRIG-B、PTP、NTP/SNTP协议时间输出等接口形式，可以适应各种不同设备的对时需要，广泛应用于电力、金融、通信、IT等领域。

• 技术指标
• 运行条件

1）装置环境条件

工作温度：-20⁰C～+40⁰C；

贮存温度：-40⁰C～+85⁰C；

湿度：<95%（不结露）。

2）电源

• 85～264 V AC或120～370 V DC ，频率47～63Hz。
• 18～36 V DC（典型值24V DC）
• 36～72 V DC（典型值48V DC）

3）抗干扰

在雷击过电压、一次回路操作、开关场故障、二次回路操作及其它强干扰作用下，装置不误动作。

装置静电放电干扰试验、电快速瞬变脉冲群干扰试验、高频干扰试验、辐射电磁场干扰试验、阻尼震荡波干扰试验、浪涌（冲击）干扰试验符合标准GB/T17626-1998（电磁兼容 试验和测量技术）和GB/T15153.1-1998（远动设备及系统 第2部分：工作条件第1篇：电源和电磁兼容），并达到Ⅲ级及以上标准。

• 技术参数

通    道：基于64通道Humbird^TM芯片

频    率：BDS B1(1559～1577MHz)

GPS L1(1575.42MHz)

定 位 模 式：单系统独立定位

                    多系统联合定位

首次定位时间（TTFF）:冷启动  35s，热启动  1s，重捕获  <1s

灵   敏  度：

功耗：≤15W。

平均无故障间隔时间(MTBF)≥70000小时；平均维修时间（MTTR）：一般不大于2小时，使用寿命不少于10年。

输出时间与协调世界时（UTC）时间同步准确度：≤1us。

重量：5kg。

外形尺寸：本同步钟系列为架装式结构，高度1U、宽度19寸标准机箱。

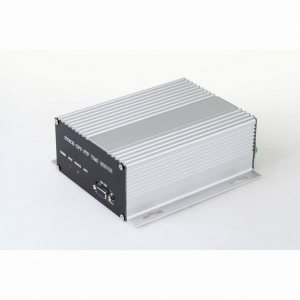

IRIG-B转NTP/SNTP转换器

Product Description(IRIG-B to NTP Converter):

B E'S SY-B-N-01 is synchronized by a NTP Server and can be used as a time source for equipment that requires IRIG B  for synchronization.
Optionally, the following output configurations are available:

SY-B-N-01 Irig-B to NTP Converter can transform IRIG-B DC(B002) to NTP/SNTP time code and finally to the server to synchronize the time.

Time input: BNC or RS-485/422 block terminal

Time output: NTP/SNTP(RJ-45 connector IEEE 802.3 - shielded data line) & RS-232(DB9 Connector)

Time accuracy: LAN: ±1ms

IRIG-B Time Format Support: IRIG-B DCLS(B002)

WAN: ±1~10ms

The maximum servers it can support: 22nos

Power input: 24V DC

Fuse: - 1 electronic

Output: - +5V / 3A

Total load ≤15 Watt

Other specs of IRIG-B to NTP Converter:

Work Temperature: –20~ 70℃
Storage: -40~ 125℃
Humidity: 85% max.

Introduction
Basic Operation of Ultrasonic Electronic Generator
The ultrasonic electronic generator converts AC line power to a 20 KHz signal that powers a piezoelectric convertor/transducer. The transducer in turn converts this electrical signal to a mechanical vibration because of the attributes of the internal piezoelectric crystals.

This mechanical vibration is intensified and passed down the length of the probe or horn where the tip expands and contracts longitudinally. The distance travelled by the tip depends on the amplitude chosen by the user via the amplitude control knob.

Cavitation
In liquid, the fast vibration of the tip results in the formation and collapse of microscopic bubbles. This phenomenon is dubbed as cavitation. The breakdown of countless number of cavitation bubbles, releases significant amount of energy in the cavitation field.

Following this, surfaces and objects inside the cavitation field are processed. The diameter of the probe tip controls the amount of sample that can be suitably processed. Diameters of smaller tips i.e. microtip probes provide high intensity sonication; however the energy is directed inside a small, concentrated area. Although larger volumes are processed by larger tip diameters, they deliver low intensity sonication.

Conclusion
The options of a generator and horns or probes correspond to several factors, such as viscosity, volume, etc. of a specific application. A Misonix Sonicator product specialist can help in choosing the right generator and horn for particular applications.

Cell Disruption

Nanoparticle Dispersion

Creating Emulsions

Shearing DNA

ChIP Assay

Homogenization

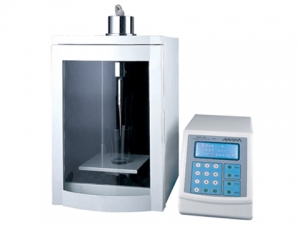

Ultrasonic Homogenizer|Sonicator|Disruptor|Disperser-BEM-1800D(LCD Screen)

Product Description:

The BEM-1800D Ultrasonic homogenizer/sonicator/crusher/disperser(LCD Screen) is a multifunctional and multipurpose instrument for ultrasonic processing by cavitation in liquid material. It can be used for a variety of plants and animals, bacteria, viruses, cells and the organization of broken, at the same time can be used to emulsify, separation, scattered, cracking, homogenization, extraction, defoaming, cleaning, nanometer material preparation, graphene dispersion and chemical reactions, etc.

Product Features:

1. Large LCD screen Display, friendly human-machine interface.
2. 50 groups of experimental data can be set and stored, safe and convenient.
3. The ultrasonic power can be adjusted continuously, and the best experimental conditions can be explored.
4. Efficient and durable titanium alloy probe, reliable and accurate.
5. The program has over-temperature/delay/fault protection settings and alarm system,which can protect the test samples to the maximum extent.
6. RS232 Interface is optional, which can support the data transmission between the PC and PLC to realize the remote control.
7. We provide the Sound-proof Chamber for standard configuration with perfect transportation.

BEM's Benefits & Advantages:

The BEM series Ultrasonic Homogenizer is very efficient for the reduction of soft and hard particles. The homogenization is based on cavitation. Our Ultrasonic Cell disruptor/Crusher (LCD Screen) which used large LCD screen and upgraded the password protection system, is a multifunctional and multipurpose instrument for ultrasonic processing by cavitation in liquid material.

Another advantage is the exact control over the operational parameters influencing the cavitation. The ultrasonic power of our instrument can be adjusted continuously, and the best experimental conditions can be explored.We also have a program that has over-temperature/delay/fault protection settings and alarm system, which can protect the test samples to the maximum extent. We provide the Sound-proof Box for standard configuration with perfect transportation.

Application field:

The instrument is widely used in the fields of biology, microbiology, physics, zoology, agronomy, pharmacy, petroleum, etc. Also suitable for sample preparation in the chemical, medical, archaeological, address, marine and other fields.It also can be used in Nanotechnology research such as the dispersion of nanomaterials (nanotubes, graphene, silica, etc.); emulsification, homogenization and fragmentation of nano-materials such as carbon nanotubes, graphene and other materials, homogeneous soil, rock samples, non-ferrous metals, rare earths and other particles.Lysis, disruption, leaching, extraction of DNA, protein extraction from animal and plant cells, pruning DNA/RNA, chromatin immunoprecipitation technology for cells, viruses, spores and other cell structures.

Technical Specification:

Probe Option:

Ultrasonic Homogenizer|Sonicator|Disruptor|Disperser-BEM-1500D(LCD Screen)

Product Description:

The BEM-1500D Ultrasonic homogenizer/sonicator/crusher/disperser(LCD Screen) is a multifunctional and multipurpose instrument for ultrasonic processing by cavitation in liquid material. It can be used for a variety of plants and animals, bacteria, viruses, cells and the organization of broken, at the same time can be used to emulsify, separation, scattered, cracking, homogenization, extraction, defoaming, cleaning, nanometer material preparation, graphene dispersion and chemical reactions, etc.

Product Features:

1. Large LCD screen Display, friendly human-machine interface.
2. 50 groups of experimental data can be set and stored, safe and convenient.
3. The ultrasonic power can be adjusted continuously, and the best experimental conditions can be explored.
4. Efficient and durable titanium alloy probe, reliable and accurate.
5. The program has over-temperature/delay/fault protection settings and alarm system,which can protect the test samples to the maximum extent.
6. RS232 Interface is optional, which can support the data transmission between the PC and PLC to realize the remote control.
7. We provide the Sound-proof Chamber for standard configuration with perfect transportation.

BEM's Benefits & Advantages:

The BEM series Ultrasonic Homogenizer is very efficient for the reduction of soft and hard particles. The homogenization is based on cavitation. Our Ultrasonic Cell disruptor/Crusher (LCD Screen) which used large LCD screen and upgraded the password protection system, is a multifunctional and multipurpose instrument for ultrasonic processing by cavitation in liquid material.

Another advantage is the exact control over the operational parameters influencing the cavitation. The ultrasonic power of our instrument can be adjusted continuously, and the best experimental conditions can be explored.We also have a program that has over-temperature/delay/fault protection settings and alarm system, which can protect the test samples to the maximum extent. We provide the Sound-proof Box for standard configuration with perfect transportation.

Application field:

The instrument is widely used in the fields of biology, microbiology, physics, zoology, agronomy, pharmacy, petroleum, etc. Also suitable for sample preparation in the chemical, medical, archaeological, address, marine and other fields.It also can be used in Nanotechnology research such as the dispersion of nanomaterials (nanotubes, graphene, silica, etc.); emulsification, homogenization and fragmentation of nano-materials such as carbon nanotubes, graphene and other materials, homogeneous soil, rock samples, non-ferrous metals, rare earths and other particles.Lysis, disruption, leaching, extraction of DNA, protein extraction from animal and plant cells, pruning DNA/RNA, chromatin immunoprecipitation technology for cells, viruses, spores and other cell structures.

Technical Specification:

Probe Option:

Ultrasonic Homogenizer|Sonicator|Disruptor|Disperser-BEM-1000D(LCD Screen)

Product Description:

The BEM-1000D Ultrasonic homogenizer/sonicator/crusher/disperser(LCD Screen) is a multifunctional and multipurpose instrument for ultrasonic processing by cavitation in liquid material. It can be used for a variety of plants and animals, bacteria, viruses, cells and the organization of broken, at the same time can be used to emulsify, separation, scattered, cracking, homogenization, extraction, defoaming, cleaning, nanometer material preparation, graphene dispersion and chemical reactions, etc.

Product Features:

1. Large LCD screen Display, friendly human-machine interface.
2. 50 groups of experimental data can be set and stored, safe and convenient.
3. The ultrasonic power can be adjusted continuously, and the best experimental conditions can be explored.
4. Efficient and durable titanium alloy probe, reliable and accurate.
5. The program has over-temperature/delay/fault protection settings and alarm system,which can protect the test samples to the maximum extent.
6. RS232 Interface is optional, which can support the data transmission between the PC and PLC to realize the remote control.
7. We provide the Sound-proof Chamber for standard configuration with perfect transportation.

BEM's Benefits & Advantages:

The BEM series Ultrasonic Homogenizer is very efficient for the reduction of soft and hard particles. The homogenization is based on cavitation. Our Ultrasonic Cell disruptor/Crusher (LCD Screen) which used large LCD screen and upgraded the password protection system, is a multifunctional and multipurpose instrument for ultrasonic processing by cavitation in liquid material.

Another advantage is the exact control over the operational parameters influencing the cavitation. The ultrasonic power of our instrument can be adjusted continuously, and the best experimental conditions can be explored.We also have a program that has over-temperature/delay/fault protection settings and alarm system, which can protect the test samples to the maximum extent. We provide the Sound-proof Box for standard configuration with perfect transportation.

Application field:

The instrument is widely used in the fields of biology, microbiology, physics, zoology, agronomy, pharmacy, petroleum, etc. Also suitable for sample preparation in the chemical, medical, archaeological, address, marine and other fields.It also can be used in Nanotechnology research such as the dispersion of nanomaterials (nanotubes, graphene, silica, etc.); emulsification, homogenization and fragmentation of nano-materials such as carbon nanotubes, graphene and other materials, homogeneous soil, rock samples, non-ferrous metals, rare earths and other particles.Lysis, disruption, leaching, extraction of DNA, protein extraction from animal and plant cells, pruning DNA/RNA, chromatin immunoprecipitation technology for cells, viruses, spores and other cell structures.

Technical Specification:

Probe Option:

Ultrasonic Homogenizer|Sonicator|Disruptor|Disperser-BEM-900D(LCD Screen)

Product Description:

The BEM-900D Ultrasonic homogenizer/sonicator/crusher/disperser(LCD Screen) is a multifunctional and multipurpose instrument for ultrasonic processing by cavitation in liquid material. It can be used for a variety of plants and animals, bacteria, viruses, cells and the organization of broken, at the same time can be used to emulsify, separation, scattered, cracking, homogenization, extraction, defoaming, cleaning, nanometer material preparation, graphene dispersion and chemical reactions, etc.

Product Features:

1. Large LCD screen Display, friendly human-machine interface.
2. 50 groups of experimental data can be set and stored, safe and convenient.
3. The ultrasonic power can be adjusted continuously, and the best experimental conditions can be explored.
4. Efficient and durable titanium alloy probe, reliable and accurate.
5. The program has over-temperature/delay/fault protection settings and alarm system,which can protect the test samples to the maximum extent.
6. RS232 Interface is optional, which can support the data transmission between the PC and PLC to realize the remote control.
7. We provide the Sound-proof Chamber for standard configuration with perfect transportation.

BEM's Benefits & Advantages:

The BEM series Ultrasonic Homogenizer is very efficient for the reduction of soft and hard particles. The homogenization is based on cavitation. Our Ultrasonic Cell disruptor/Crusher (LCD Screen) which used large LCD screen and upgraded the password protection system, is a multifunctional and multipurpose instrument for ultrasonic processing by cavitation in liquid material.

Another advantage is the exact control over the operational parameters influencing the cavitation. The ultrasonic power of our instrument can be adjusted continuously, and the best experimental conditions can be explored.We also have a program that has over-temperature/delay/fault protection settings and alarm system, which can protect the test samples to the maximum extent. We provide the Sound-proof Box for standard configuration with perfect transportation.

Application field:

The instrument is widely used in the fields of biology, microbiology, physics, zoology, agronomy, pharmacy, petroleum, etc. Also suitable for sample preparation in the chemical, medical, archaeological, address, marine and other fields.It also can be used in Nanotechnology research such as the dispersion of nanomaterials (nanotubes, graphene, silica, etc.); emulsification, homogenization and fragmentation of nano-materials such as carbon nanotubes, graphene and other materials, homogeneous soil, rock samples, non-ferrous metals, rare earths and other particles.Lysis, disruption, leaching, extraction of DNA, protein extraction from animal and plant cells, pruning DNA/RNA, chromatin immunoprecipitation technology for cells, viruses, spores and other cell structures.

Technical Specification:

Probe Option:
