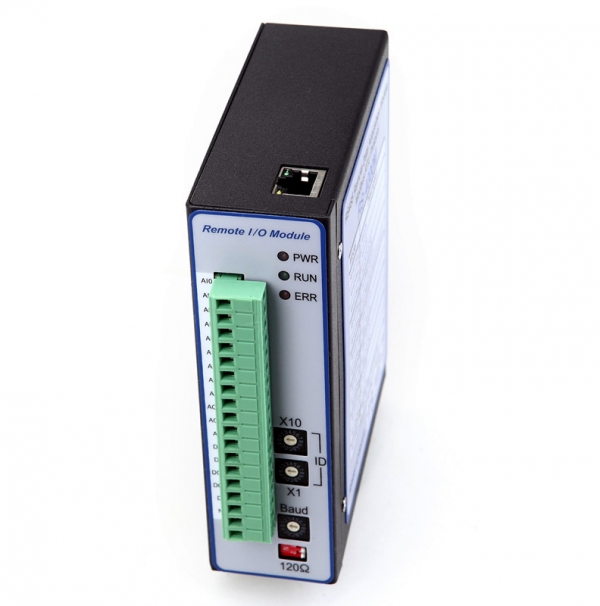

CAN Remote I/O Module with 5xTC
Product Introduction (CAN-6000T Series)
CAN-6000T CAN-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With CAN-based technology, CAN-6000T series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications.
Hardware Specification:
| System | |||
| CPU | 32-bit 120MIPS CPU | ||
| Operation System | Real-Time | ||
| Watchdog | Yes | ||
| Communication | RS-6000M | CAN-6000T | NET-6000M |
| RS485 | CAN |
Ethernet 10/100 Base-TX |
|
| LED Display | |||
| Power Indicator | Red | ||
| Run Indicator | Green | ||
| Error Indicator | Red | ||
| Link Indicator | Green | ||
| Act Indicator | Yellow | ||
| Mechanical | |||
|
Dimensions (W x H x D)(mm) |
140*110*40 | ||
| Installation | DIN-Rail mounting | ||
| Environment | |||
| Operating Temperature | -20℃～+70℃ | ||
| Storage Temperature | -30℃～+80℃ | ||
| Power Requirements | |||
| Power Input | +9V～30V DC | ||
| Power Consumption | <3W | ||
I/O Specification:
| Model | CAN-6042T | |
| Thermocouple Input | ||
| Input Channels: | 5 | |
| Input Type | J | -210℃~1200℃ |
| K | -200℃~1370℃ | |
| E | -100℃~1000℃ | |
| T | -200℃~400℃ | |
| N | -200℃~1300℃ | |
| B | 650℃~1800℃ | |
| R | 0℃~1750℃ | |
| S | 0℃~1760℃ | |
| Input Impedance: | 1.5M | |
| ADC Resolution | 24-bit | |
| Temperature Resolution | 0.1℃ | |
| Accuracy: | ±0.1% or Better | |
| Sampling Rate: |
All channels: 5 samples/sec Per channel: 1samples/sec |
|
| Isolation | 2500V | |
| Protection |
Built-in TVS/ESD Protection ±4 kV Contact for each terminal |
|
Ordering Information:
| Model | Description |
| Digital I/O | |
| CAN-6011T | CAN Remote I/O Module with16-ch DI |
| CAN-6012T | CAN Remote I/O Module with16-ch DO |
| CAN-6013T | CAN Remote I/O Module with 8-ch DI and 8-ch DO |
| Relay Output | |
| CAN-6014T | CAN Remote I/O Module with 5-ch Relay(Form A) |
| CAN-6015T | CAN Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C) |
| Analog Input | |
| CAN-6021T | CAN Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI |
| CAN-6022T | CAN Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI |
| Analog Output | |
| CAN-6031T | CAN Remote I/O Module with 12bit 4-ch AO |
| CAN-6032T | CAN Remote I/O Module with 16bit 4-ch AO |
| RTD | |
| CAN-6041M | CAN Remote I/O Module with 5-ch RTD |
| Thermocouple | |
| CAN-6042M | CAN Remote I/O Module with 5-ch TC |
| Mixed | |
| CAN-6088 | CAN Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO |
