Generator Protective Relay for 10MW

Generator Protective Relay for 10MW

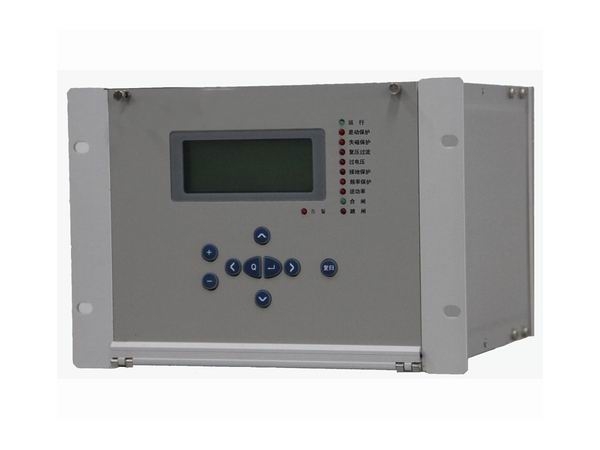

Generator Protective Relay Device

(For 10MW or the generators less than 10MW)

BEPR-554U generator protection device is designed specifically for small and medium sized generators, including generator differential protection and generator backup protection.

Function BEPR-554U
Differential protection
Overvoltage protection
Loss of excitation protection
Comprehensive 3Uo stator ground protection
Frequency protection
One-point ground protection
Rotator two-point ground protection
Generator stator ground protection
Reverse power protection
Non-electric signal protection
TA & TV breakage protection



Product Feature and Benefits

  • Main processor of the device is Motorola’s 32-bit microprocessor with fast speed, high reliability, rich resources and big room to expandability;
  • The whole panel is a 240×128 big screen LCD which is operated and displayed in Chinese and has friendly human-machine interface;
  • Multiple kinds of communication interfaces. Reserved RS-232, RS-485/422, CAN and Ethernet can conveniently conduct high-speed communication with the local station or remote system;
  • A/D has high conversion accuracy and fast speed and the device does not need adjustable parts to automatically adjust sampling accuracy;
  • The device has well-improved software and hardware watchdog self-test function and automatically blocks the trip in case of failure of CPU;
  • The device uses back inserted structure to separate light current from heavy current so as to greatly enhance anti-jamming property of the device;
  • The device has overall, rich and simple debug functions.

Technical Specifications:

Operating environment

Working temperature:-20℃~60, average temperature within 24 hours does not exceed 35.

Storage temperature:-25℃~80, not apply excitation at limiting value; irreversible changes will not occur in the device. The device should normally work after temperature is recovered.

Relative humidity: not more than 95% (without dew).

Atmospheric pressure: 80110kPa (below relative sea-level elevation of 2KM).



Nominal parameters

Rated DC voltage: 220V/110V (indicated in the order), around 10W, fluctuation range: -20% +10%.

Rated AC data:

Phase voltage: V

Line voltage: 100V

AC: 5A/1A (indicated in the order)

Rate frequency: 50Hz



Technical parameters of device

  • Input circuit: 24V D.C. 2.4mA at each point
  • Output contact rating: 30W(τ=5ms), 220V D.C.or 0.5A D.C.
  • Trip time: 20ms
  • Each phase of AC voltage circuit of the device at nominal parameter 0.2VA
  • Each phase of AC current circuit of the device at nominal parameter0.3VA
  • Voltage, current and power: 0.5 grade
  • Phase angle measurement error 1°
  • Impedance measurement error 5%

Application

10MW or the generators less than 10MW
