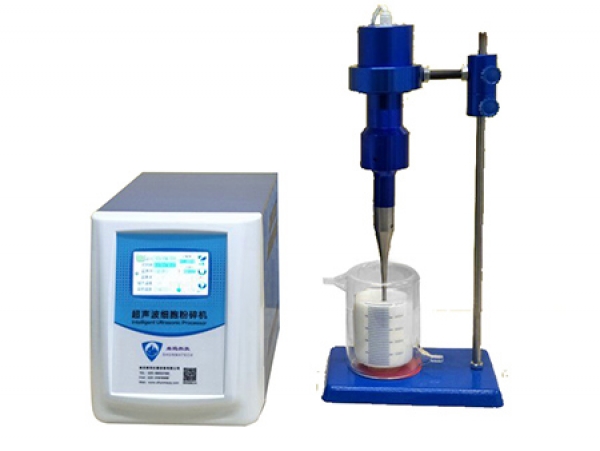

Ultrasonic Processor for Nanoparticle Dispersion ( Touch Screen)

Ultrasonic Processor for Nanoparticle Dispersion ( Touch Screen)

Homogenizer for dispersing Nano Particle | Homogenizer for Ultrasonic Dispersion

(Touch Screen)

 Product Description

The Ultrasonic Nano-particle Disperser/ Homogenizer for Nano Material Dispersing (Touch Screen Control) which used 4.3 TFT touch control and upgraded the password protection system, is a multifunctional and multipurpose instrument for ultrasonic processing by cavitation in liquid material. Typical applications include nanotechnology (producing nanoparticle materials and Graphene dispersions), cell lysing, sample preparation, homogenization, ChIP Assay, emulsification, disaggregation and deagglomeration, plus uses in the field of sonochemical liquid processing.



Product Features
1. Large TFT screen Display, Touch control for new version
2. Login Password Protection System for data security
3. 20 groups of experimental data can be set and stored, safe and convenient.
4. The ultrasonic power can be adjusted continuously, and the best experimental conditions can be explored.
5. The program has over-temperature/delay/fault protection settings and alarm system,which can protect the test samples to the maximum extent.
6. High and Low temperature bath is optional which can control the temperature between -40 to 200℃
7. We provide the Sound-proof Chamber for standard configuration with perfect transportation.
8. RS232 Interface is optional, which can support the data transmission between the PC and PLC to realize the remote control.



Technical Specification

Model

BEM-150A

BEM-650A

BEM -900A

BEM -1000A

BEM -1500A

BEM -1800A

BEM -3000A

Frequency

20-25

20-25

20-25

20-25

19-21

19.5-20.5

19.5-20.5

KHz

Power(W)

0-150

0-650

0-900W

10-1000

10-1500

20-1800

300-3000

Processing Capacity

0.1-50

0.1-150

0.1-500

0.1-600

20-1000

10-1500

100-5000

ml

Input &Display4.3in TFT

Touch Control

Touch Control

Touch Control

Touch Control

Touch Control

Touch Control

Touch Control

Login Password

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Standard Probemm

Φ6

Φ6

Φ6

Φ6 or 10

Φ22

Φ20 or 22

Φ35 or 50

Optional Probemm

Φ238

Φ2381012

Φ2381012

Φ238101215

Φ10152025

Φ10152025

Φ152025354050

Sample Temperature Protection(℃)

0-100

0-100

0-100

0-100

0-100

0-100

0-100

Security System

Self-diagnosis function, automatic error correction, overload, overtemperature protection ,etc



Probe Option

Model

Inch

Frequency

Power Range

Crushing Capacity

Φ2

1/12″

20-25KHz

min-150W

0.2-5ml

Φ3

1/8″

20-25KHz

min-250W

3-10ml

Φ6

1/4″

20-25KHz

20-400W

10-100ml

Φ10

5/12″

20-25KHz

100-600W

30-300ml

Φ12

1/2″

20-25KHz

200-900W

50-500ml

Φ15

5/8″

20-25KHz

300-1000W

100-600ml

Φ20

4/5″

19.5-20.5KHz

400-1100W

100-1000ml

Φ22

5/6″

19.5-20.5KHz

400-1100W

200-1000ml

Φ25

1″

19.5-20.5KHz

800-1500W

500-1200ml





Application



The instrument is widely used in the fields of biology, microbiology, physics, zoology, agronomy, pharmacy, petroleum, etc. It also can be used in Nanotechnology research such as the dispersion of nanomaterials (nanotubes, graphene, silica, etc.); sample homogenization and emulsification; accelerate dissolution, accelerate chemical reaction and other sample processing.
