Economical IEC-101/102/103/104/Modbus Gateway for Solar Power Plant Data Acquisition

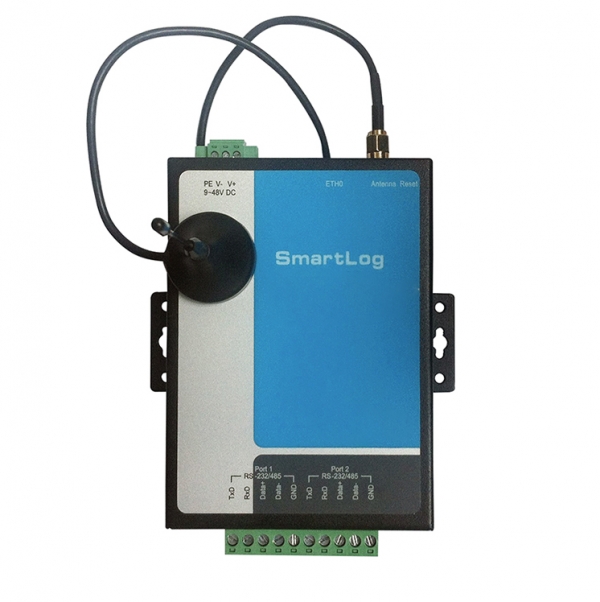

The Gateway is designed for low-cost projects like PV,industrial automation and other projects that is sensitive to cost, the gateway has 1 Ethernet port and 2 Serial interfaces and support IEC101,IEC102,IEC103,IEC104,Modbus RTU protocols.



Technial Specifications:



• Freescalei.MX287 Applications Processors,454MHz128M DDR2 Memory
• 128M Nand Flash
• 1 Ethernet Ports
• 2 RS-232/485 Isolation Serial Ports
• GPRS Communication Interface
• Wall Mount

Others:

System
CPU Freescalei.MX287 Applications Processors,454MHz
Memory DDR2 128M
Flash

128M Nand Flash

SD Socket 32GB


Operating System Linux 2.6.35.3
LED


System:Power x1,RUN x1,

Serial:TxD x2,RxD x2

Others RTC,Buzzer,Watchdog Timer,Reset Button,Console Port x1
Serial Communication
Console Port

BOX 1*3*2.54 Connector x1(Inside)

RS232 115200bps N,8,1

Serial Port

2 xRS-232/485 TB Interface Connector

Auto Mode SensingRS-232 SignalsTxD,RxD,GND

RS-485 Signals485A(Data+),485B(Data-)

Protection Built-in 15KV ESD Protection For All Signals, 2KV <span iCoupler Digital Isolation Protection
Network Communication
LAN

Auto-sensing 10/100Mbps x 1, RJ45

Build-in 1.5KV Magnetic Isolation Protection

Wireless communication

GPRS Communication Interface

Support China Mobile/China Unicom

Power Requirements
Power Input 9-36VDC
Power Consumption
  5W@12VDC
Mechanical
Dimensions 89(L)x121(W)x27(H)
Installation Wall Mount
Environmental
Operating Temperature

-20-60

-40-80(Optional)

Storage Temperature -40-80
Regulatory Approvals and Warranty
EMC

GB/T 17626.2-2006 Class 4(ESD)

GB/T 17626.4-2008 Class 4(EFT)

GB/T 17626.5-2008 Class 4(SURGE)

GB/T 17626.6-2008 Class 3(EMI)

Warranty 2 Years
