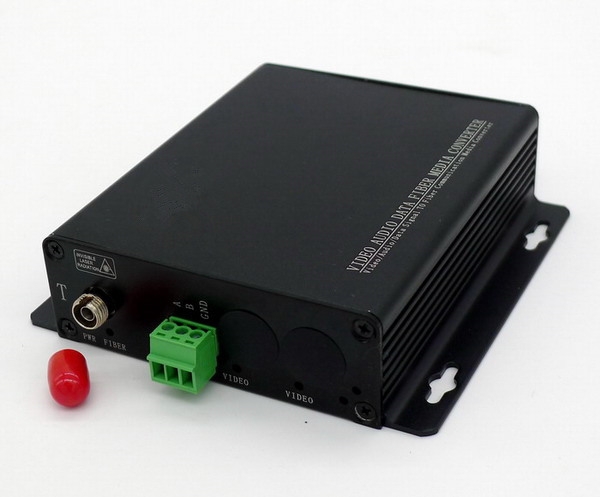

Bueo Electric's Digital Contact Closure Fiber Optic Converters series support 1~16 Channels simplex or 1~8 Channel duplex contact closure over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications with Access Control System, Alarm Event Triggering, Building Automation and Environmental Control Systems, Fire & Alarm Systems, PIR signal Transmission, Traffic Signal Control Equipment, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.



Features of the Contact Closure Fiber Optic:

• Support Point-to-Point or Daisy-Chain connection
• Dry Contact Closure or TTL data over one fiber
• Multimode Fiber Support for Distances up to 4 km
• Single-Mode Fiber Support for Distances up to 100 km
• LED Status Provide Rapid Indication of Operating Parameters
• No EMI or RFI and no ground loops
• Stand alone or rack-mount
• Produce according to customer's specifications,providing OEM

Electrical & Mechanical

Input Power Requirements:

DC 5V@2A>

Power Adapter:

AC 90V~240V

Power Consumption:

< 3W

Stand-Alone Dimensions:

104mm × 104mm × 28mm or

183mm × 154mm × 30mm

Shipping Weight:

(include Transmitter & Receiver ) 0.8kg or 1.5kg

Environmental

Operating Temperature:

-20°C ~ +75°C

Storage Temperature:

-40°C ~ +85°C

Relative Humidity:

0% ~ 95% (non-condensing)

MTBF:

>100,000 hours

Ordering Information & Optical Specifications:

Model

Fiber Mode

Connecter

Dry Contact

Channel

Optical Power Budget

Max Transmission

Distance

Transmitter

Receiver

HFB-FO-IO-CH2

HFB-FO-IO-CH2

SM/MM

FC/ST/SC

2

18dB

25km

HFB-FO-IO-CH4

HFB-FO-IO-           CH4

SM/MM

FC/ST/SC

4

18dB

25km

HFB-FO-IO-CH8

HFB-FO-IO-CH8

SM/MM

FC/ST/SC

8

18dB

25km

HFB-FO-IO-CH16

HFB-FO-IO-CH16

SM/MM

FC/ST/SC

16

18dB

25km

Note:
• The Optical Power Budget data fit Mulit-mode(62.5/125 μm),Single-Mode(9/125 μm).
• When using 50/125 μm multimode fiber, subtract 3 dB from the optical power budget.
• Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
• Maximum transmission distance is also limited by fiber bandwidth.
• Power adapter is manufactured by third party and is supplied with fitted screw-terminal output cables.Power adapter included (for standalone) US, European, UK or Australian power plug.
• Please feel free to consult factory for any special requirement and customization.

• Due to continuous improvement, all fiber optic transmission systems and video over fiber product specifications are subject to change without further notice.
