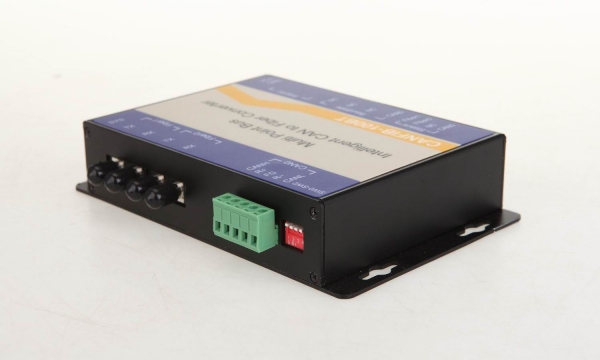

Configurable CAN to Multi-drop Bus Fiber Optic(FO) Converter
Description:
The FO-FIB-100BT CAN bus to fiber optic switch provide an optical Multi-drop bus or star network connection for CAN bus data interfaces on one or two, multi mode or single mode optical fibers. The CAN bus fiber optic switch has 1 CAN port and 2 fiber optic ports, CAN port is configurable via software.The CAN bus series units support both CAN 1.0 and CAN 2.0B CAN standards and are transparent to all high level protocols.The converter adopts the latest technology int world, so it can support very high baud rate,very long distance,very complex networks.
Product Features and Benefits:
Up to 1Mbps data rate(20km when it’s 1MB,New technology)Up to 6500 frames/second,with 1000 frames bufferingConfigurable CAN bus InterfaceMulti mode and single modeWith bufferingSingle fiber solution supported5 years warranty
Other Specifications:
|
Data |
|
|
Data Formats |
CAN1.0 ,CAN2.0 ,Device Net |
|
CAN Data Rate |
0-1Mbps |
|
Bit Error Rate |
<1 x 10-12 |
|
Connectors |
|
|
Data |
Screw Block Terminal |
|
Fiber |
ST, SC or FC (ST fitted as standard) |
|
Environmental |
|
|
Operating Temperature |
-30C---+70C |
|
Storage Temperature |
-40C---+90C |
|
Operating Humidity |
0-95% |
|
MTBF |
>100,000 Hours |
|
Optical |
|
|
Fiber |
Multi mode or single mode |
|
Wavelength |
850nm/1310nm |
|
Number of fibers |
8 or 4(WDM,Bi-Di) (2TX+2RX) |
|
Power |
|
|
Power Input |
+9-+40V DC |
|
Mechanical |
|
|
Dimensions |
156(W)×108(D)×33.6(H)mm Wall mount |
Ordering Information:
|
Model Number |
Description |
Port No. |
Fiber Mode |
Fiber Connector |
|
HFD-FO-CAN-P1M |
Fiber Optic Converter,Point to Point Link, Single Fiber(BI-DI), 2km,DIN Rail Mount |
1 CAN +1 FO |
Multi Mode |
ST/SC/FC |
|
HFD-FO-CAN-P2M |
Fiber Optic Converter,Point to Point Link, Dual Fiber, 2km,DIN Rail Mount |
1 CAN+1TX+1RX |
Multi Mode |
ST/SC/FC |
|
HFD-FO-CAN-P1S |
Fiber Optic Converter,Point to Point Link, Single Fiber(BI-DI), 20km |
1 CAN +1 FO |
Single Mode |
ST/SC/FC |
|
HFD-FO-CAN-P2S |
Fiber Optic Converter,Point to Point Link, Dual Fiber, 20km |
1 CAN+1TX+1RX |
Single Mode |
ST/SC/FC |
|
FO-FIB-100PT |
Configurable Fiber Optic Converter, Point to Point Link,Wall Mount |
1CAN+1TX+1RX |
Single Mode |
ST/SC/FC |
|
FO-FIB-100BT |
Configurable Fiber Optic Converter, Multi Drop Link,Wall Mount |
1CAN+2TX+2RX |
Single Mode |
ST/SC/FC |
|
FO-FIB-MIXED |
Configurable CAN Fiber Optic Switch, Point to point,Multi-drop,Star,Tree, Wall Mount |
2 CAN+2TX+2RX |
Single Mode |
ST/SC/FC |
|
SW-400T |
4 Port Configurable CAN BUS Switch, Wall Mount |
4 CAN |
||
|
BRIGE-200T |
Configurable CAN TO CAN Bridge |
2 CAN |
||
|
CANET-I |
1 Port CAN to Ethernet Converter |
1 CAN+1 TCP |
||
|
CANET-II |
2 Port CAN to Ethernet Converter |
2 CAN+1 TCP |
||
|
CAN-USB-I |
1 Port CAN to USB Converter |
1 CAN+1 USB |
||
|
CAN-USB-II |
2 Port CAN to USB Converter |
2 CAN+1 USB |
||
|
CAN-PCI-5001 |
1 Port CAN PCI Card |
1 CAN+1 PCI |
||
|
CAN-PCI-5002 |
2 Port CAN PCI Card |
2 CAN+1 PCI |
||
|
CAN-232 |
CAN to RS-232 Converter |
1 CAN+1RS232 |
||
|
CAN-485 |
CAN to RS-485 Converter |
1 CAN+1RS485 |
