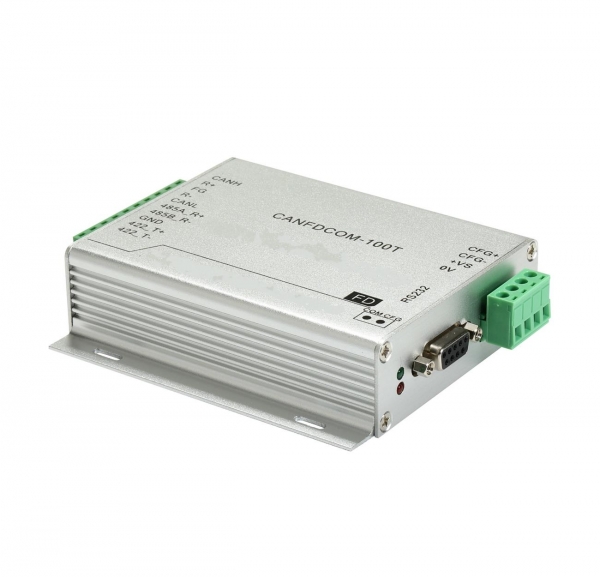

CAN FD to Serial(RS-232/485/422) Converter
CANFD-COM-100T intelligent protocol converter can quickly connect RS-232/485/422 communication equipment to CAN (FD) fieldbus. The converter supports 1200-921600bps serial port baud rate and 5k~5Mbps CAN (FD) bus communication rate. The converter supports three conversion modes: transparent conversion, transparent label conversion and format conversion. CANFD-COM-100T converter provides configuration software, which can flexibly set the operation parameters of CANFD-COM-100T.
Product Feature and Benefits:
- 32-bit 400M high-speed processor, embedded with real-time operating system and adaptive flow control algorithm, is suitable for the system with strict real-time requirements.
- The port has queue buffering to ensure the frame integrity of all applications from low speed to high speed.
- The configuration methods of CAN FD to serial port, CAN FD bridge, CAN FD switch, CAN FD to optical (point-to-point), CAN FD to optical (bus type), CAN FD and optical hybrid switch are completely unified. Customers can switch between these products seamlessly.
- 32-bit 400m high-speed ARM processor with embedded real-time operating system
- Two way data communication between CAN (FD) and RS-232/485/422 is realized
- It supports CAN 2.0A and CAN 2.0B protocols and conforms to ISO-119898
- Integrated 1-way CAN (FD) communication interface, supporting user-defined communication baud rate of 5K-5Mbps
- It integrates 1-way 3-wire RS-232 interface, 1-way 2-wire RS-485 interface and 1-way 4-wire RS-422 interface. The communication rate can be set between 1200-921600bps
- Three data conversion modes are provided: transparent conversion, transparent label conversion and format conversion
- CAN (FD) - bus circuit adopts DC2500v electrical isolation
- Wide voltage working range: 9-40V DC (surge,over-current, reverse connection protection)
- Industrial temperature range: - 40 ℃～ + 85 ℃
- Working power: Less than 2W
- Aluminum shell size: 105mm * 82mm * 28mm
Ordering Information:
|
Model Number |
Description |
Fiber No. |
Fiber Mode |
Fiber Connector |
|
HFD-FO-FD-P1M |
Point to Point Link,Single Fiber(BI-DI), 2km, DIN Rail mount |
1 |
Multi Mode |
ST/SC/FC |
|
HFD-FO-FD-P2M |
Point to Point Link,Dual Fiber, 2km, DIN Rail mount |
2 |
Multi Mode |
ST/SC/FC |
|
HFD-FO-FD-P1S |
Point to Point Link,Single Fiber(BI-DI), 20km, DIN Rail mount |
1 |
Single Mode |
ST/SC/FC |
|
HFD-FO-FD-P2S |
Point to Point Link,Dual Fiber, 20km, DIN Rail mount |
2 |
Single Mode |
ST/SC/FC |
|
CAN-FD-FIB-100PT-P1M |
Point to Point Link,Single Fiber(BI-DI), 2km, Wall or rack mount |
1 |
Multi Mode |
ST/SC/FC |
|
CAN-FD-FIB-100PT-P2M |
Point to Point Link,Dual Fiber, 2km, Wall or rack mount |
2 |
Multi Mode |
ST/SC/FC |
|
CAN-FD-FIB-100PT-P1S |
Point to Point Link,Single Fiber(BI-DI), 20km, Wall or rack mount |
1 |
Single Mode |
ST/SC/FC |
|
CAN-FD-FIB-100PT-P2S |
Point to Point Link,Dual Fiber, 20km, Wall or rack mount |
2 |
Single Mode |
ST/SC/FC |
|
CAN-FD-100BT-M2M |
Multi-drop Link,Dual Fiber(BI-DI), 2km |
2 |
Multi Mode |
ST/SC/FC |
|
CAN-FD-100BT-M4M |
Multi-drop Link,4 Fiber, 2km |
4 |
Multi Mode |
ST/SC/FC |
|
CAN-FD-100BT-M2S |
Multi-drop Link,Dual Fiber(BI-DI), 20km |
2 |
Single Mode |
ST/SC/FC |
|
CAN-FD-100BT-M4S |
Multi-drop Link,4 Fiber, 20km |
4 |
Single Mode |
ST/SC/FC |
|
CAN-FD-FIB-MIXED-P1M |
CANFD Fiber Optic Switch, 2 CAN+2 Fiber |
2 |
Multi Mode |
ST/SC/FC |
|
CANFD-FIB-MIXED-P2M |
CANFD Fiber Optic Switch, 2 CAN+4 Fiber |
4 |
Multi Mode |
ST/SC/FC |
|
CANFD-FIB-MIXED-P1S |
CANFD Fiber Optic Switch, 2 CAN+2 Fiber |
2 |
Single Mode |
ST/SC/FC |
|
CANFD-FIB-MIXED-P2S |
CANFD Fiber Optic Switch, 2 CAN+4 Fiber |
4 |
Single Mode |
ST/SC/FC |
|
CANFD-Bridge-200T |
CAN FD to CAN Bus Bridge |
N/A |
N/A |
N/A |
|
CANFD-SW-400T |
CAN FD Switch |
N/A |
N/A |
N/A |
|
CANFD-COM-100T |
CAN FD to RS-232/485/422 Converter |
N/A |
N/A |
N/A |
|
CANFD-USB-100T |
CAN FD to USB Converter, 1 channel |
N/A |
N/A |
N/A |
|
CANFD-USB-200T |
CAN FD to USB Converter, 2 channels |
N/A |
N/A |
N/A |
|
CANFD-NET-100T |
CAN FD to Ethernet Converter 1 channel |
N/A |
N/A |
N/A |
|
CANFD-NET-200T |
CAN FD to Ethernet Converter 2 channels |
N/A |
N/A |
N/A |
