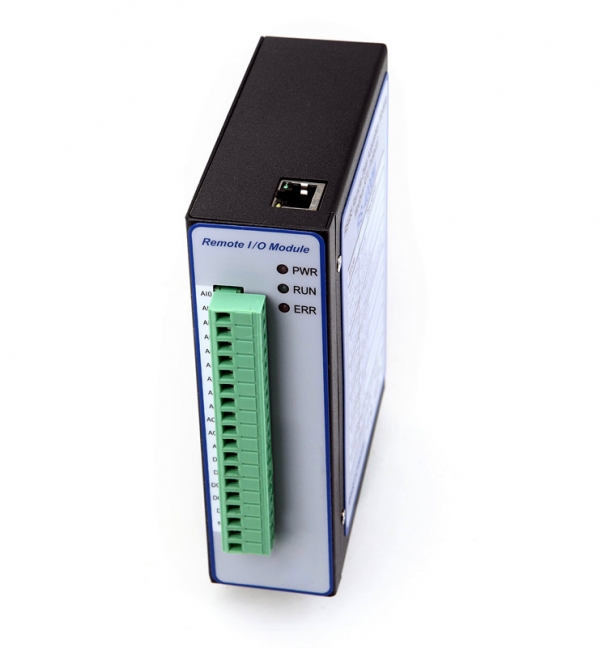

Ethernet I/O Module with 12 bit 4xAnalog Output

Modbus TCP Data Acquisition I/O Module(12 bit 4 AI)

Product Introduction (NET-6000M Series)

NET-6000M Ethernet-based data acquisition and control modules provide I/O, data acquisitions, and networking in one module to build a cost effective, distributed monitoring and control solution for a wide variety of applications. With Ethernet-based technology, NET-6000M series modules build up a cost-effective DA&C system for building automation, environmental monitoring, and manufacturing applications. Modbus has become a standard communication, and is now the most commonly available means of connecting industrial. This makes the NET-6000M series perfect for integration with HMI, SCADA, PLC and other software systems.

Product feature and benefits:

  • 32 bits & 120M high speed CPU, the real time embedded OS.
  • Power or dual power(Analogue Modules): Independent isolation
  • Surge protection: 15KV
  • The analogue input: Magnetic coupling isolation and protection.
  • The input voltage can be positive and negative, each channel has TVS and ESD protection.
  • The measuring range can be shifted by software.
  • The single end and differential can be shifted by software. Single end can be changed to 16 channels by software.
  • The ID and baud rate can be adjusted by rotary button directly.
  • Enclosure: shielded metal
  • The differential sampling frequency can reach 50Hz/channel

Hardware Specification:

System
CPU 32-bit 120MIPS CPU
Operation System Real-Time
Watchdog Yes
Communication RS-6000M CAN-6000T NET-6000M
RS485 CAN

Ethernet

10/100 Base-TX

LED Display
Power Indicator Red
Run Indicator Green
Error Indicator Red
Link Indicator Green
Act Indicator Yellow
Mechanical

Dimensions

(W x H x D)(mm)

140*110*40
Installation DIN-Rail mounting
Environment
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Power Requirements
Power Input +9V~30V DC
Power Consumption <3W

I/O Specification:

Model NET-6031M NET-6032M
Analog Output
Output Channels 4
Output Range

±10V, ±5V, 0V~5V, 0V~10V

0~20mA(Built-in 250ohm Resistor)

4~20mA(Built-in 250ohm Resistor)

Resolution 12-bit 16-bit
Accuracy ±0.1% ±0.01%
Max Current Load Resistance

Internal power +15 V: 500 Ω.

External power +24 V: 1000 Ω.

Isolation 2500V
Protection

Built-in TVS/ESD Protection

±4 kV Contact for each terminal

Ordering Information:

(NET-6000M Series Modbus TCP Protocol)

Model Description
Digital I/O
NET-6011M Ethernet Remote I/O Module with16-ch DI
NET-6012M Ethernet Remote I/O Module with16-ch DO
NET-6013M Ethernet Remote I/O Module with 8-ch DI and 8-ch DO
Relay Output
NET-6014M Ethernet Remote I/O Module with 5-ch Relay(Form A)
NET-6015M Ethernet Remote I/O Module with 5-ch Relay(3-ch Form A, 2-ch Form C)
Analog Input
NET-6021M Ethernet Remote I/O Module with 12bit 16-ch Single End AI or 8-ch differential AI
NET-6022M Ethernet Remote I/O Module with 16bit 16-ch Single End AI or 8-ch differential AI
Analog Output
NET-6031M Ethernet Remote I/O Module with 12bit 4-ch AO
NET-6032M Ethernet Remote I/O Module with 16bit 4-ch AO
RTD
NET-6041M Ethernet Remote I/O Module with 5-ch RTD
Thermocouple
NET-6042M Ethernet Remote I/O Module with 5-ch TC
Mixed
NET-6088 Ethernet Remote I/O Module with 16bit 8-ch Single End AI or 4-ch differential AI, 12bit 4-ch AO, 2-ch DI, 2-ch DO
