Ultrasonic Homogenizer|Sonicator|Disruptor|Disperser-1000W(BEM-1000D with LCD Screen)

Ultrasonic Homogenizer|Sonicator|Disruptor|Disperser-1000W(BEM-1000D  with LCD Screen)

Ultrasonic Homogenizer|Sonicator|Disruptor|Disperser-BEM-1000D(LCD Screen)



Product Description:

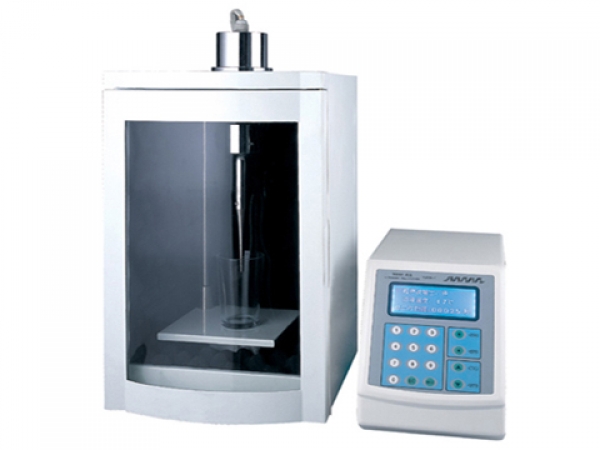

The BEM-1000D Ultrasonic homogenizer/sonicator/crusher/disperser(LCD Screen) is a multifunctional and multipurpose instrument for ultrasonic processing by cavitation in liquid material. It can be used for a variety of plants and animals, bacteria, viruses, cells and the organization of broken, at the same time can be used to emulsify, separation, scattered, cracking, homogenization, extraction, defoaming, cleaning, nanometer material preparation, graphene dispersion and chemical reactions, etc.



Product Features:

1. Large LCD screen Display, friendly human-machine interface.
2. 50 groups of experimental data can be set and stored, safe and convenient.
3. The ultrasonic power can be adjusted continuously, and the best experimental conditions can be explored.
4. Efficient and durable titanium alloy probe, reliable and accurate.
5. The program has over-temperature/delay/fault protection settings and alarm system,which can protect the test samples to the maximum extent.
6. RS232 Interface is optional, which can support the data transmission between the PC and PLC to realize the remote control.
7. We provide the Sound-proof Chamber for standard configuration with perfect transportation.



BEM's Benefits & Advantages:

The BEM series Ultrasonic Homogenizer is very efficient for the reduction of soft and hard particles. The homogenization is based on cavitation. Our Ultrasonic Cell disruptor/Crusher (LCD Screen) which used large LCD screen and upgraded the password protection system, is a multifunctional and multipurpose instrument for ultrasonic processing by cavitation in liquid material.

Another advantage is the exact control over the operational parameters influencing the cavitation. The ultrasonic power of our instrument can be adjusted continuously, and the best experimental conditions can be explored.We also have a program that has over-temperature/delay/fault protection settings and alarm system, which can protect the test samples to the maximum extent. We provide the Sound-proof Box for standard configuration with perfect transportation.



Application field:

The instrument is widely used in the fields of biology, microbiology, physics, zoology, agronomy, pharmacy, petroleum, etc. Also suitable for sample preparation in the chemical, medical, archaeological, address, marine and other fields.It also can be used in Nanotechnology research such as the dispersion of nanomaterials (nanotubes, graphene, silica, etc.); emulsification, homogenization and fragmentation of nano-materials such as carbon nanotubes, graphene and other materials, homogeneous soil, rock samples, non-ferrous metals, rare earths and other particles.Lysis, disruption, leaching, extraction of DNA, protein extraction from animal and plant cells, pruning DNA/RNA, chromatin immunoprecipitation technology for cells, viruses, spores and other cell structures.



Technical Specification:



Model

BEM-150D

BEM-650D

BEM -900D

BEM -1000D

BEM -1500D

BEM -1800D

BEM -3000D

Frequency

20-25

20-25

20-25

20-25

19-21

19-21

19-21

KHz

Power(W)

0-150

0-650

0-900W

10-1000

1500

20-1800

300-3000

Crushing Capacity

0.1-50

0.1-150

0.1-500

0.1-600

20-1000

10-1500

100-5000

ml

Input &Display

LCD Screen

LCD Screen

LCD Screen

LCD Screen

LCD Screen

LCD Screen

LCD Screen

Login Password

Yes

Yes

Yes

Yes

Yes

Yes

Yes

 Probemm

Φ6

Φ6

Φ6

Φ6 or 10

Φ22

Φ20 or 22

Φ35 or 50

Optional Probemm

Φ238

Φ2381012

Φ2381012

Φ238101215

Φ10152025

Φ10152025

Φ152025354050

Sample Temperature Protection(℃)

0-100

0-100

0-100

0-100

0-100

0-100

0-100

Security System

Self-diagnosis function, automatic error correction, overload, overtemperature protection ,etc.



Probe Option:

Probe Model

Inch

Frequency

Power Range

Crushing Capacity

Φ2

1/12″

20-25KHz

min-150W

0.2-5ml

Φ3

1/8″

20-25KHz

min-250W

3-10ml

Φ6

1/4″

20-25KHz

20-400W

10-100ml

Φ10

5/12″

20-25KHz

100-600W

30-300ml

Φ12

1/2″

20-25KHz

200-900W

50-500ml

Φ15

5/8″

20-25KHz

300-1000W

100-600ml

Φ20

4/5″

19.5-20.5KHz

400-1100W

100-1000ml

Φ22

5/6″

19.5-20.5KHz

400-1100W

200-1000ml

Φ25

1″

19.5-20.5KHz

800-1500W

500-1200ml
