One or 2 Channel Isolated CAN Bus PCI Interface Cards
Introduction:

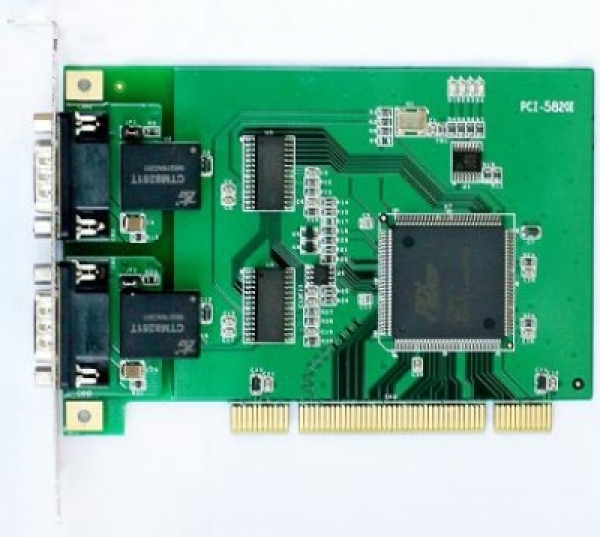

The PCI-CAN card is a Controller Area Network (CAN) interface card. It supports one or dual-port CAN's interface that can run independently or bridged at the same time. The built-in CAN controller of this card is Philips SJA1000, which provides bus arbitration and error detection with auto correction and re-transmission function.
Features of Our CAN PCI Card：
- Passive CAN Interface for PCI slots
- One, two CAN channels with Controller NXP SJA1000
- Baud rates up to 1MBaud, 82C251 Transceiver
- CAN is connected via a 9-pin SUB-D as defined by the CiA DS102-1 standard
- CAN 2.0A (11-bit ID standard frames) and 2.0B (29-bit ID extended frames)
- Development kits for Windows 2000/XP/Vista
- Examples of Visual Basic 6.0, Visual C++ 6.0, C++builder 6.0, Delphi7.0, Labview are available
- Max data flow 3000 fps (extend frame)
- Operating temperature: -25 to +85C
Application of Our CAN PCI Card:
CAN-bus product development, CAN-bus data analyzer, CAN-bus master/slave network, CAN-bus Teaching applications,CAN-bus gateway/bridge,CAN-bus industrial control & automation,Smart building system, Data transfer between different CAN-bus networks.
Ordering Information:
|
Model Number |
Description |
Port No. |
Fiber Mode |
Fiber Connector |
|
HFD-FO-CAN-P1M |
Fiber Optic Converter,Point to Point Link, Single Fiber(BI-DI), 2km,DIN Rail Mount |
1 CAN +1 FO |
Multi Mode |
ST/SC/FC |
|
HFD-FO-CAN-P2M |
Fiber Optic Converter,Point to Point Link, Dual Fiber, 2km,DIN Rail Mount |
1 CAN+1TX+1RX |
Multi Mode |
ST/SC/FC |
|
HFD-FO-CAN-P1S |
Fiber Optic Converter,Point to Point Link, Single Fiber(BI-DI), 20km |
1 CAN +1 FO |
Single Mode |
ST/SC/FC |
|
HFD-FO-CAN-P2S |
Fiber Optic Converter,Point to Point Link, Dual Fiber, 20km |
1 CAN+1TX+1RX |
Single Mode |
ST/SC/FC |
|
FO-FIB-100PT |
Configurable Fiber Optic Converter, Point to Point Link,Wall Mount |
1CAN+1TX+1RX |
Single Mode |
ST/SC/FC |
|
FO-FIB-100BT |
Configurable Fiber Optic Converter, Multi Drop bus Link,Wall Mount |
1CAN+2TX+2RX |
Single Mode |
ST/SC/FC |
|
FO-FIB-MIXED |
Configurable CAN Fiber Optic Switch, Point to point,Multi-drop,Star,Tree, Wall Mount |
2CAN+FO(2TX+2RX) |
Single Mode |
ST/SC/FC |
|
SW-400T |
4 Port Configurable CAN BUS Switch, Wall Mount |
4 CAN |
||
|
BRIGE-200T |
Configurable CAN TO CAN Bridge |
2 CAN |
||
|
CANET-I |
1 Port CAN to Ethernet Converter |
1 CAN+1 TCP |
||
|
CANET-II |
2 Port CAN to Ethernet Converter |
2 CAN+1 TCP |
||
|
CAN-USB-I |
1 Port CAN to USB Converter |
1 CAN+1 USB |
||
|
CAN-USB-II |
2 Port CAN to USB Converter |
2 CAN+1 USB |
||
|
CAN-PCI-5001 |
1 Port CAN PCI Card |
1 CAN+1 PCI |
||
|
CAN-PCI-5002 |
2 Port CAN PCI Card |
2 CAN+1 PCI |
||
|
CAN-232 |
CAN to RS-232 Converter |
1 CAN+1RS232 |
||
|
CAN-485 |
CAN to RS-485 Converter |
1 CAN+1RS485 |
